• Model NO.：HVS-1000Z
• Testing Before Delivery：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. HVS-1000Z Testing Before Delivery Yes Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China Production Capacity 300 Sets/Month

Product Description

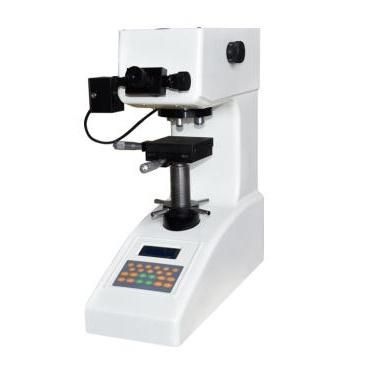

Digital Display Automatic Micro Vickers Hardness Tester for Metal Hardness Test in Laboratory HVS-1000Z

  Application range:
Nitriding layer, ceramics, steel, non-ferrous metals; sheet, metal sheet, electroplating layer, micro test piece; depth measurement of carbide layer, decarburization layer and quench hardening layer; suitable for parallel planes, micro parts and ultra-thin Precision Vickers measurement of parts.


Main features:
Friction-free spindle, high test force accuracy; high-precision optical measuring system, precise coordinate test bench; automatic test process, simple operation, the position switch of the observation-test-measurement of the hardness tester is completed by the automatic turret, no human operation Error; printer prints hardness test results; optional CCD camera device and image processing system; optional Knoop indenter for Knoop hardness test; accuracy conforms to GB/T4340.2 ISO 6507-2 and American ASTM E384.


Main technical specifications:


Measuring range	5-3000HV
Test force	0.09807, 0.2454, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N(10,25,50,100,200,300,500,1000kgf)
Measurement system magnification	400x, 100x
Minimum detection unit	0.5μm
Maximum allowable height of sample	90mm
Distance from center of indenter to machine wall	95mm
Power supply	AC220V, 50/60Hz
Dimensions	340*160*378mm
Weight	about 40kg
Standard configuration	coordinate test bench*1; thin shaft test bench*1; thin plate test bench*1; flat pliers*1; diamond pyramid indenter*1; standard microhardness block*2;
Optional configuration	Knoop pressure head; CCD image processing system
