• Model NO.：HVS-30Z
• Test force retention time (s)：1~99
• After-sale Customer Service：Yes
• Testing Before Delivery：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. HVS-30Z Test force retention time (s) 1~99 After-sale Customer Service Yes Testing Before Delivery Yes Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China Production Capacity 300 Sets/Month

Product Description

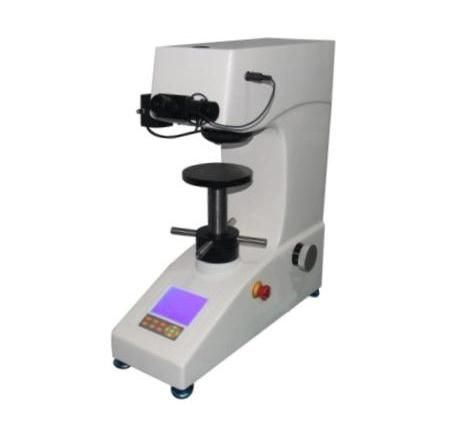

HVS-30Z Metal Automatic Turret Digital Display Micro Vickers Hardness Tester Price


The digital display automatic turret type Vickers hardness tester can meet the basic Vickers hardness tester test requirements. The upgraded digital display micrometer eyepiece can directly read the measurement length, so that the measured value can be obtained more quickly and accurately. The tower can automatically switch the eyepiece and the indenter to avoid damage to the instrument caused by manual error, and also greatly improve efficiency.


Main Function and Feature:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;
2. The large LCD screen of the industrial display screen can display the test method, test force, measured indentation length, hardness value, test force retention time, measurement times and can enter the year, month, date, test results and data processing, etc.;
3. The cast aluminum shell is formed at one time, the structure is stable and does not deform, the car paint grade is high, the scratch resistance is strong, and it is still bright as new after years of use;
4. Our company has the ability to research, develop, design, produce and process by ourselves, and provide parts replacement and maintenance upgrade services for our machines for life;
5. HVS-30Z model can measure the actual length and directly confirm the hardness value;
6. The HVS-30Z model can realize: the position switch of observation-test-measurement is completed by the automatic turret;
7. The large LCD screen is optional; the large LCD screen is convenient for observation, the test conditions and the test process are intuitive and clear;
8. Optional built-in printer; direct printing of test results and test data;

Main purpose and scope of application:
1. Steel, non-ferrous metals, metal foil, cemented carbide, metal sheet, microstructure, carbonization;
2. Carburizing, nitriding and decarburizing layer, surface hardening layer, electroplating layer, coating, heat treatment;
3. Glass, wafers, ceramic materials;

Technical Parameter:

Program	Data
Vickers hardness scale	HV1,HV3,HV5,HV10,HV20,HV30
Display	5-digit hardness value, 4-digit diagonal length (D1, D2), Hold time, number of tests, average value, standard deviation, return
Test force(Kgf)	1.0Kgf(9.8N),3.0Kgf(29.4N),5.0Kgf(49.0N), 10Kgf(98.0N),20Kgf(196N),30Kgf(294N)
Load control	Automatic (load/hold/unload)
Test force retention time (s)	1~99
Optical system	Objective lens: 10×, 20× Eyepiece magnification: 10× Total magnification (μm): 100×, 200× Measuring range (μm): 400 Resolution (μm): 0.125
Hardness measurement range	(5-3000)HV
XY test bench (optional)	Size (mm): 100×100 Stroke range (mm): 25×25 Minimum reading (mm): 0.01
Maximum height of specimen (mm)	165
Maximum width of test piece (mm)	130 (The distance from the center line of the indenter to the wall of the machine)
Data output	Reserved built-in micro printer interface, (RS232 serial interface) optional installation
Power supply	AC220V/50HZ
Dimension(mm)	585×200×630
Weight(kg)	42

Standard configuration:

Main Host	1 pcs
Weight	3 pcs
Large and medium "V" type test bench	1 each
Level adjustment screw	4 pcs
Power supply	1 pcs
10X digital display micrometer eyepiece	1 pcs
Vickers hardness block	2 pcs
Connecting line RS232	1 pcs
Spare fuse 2A	2 pcs
Printer paper	1 pcs
Product certification	1 pcs
Instruction Manual	1 pcs

Remarks: Can choose built-in printer, one-key printing of measurement data, or upload to computer.
Can choose hardness tester measurement software to eliminate human error, computer operation, improve efficiency, and more precise accuracy.
