• Model NO.：HZJQ-1B
• Weight：0-100Kg
• Power Source：AC220V
• Usage：Insulation Oil
• Voltage：220V
• Power(W)：200W
• Boosting Interval：5 Min(Adjustable)
• Certification：ISO Ce IEC
• Supply Voltage：AC100V~220V 50Hz±1 Hz
• Voltage Raising Speed：0.5~5 Kv,S (Adjustable)
• Dimension(L*W*H)：47*39*42cm
• After-Sales Service Provided：Overseas Third-Party Support Available
• Voltage Distortion Rate：< 3%

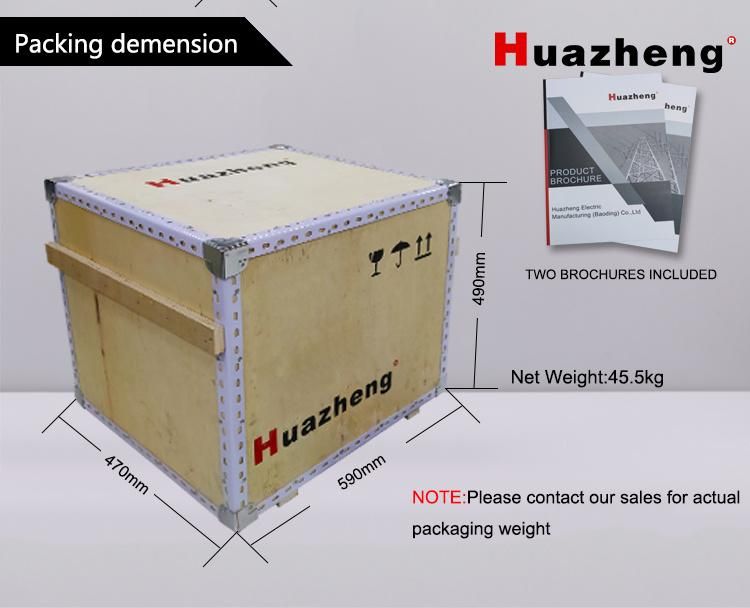

• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9030899090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZJQ-1B Weight 0-100Kg Power Source AC220V Usage Insulation Oil Voltage 220V Power(W) 200W Boosting Interval 5 Min(Adjustable) Certification ISO Ce IEC Supply Voltage AC100V~220V 50Hz±1 Hz Voltage Raising Speed 0.5~5 Kv/S (Adjustable) Dimension(L*W*H) 47*39*42cm After-Sales Service Provided Overseas Third-Party Support Available Voltage Distortion Rate < 3% Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9030899090 Production Capacity 100 PCS/Month

Product Description

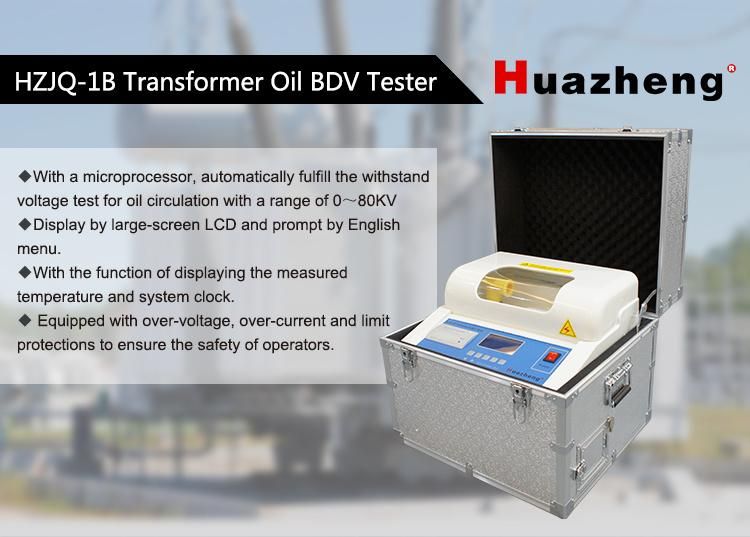

100kV Insulation Oil Breakdown BDV Tester/ Dielectric Strength Test Equipment
I.Introduction

Insulating oil dielectric strength tester is also known as oil breakdown voltage tester or oil BDV tester.
Break down voltage is measured by observing at what voltage, sparking string between two electrode
immersed in the oil, separated by specific gap. low value of BDV indicates presence of moisture content
and conducting substances in the oil.
In this kit, oil is kept in a pot in which one pair of electrodes are fixed with a gap of 2.5 mm (in some kitit 4mm) between  them.



II.Features

1.withstand voltage test in the range of 0 ~ 80KV.
2.Large-screen LCD.
3.Simple operation
4.Store 100 experimental results, and display the currentenvironment temperature and humidity.
5.The whole process easy to control.
6.With overvoltage, overcurrent, limiting protection, in order to ensure the safety ofoperators.
7.With a temperature measurement display function and system clock display.
8.Standard RS232 interface.

III.Parameter


Output Voltage	0~80KV (100KV need special design)
Applicable temperature	0ºC~45ºC
Voltage Raising Speed	0.5~5 KV/S (adjustable)
Applicable humidity	<90%RH  No condensation
RS232 interface	LCD Screen
Boosting Frequency	1~6 time(s)
HZ-381 Type	Single Oil Cup Structure
Measuring Accuracy	±3%
Dielectric Strength Tester	Oil Test Equipment
Certification	CE ISO
Oil Test Kit	Insulating Oil Tester
Standing Time	15min (adjustable)
Speed of Voltage Increase	0.5~5kva/s(adjustable)

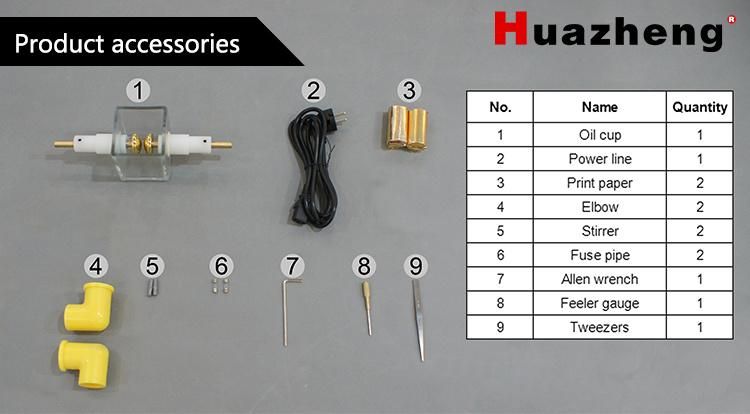

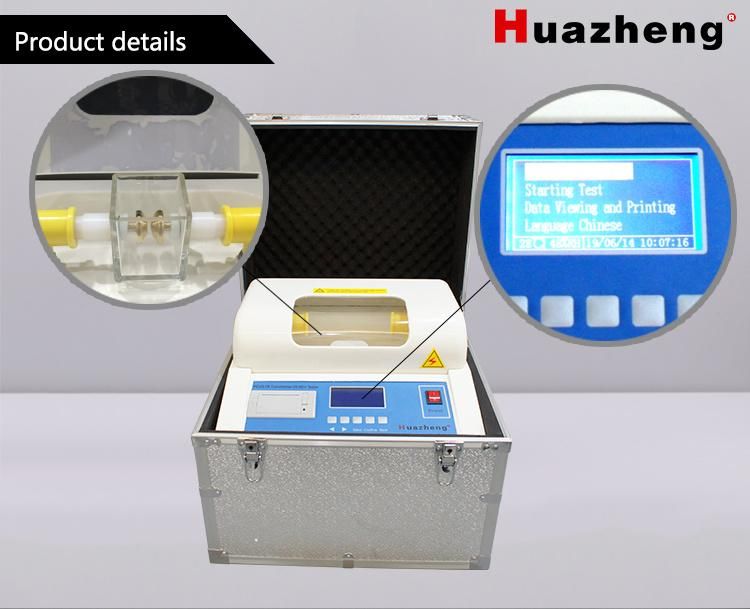

IV.Detailed Photos

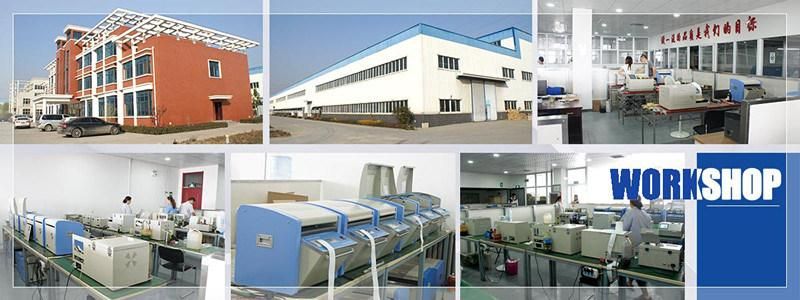

V.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

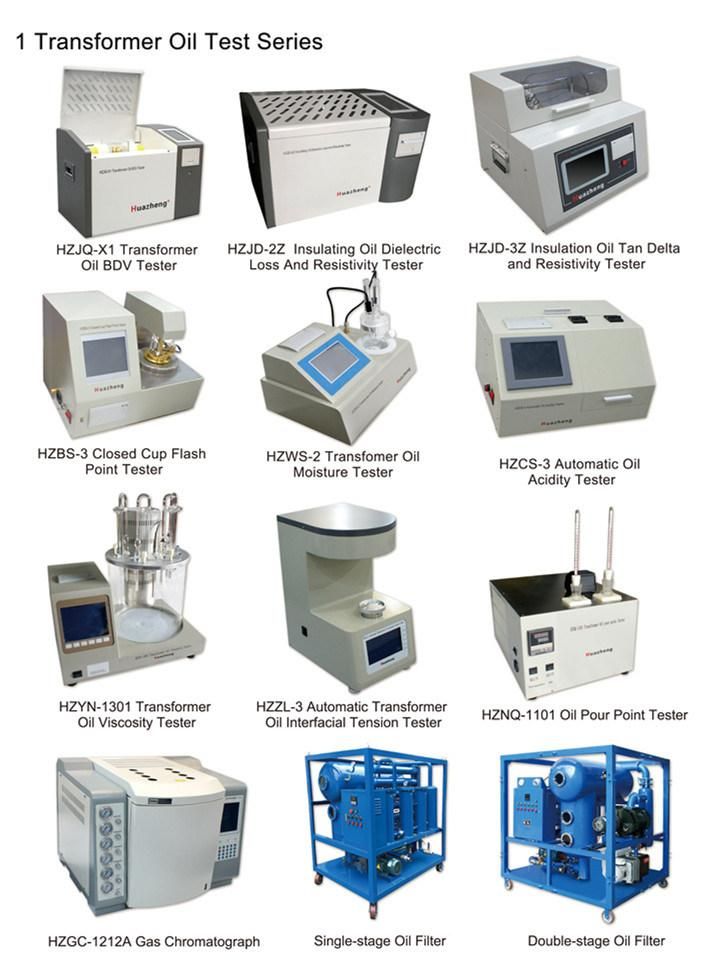

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.



VI.FAQ

1. Q: What is the language? After sale service? Warranty?
A.Yes,English version. After sale service. Warranty: 1 year.
2. Q: What is the highest voltage the instrument can test?
A: The instrument can test up to 100KV, OEM is also ok.
3. Q: Whether can communicate with computer , RS232? A: Yes, it can communicate with computer. It has RS232.
4. Q: Whether does it have battery or liquid ? Convinent to delivery?
A: It has a little Li-battey , no liquid, which does not influence the delivery.
5. Q: Does this instrument have the priter ? Automatically or by hand?
A: Yes, it has, you can set up whether to print the result automatically or by hand.
6. Q: How many times can it test once? How to get the result?
A: It can test 1-6 times (according to your requirement). Result is the average of testing
