• Model NO.：HZZD-102D
• Data Storage：60 Groups
• Language：English
• Operation Method：Automatic
• Touch Method：Resistive Touches Are More Precise
• Transport Package：Wooden Box with Foam Inside
• Specification：Can be customized
• Trademark：United Electrical
• Origin：Hubei, China
• HS Code：850431900

Basic Info.

Model NO. HZZD-102D Data Storage 60 Groups Language English Operation Method Automatic Touch Method Resistive Touches Are More Precise Transport Package Wooden Box with Foam Inside Specification Can be customized Trademark United Electrical Origin Hubei, China HS Code 850431900

Product Description

I.Application:

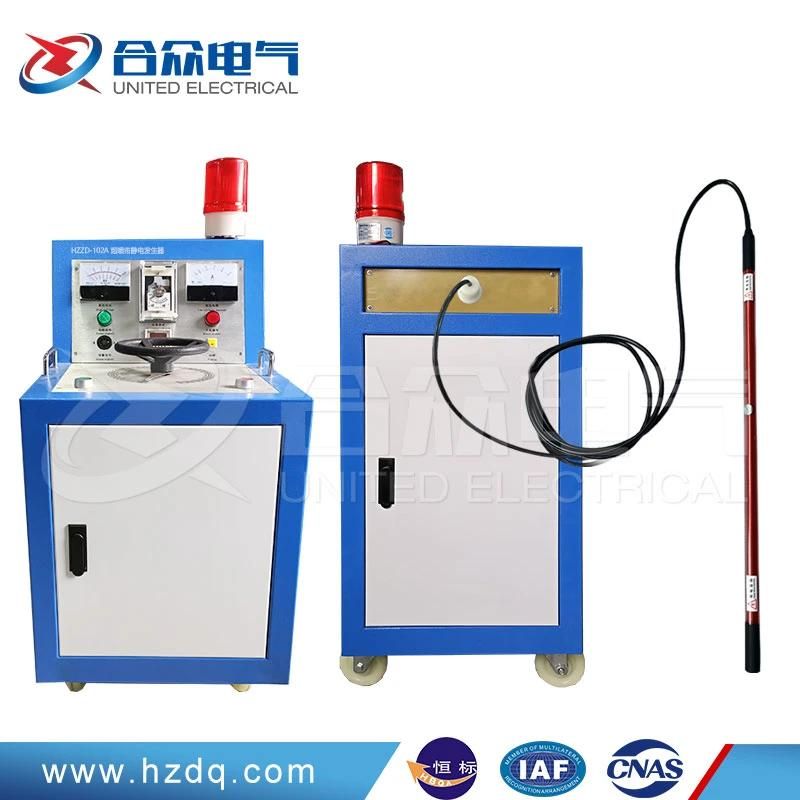

Based on the needs of our customers, Wuhan Hezhong has developed and designed a non-woven fabric electret electrostatic generator for mask production. This equipment can produce static electricity continuously. Its main function is to spray static electricity on the non-woven fabric of masks, so that the filtration efficiency of masks against staphylococcus aureus aerosol with an average particle diameter of (3 ± 0.3)um is not less than 95%.Melt-spraying electrostatic electret generator plays an indispensable role in mask production line.Filter principle of melt spraying fabric.The main material of melt-sprayed non-woven fabric is polypropylene, a kind of ultra-fine electrostatic fiber cloth, which can capture dust.The droplet containing pneumonia virus will be adsorbed on the surface of the non-woven fabric by static electricity when it is near the melt spraying.That's how the material keeps out germs.After the dust is captured by the ultra-fine electrostatic fiber, it is very difficult to be separated from the cleaning, and washing will also be destroyed by the electrostatic dust collection ability.So the mask can only be used once.Melt-sprayed non-woven fabric requires the addition of a small amount of material called electret, which is easily electrostatically charged. By applying a "corona discharge" to the material through an electrostatic electret device, the melt-sprayed non-woven fabric can be charged for a long time. Electret is a dielectric material that has the function of long-term charge storage. It has the advantages of high efficiency, low flow resistance, anti-bacteria and energy saving, etc. It can guarantee the physical collision barrier function of conventional filter materials and increase the electrostatic absorption effect.In treatment makes the fiber filter material with charge, combining with the characteristics of melt-blown superfine fiber density, therefore charged fibers formed a large number of electrodes, charged fiber can not only like a magnet to attract environment most of the charged particle, at the same time, it can be not part of the charged particle polarization, and some of the smaller particle size of pollutants, even the virus the nanoscale material can also be for electrostatic adsorption or charge repel cut off.

II.Features:
1. The instrument has high safety and comprehensive protection.
2. The instrument has good electrical performance, strong moisture-proof ability, no leakage, good performance and high precision.
3. The device can attach static electricity to the raw material of the mask, so that the filtration efficiency of the mask against the aureus aerosol with an average particle diameter of (3±0.3) is not less than 95%.
4. Using special high voltage power supply, digital control mode, all abnormal slow start, nanosecond arc response ability, to ensure the production line of melting spray without failure, all-day operation.
5. Small energy storage, discharge ignition will not cause damage to the non-woven fabric; The nanosecond arc response ensures that the power supply is quickly restarted within 20ms, resulting in a uniform electrification effect. High stability can make the ionization effect more stable.
6. It has the advantages of high efficiency, low flow resistance, anti-bacteria, energy saving, etc., which can guarantee the physical collision barrier function of conventional filter materials and increase the electrostatic adsorption.

III.Specification:

Model	HZZD-102D	HZZD-102B
Input voltage	AC220V	AC220V
Current	25A	50A
HV voltage	DC 70kV	DC 100kV
Capacity	5kVA	5kVA

 Company Profile:
Wuhan Hezhong Electric Equipment Manufacture Co., Ltd is a high-tech enterprise professionally engaged in R & D, manufacture and marketing of power testing products, instruments, power industry automation systems for 20 years.We export completed set to Korea, Singapore, Vietnam, India, Ecuador, Paraguay, Pakistan, Philippines, Russia, Italy, Austria, Portugal, Chile such as PD test system, impulse voltage generator, temperature rising test system, transformer comprehensive test system, cable fault detect system and varies of instruments for transformer, circuit breaker, switchgear, lightning arrestor, insulator, cable, battery,SF6 gas and so on.
