• Model NO.：GD-3536A
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Power Supply：AC(220±10%)V, 50Hz.
• Heating Device：Quartz Tube Furnace Heating, No Naked Fire
• Test Flame Applicator：It Applies The Test Flame Automatically.
• Thermometer：(-6~400)&Ordm
• Igniting Device：1.Ignition Source: Coal Gas 2.Lame Diameter Is 3.2
• Ambient Temperature：(-10-50)ºC
• Relative Humidity：≤85%
• Maximum Power Consumption：650W
• Transport Package：Wooden Case
• Specification：350mm*290mm*350mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

Basic Info.

Model NO. GD-3536A Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Power Supply AC(220±10%)V, 50Hz. Heating Device Quartz Tube Furnace Heating, No Naked Fire Test Flame Applicator It Applies The Test Flame Automatically. Thermometer (-6~400)&Ordm Igniting Device 1.Ignition Source: Coal Gas 2.Lame Diameter Is 3.2 Ambient Temperature (-10-50)ºC Relative Humidity ≤85% Maximum Power Consumption 650W Transport Package Wooden Case Specification 350mm*290mm*350mm Trademark GOLD Origin China Production Capacity 200units/Month

Product Description

ASTMD92 Large Touch Screen Automatic Electric Cleveland Open Cup Flash Point Tester/Oil Testing GD-3536A



Introduction:

This instrument is designed and made as per GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland

open cup method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester. It is applicable to all

petroleum products with flash points above 79ºC and below 400ºC except fuel oils.



Features:

I. Main technical features

1. This instrument adopts LCD screen to display and full English man-machine interface. It can preset expected flash point temperature, sample mark number, barometric pressure and other parameters.It has menu prompt and input guide.

2. It adopts simulation tracking to display the function curve of temperature rising and test time. It has the functions of English mis-operation prompt,test date,test time and other parameters.

3. Automatically calibrate the effect of atmospheric pressure to test and calculate the corrected value.

4. Differential coefficient detection.Automatically correct the system deviation.

5. Automatically open the lid,detect the flash point and print test data.The test arm automatically rise up and lower down.

6. Reasonable design, safe and convenient to operate.



II. Main technical specifications

1. Power supply:AC220(-10%~+5%)V, 50Hz

2. Flash point determination:Range:Ambient to 400ºC

                         Repeatability:≤8ºC

                         Reproducibility:≤17ºC

                         Accuracy:0.1ºC

3. Heating rate:Correspond with GB/T3536 and ASTM D92

4. Ignition mode:Electric ignition.

                Gas flame diameter is 3.2mm~4.8mm

5. Ambient temperature:(10~40)ºC

6. Relative humidity:≤80%

7. Maximum power consumption:400W

8. Dimension:410mm×360mm×310mm

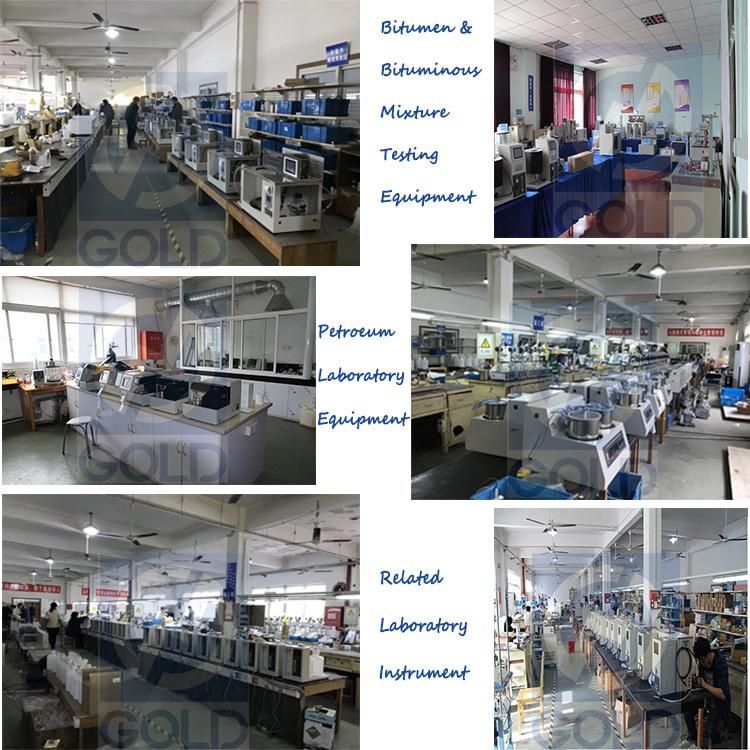

Workshop



Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer of Petroleum Products test kits

and electrical testing equipment in China.Our products are sold to most countries in the world and they are highly

popular because our good quality and after-sale service.

At present, there are more than 150 employees, of whom more than 70% are technical personnel with college degree or above.

With strong technical force and strong development, new products have been launched continuously.



Exhibition



We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya,

Nigeria, South Africa and other countries worldwide. And we have gained strong advantage and high reputation in international market.

After several years' development, our products have become high intelligent and wide coverage.
And our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument.



Packing

Goods are packed in veneer case, which is firm and safe for oversea shipment.


Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:

 http://chinainstrument.en.made-in-china.com

If you want to know more information...

Please leave a message below and click " SEND "

Thanks for your time and attention!



CHONGQING GOLD MECHANICAL&ELECTRICAL EQUIPMENT CO.,LTD.

Contact:Zoey Zhou

Moblie:+8615998955437
