• Pressure Range：1 Bar-6000 Bar
• Valve Diameter Range：DN15-DN400
• Testing Medium：Air,Nitrogen ,Water, Hydraulic Oil
• Certificate：ISO,CE
• Driven Mode：Air-Driven,Pneumatic
• Transport Package：1 Set,Case by Plywood Case
• Trademark：SUNCENTER
• Origin：China
• HS Code：903120
• Production Capacity：100 Sets,Month

Basic Info.

Pressure Range 1 Bar-6000 Bar Valve Diameter Range DN15-DN400 Testing Medium Air/Nitrogen /Water/ Hydraulic Oil Certificate ISO/CE Driven Mode Air-Driven/Pneumatic Transport Package 1 Set/Case by Plywood Case Trademark SUNCENTER Origin China HS Code 903120 Production Capacity 100 Sets/Month

Product Description

Suncenter Air-driven Computer Control Safety Valve Hydrostatic Pressure Test Bench

1 .Introduction
The safety valve test bench is a new type of pressure test device developed by our company for reference to GB/T 12242-2005 (pressure release device and performance test specification), which is used to adjust and test the setting pressure of the safety valve.


2, Function and features
Safety valve test bench is used for various safety valve setting pressure adjustment, the whole set pressure detection, discharge pressure detection, back seat pressure testing, assessment of its pressure safety performance etc.. ,

A. pressure range: 0-480 bar for option(gas pressure and water pressure)
B. test medium: air, nitrogen, water;
C. test valve diameter: DN15-DN400 for option
D. pressure control accuracy: less than 1%F.S;
E. pressure measurement accuracy: 0.4 pressure gauge (optional higher pressure level);
F. Clamping way: hydraulic cylinder clamping;
G. station interface type: screw and flange type
H. clamping force output range: 0-50 tons;
I. supply voltage: 50Hz -60Hz ,220V/380V for option
J:Size:1500×1200×900mm(machine) +1500×800×800mm(clamping device)

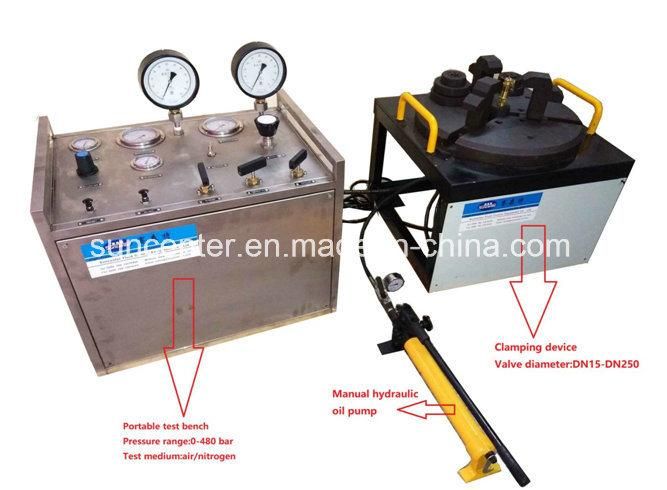

SVT40-DN250-MCP Model Portable manual control safety valve test bench
Here below is the video link for portable safety valve test bench:

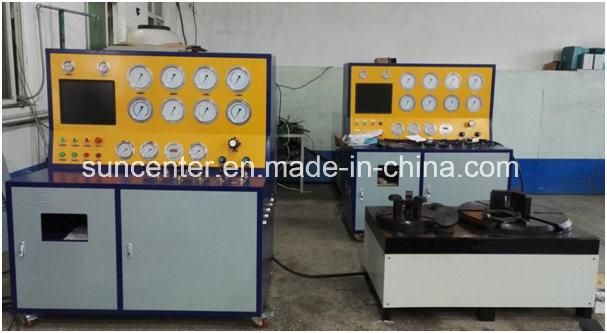

SVT40-DN400-MC model Manual+digital control model

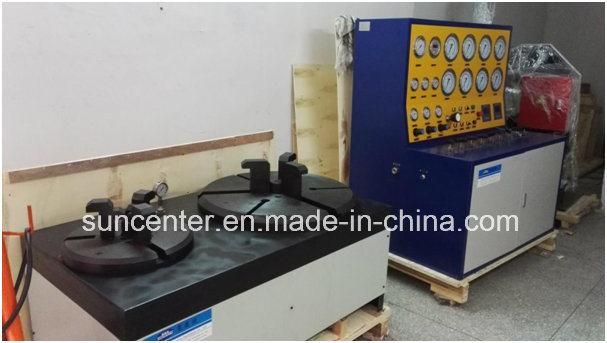

SVT40-DN400-CC computer control model











Dongguan Suncenter Fluid Control Equipment Co., Ltd is the member company of Suncenter Group, which is located in Dongguan city of Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field.

Our main products including:
High Pressure Booster Pumps (Air Driven Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)
High Pressure Systems (Gas/Liquid Booster Stations,FM200 filling machine, Tube Expanding Machine)
High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine,
Valve test bench,Impulse Testing Machine, etc.)

Product ApplicationOil Industry, Gas Industry, Chemical Industry, Fire Fighting, Research Institutions etc.
Our service
13 months' free warranty since the purchasing date and free technical support during lifetime
