X-ray Fluorescence Spectrometer / X-ray RoHS Analysis Testing Equipment
Dongguan Haida Equipment Co., Ltd.- Type：Optical Measuring Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Weight：0-100Kg
Base Info
- Model NO.：HD-Ux-220
- Power Source：AC220V
- Rated Power：350W
- Collimator：Φ2mm,Φ5mm
- Product Name：X-ray RoHS Analysis Tester
- Controller：Temi 880 LCD Touch Screen
- Transport Package：Strong Wooden Case
- Specification：ISO9001: 2008, CE
- Trademark：HAIDA
- Origin：Dongguan, China
- Production Capacity：150 Sets,Month
Description

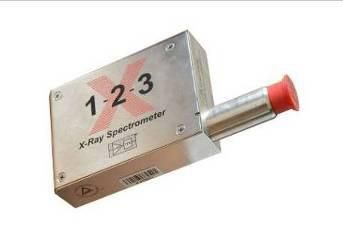

Detector system
Brand: AMPTEK
Be window thickness: 1mil (0.0254mm)
Best resolution rate: 145±5eV
System peak to background ratio: ≥ 6200/1
Energy response range: 1keV ~ 40keV

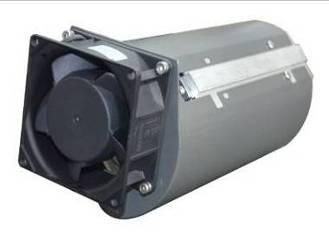

Recommend counting rate: 5000cps X ray tube
Voltage: 0 ~ 50 kV
Max. current: 1.0 mA
Max. power: 50 W
Filament voltage: 2.0V
Filament current: 1.7 A
Radiation out degree: 12°
Target material: Mo

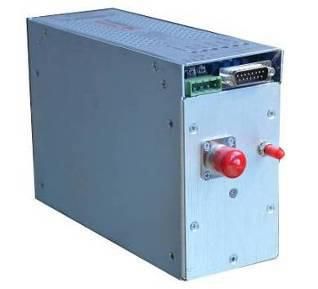

Be window thickness: 400um High voltage power supply
Input voltage: DC +24V±10%
Input current: 4.25A (max)
Output voltage: 0 -50KV & 1mA
Max power: 50W
Voltage regulation: 0.01% (From no load to full load)
Current regulation: 0.01% (From no load to full load)
Ripple ratio: Prior to the stable output voltage, ripple voltage
peak value is 0.25% of the highest output voltage.
8 hours stability: ≤0.05% Test platform
Test platform with fine-tuning device external of the instrument, combine with 1.3 million pixel HD CCD, which can easily position sample accurately to avoid inaccurate result. High resolution CCD
1.3 million pixel HD CCD camera can be able to observe the measuring area real time and take pictures for test report. Cooling system
High efficiency 3D cooling system improves the reliability and stability of instruments greatly.

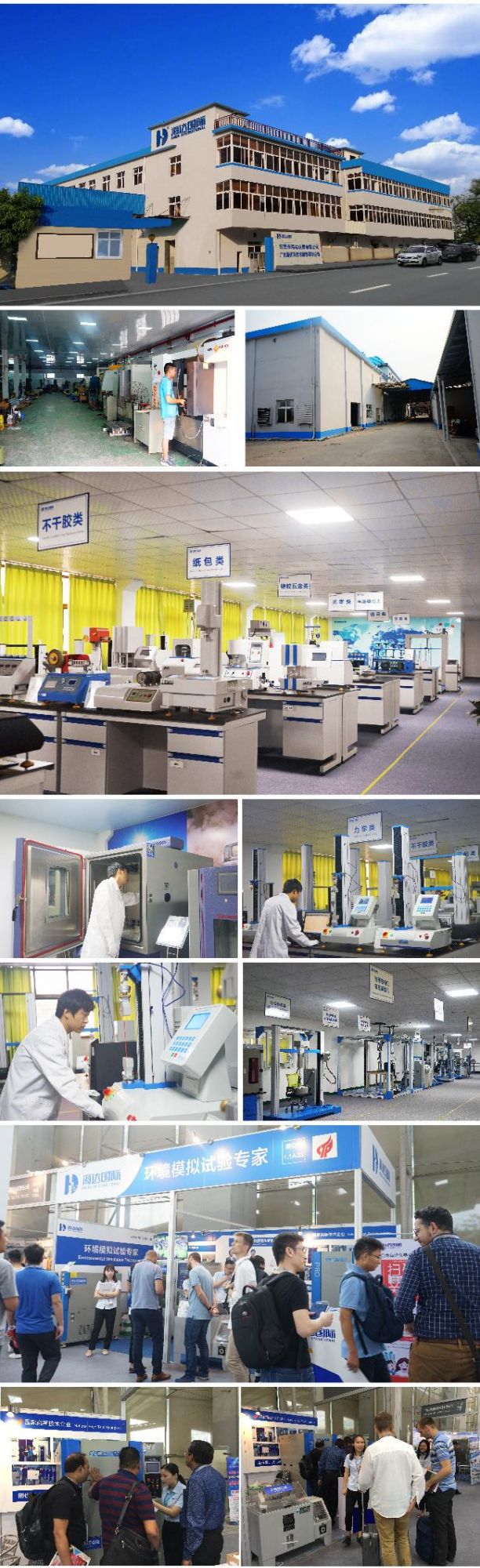

Company Introduction:
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

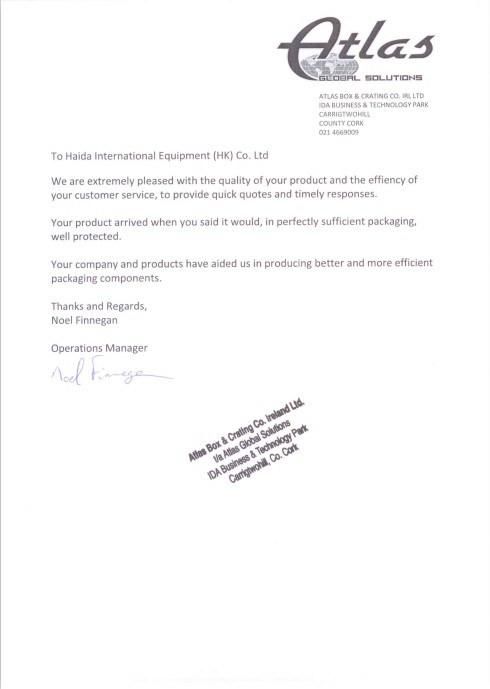

Customer Feedback:
FAQ:
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
