• Model NO.：WRS-2C
• The Minimum Value：0.1ºC
• Repeatability of Indication：When The Heating Rate Is 1.0ºC,Min,0.3ºC
• Linear Heating Rate Error：±10%
• Processing Power：3
• Capillary Size：Outside Diameterφ1.4mm
• Inside Diameter：φ1.0mm
• The Sample Height：3mm
• Transport Package：Standard Export Package
• Specification：Automatic lmage
• Trademark：WEST TUNE
• Origin：China
• HS Code：9031809090
• Production Capacity：1000units,Year

Basic Info.

Model NO. WRS-2C The Minimum Value 0.1ºC Repeatability of Indication When The Heating Rate Is 1.0ºC/Min,0.3ºC Linear Heating Rate Error ±10% Processing Power 3 Capillary Size Outside Diameterφ1.4mm Inside Diameter φ1.0mm The Sample Height 3mm Transport Package Standard Export Package Specification Automatic lmage Trademark WEST TUNE Origin China HS Code 9031809090 Production Capacity 1000units/Year

Product Description

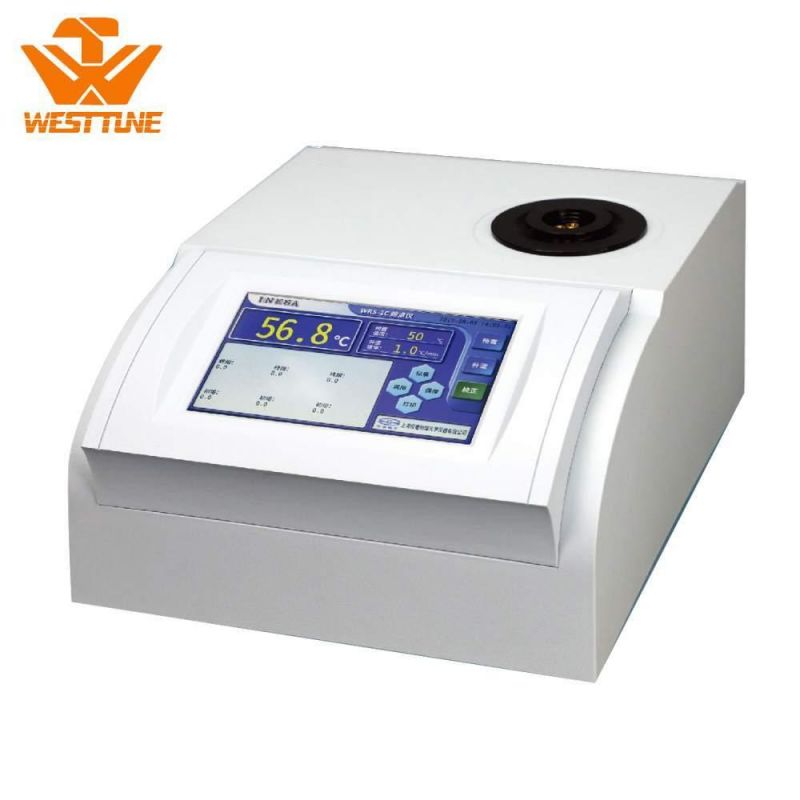

WRS-2C Melting-Point Apparatus

It adopts photoelectric automatic detection and color LCD touch screen display.
During the test, the results of initial melting and final melting are automatically recorded, and the initial melting and final melting curves of the sample can be displayed at the same time.
The temperature control system uses precision platinum resistance as the temperature detection element, and uses PID adjustment and PWM temperature control technology to improve the accuracy and reliability of the melting point determination.
The instrument has the function of automatically saving working parameters and storing measurement results. It can also establish a connection with a PC through a USB interface or an RS232 interface, and can be connected to a printer.

Features

Measurement of melting point is one of the important methods of measurement of purity.To be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances.
Use PID & PWM to control the temperature
Automatically records the melting curve
It can calculate average value of initial and final melting points automatically.
Touch Screen
USB and RS23

 Specifications


Parameters/Model	WRS-2C	WRS-1C
Measurement range	room temperature ~ 360 ºC	room temperature~ 400ºC
Minimum digital display	0.1ºC	0.1ºC
Linear heating-up rate	0.1ºC~20 ºC/min	0.1ºC~20ºC/min;
Accuracy	≤200 ºC: ±0.4ºC; >200 ºC: ±0.7ºC	≤200ºC: ±0.4ºC; >200 ºC: ±0.7ºC
Repeatability	0.3 C(heating rate: 1.0C/min)	0.3 C(heating rate: 1.0C/min)
Size of the capillary	1.4mm(outside diameter) 1.0mm(inside diameter); Length: 90mm	1.4mm(outside diameter) 1.0mm(inside diameter);Length: 90mm
Number of capillary	3	1
Loading height of the sample	3mm	3mm
Data storage	1000 set	1000 set
Optional accessories	Printer(RD-TH32-SC)	Printer(RD-TH32-SC)
Display	7 inch touch LCD	7 inch touch LCD
Interface	RS232/USB	RS232/USB
Dimension	580mm x 430mm x 310mm	500mm x 430mm x 310mm
Weight(gross)	13kg	11kg
