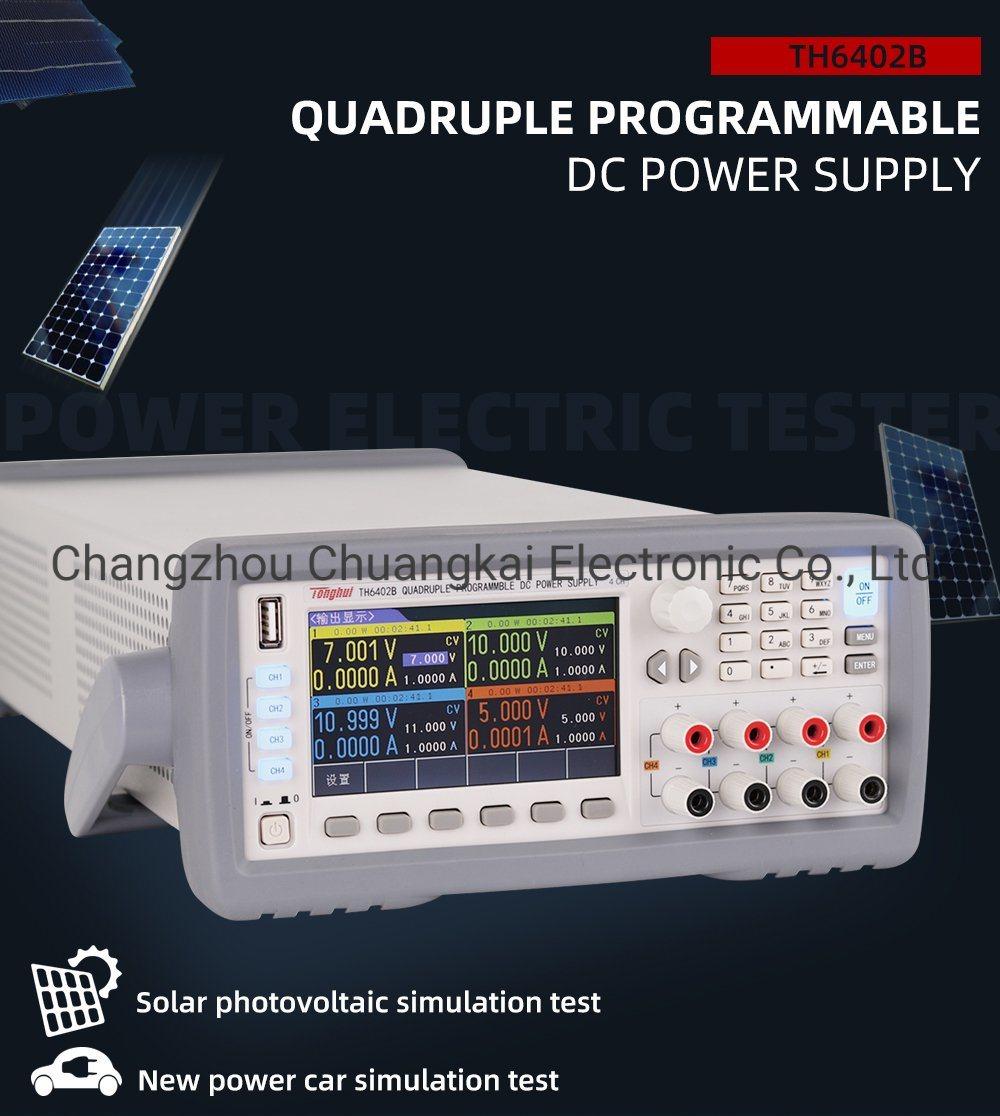

Th6402b Quadruple Programmable DC Power Supply Power Source
Changzhou Chuangkai Electronic Co., Ltd.- Warranty：1 Year
- Product Name：Th6402b Quadruple Programmable DC Power Supply Pow
Base Info
- Model NO.：TH6402B
- Memory：40 Groups of Settings Files , Channels
- Dimension (mm)：235(W) X 111(H) X501(D)

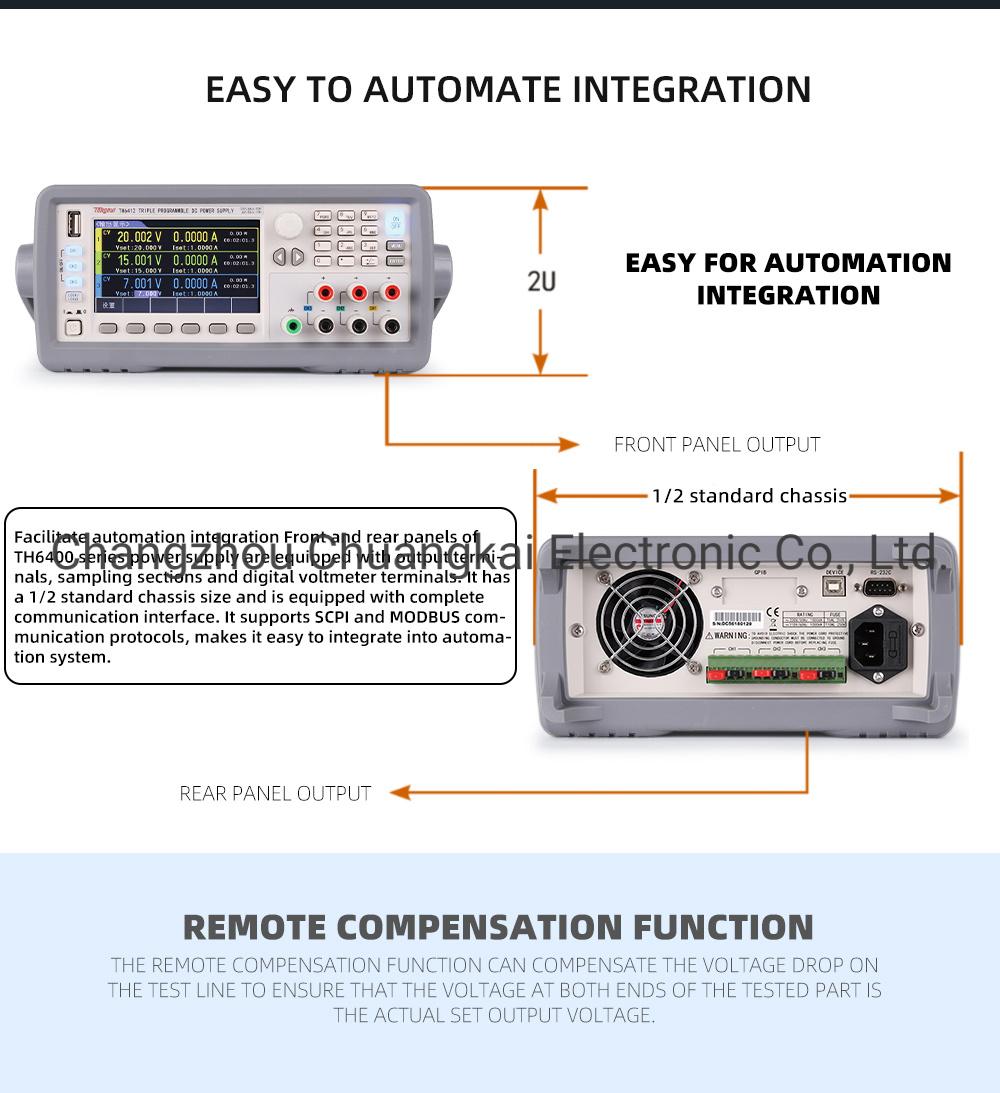

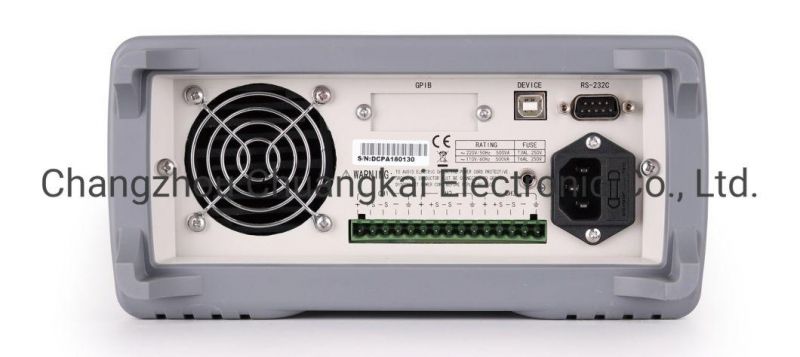

- Interface：RS232, USB Host, USB Device, Gpib (Optional)
- Display：4.3-Inch Color TFT LCD Screen
- Timer：0.1 ~ 99999.9 Seconds
- Transport Package：Carton
- Specification：59x36x25cm
- Trademark：CKT
- Origin：China
- HS Code：9030339000
- Production Capacity：3000 Sets Per Month
- Package size per unit product：59.00cm * 36.00cm * 25.00cm
- Gross weight per unit product：16.000kg
- Lead Time：10 days (1 - 1 set)
Description

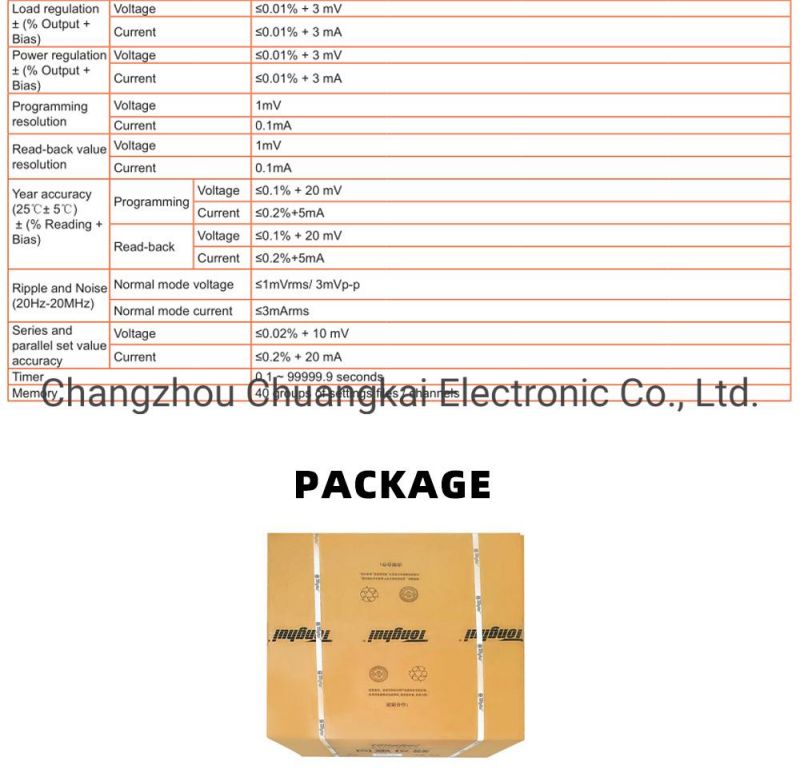

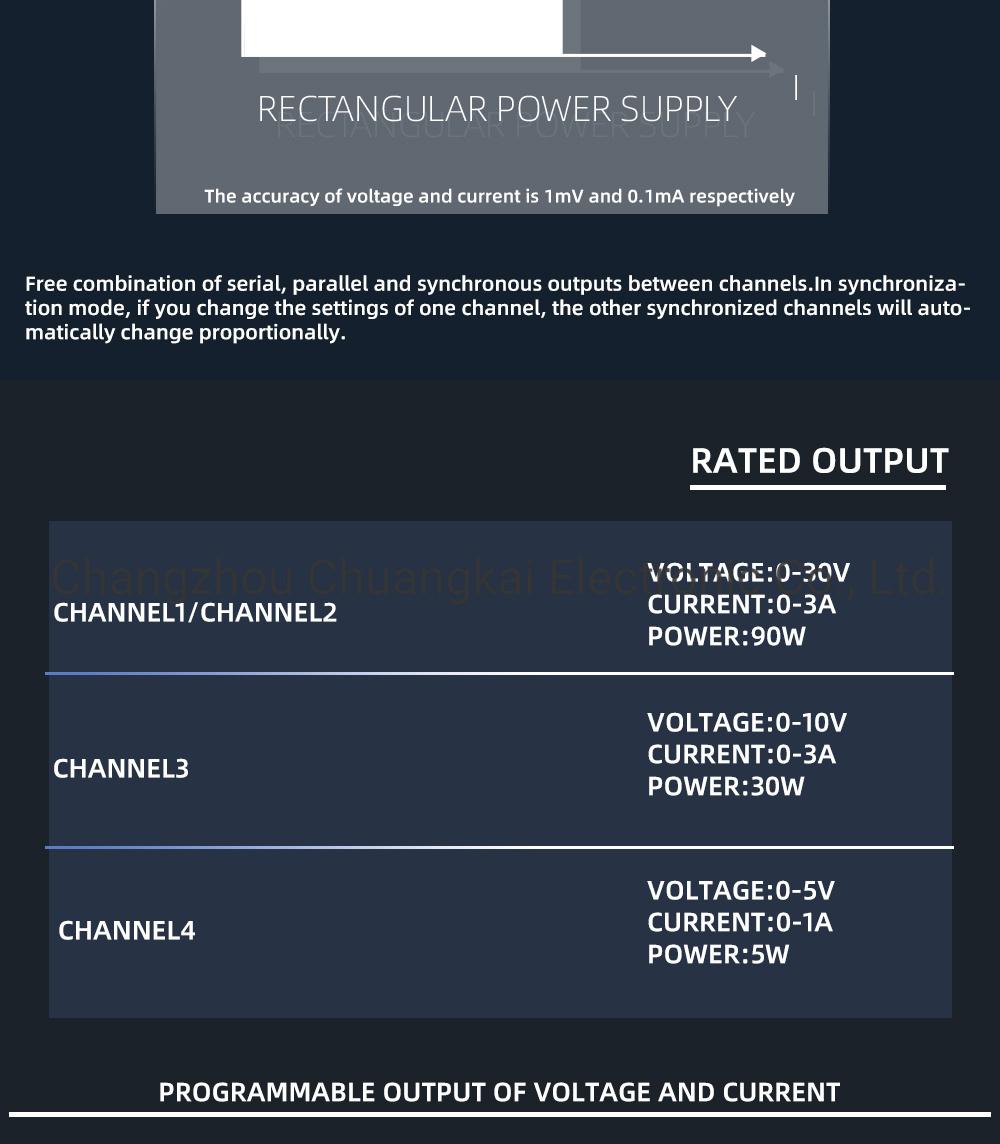

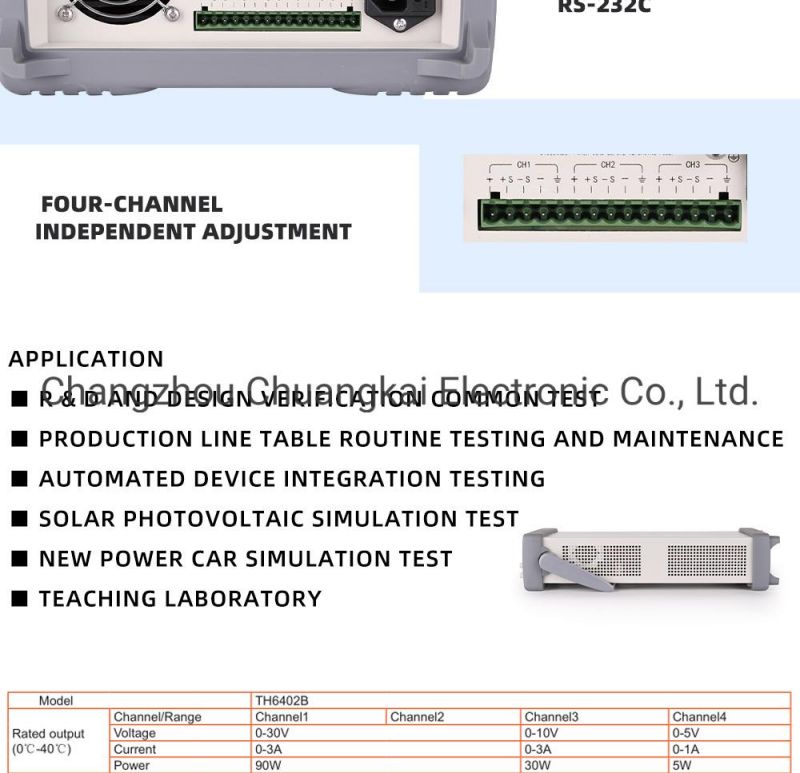

Model Company Profile https://ckt2017.en.made-in-china.com/product-list-1.htmlTH6402B Rated Output (0ºC-40ºC) Channel/Range Channel1 Channel2 Channel3 Channel4 Voltage 0-30V 0-10V 0-5V Current 0-3A 0-3A 0-1A Power 90W 30W 5W Load Regulation± (% Output +Bias) Voltage ≤0.01% + 3 mV Current ≤0.01% + 3 mA Power Regulation± (% Output +Bias) Voltage ≤0.01% + 3 mV Current ≤0.01% + 3 mA Programming Resolution Voltage 1mV Current 0.1mA Read-back Value Resolution Voltage 1mV Current 0.1mA Year Accuracy(25ºC± 5ºC) ± (% Reading +Bias) Programming Voltage ≤0.1% + 20 mV Current ≤0.2%+5mA Read-back Voltage ≤0.1% + 20 mV Current ≤0.2%+5mA Ripple and Noise(20Hz-20MHz) Normal mode voltage ≤1mVrms/ 3mVp-p Normal mode current ≤3mArms Series and Parallel Set Value Accuracy Voltage ≤0.02% + 10 mV Current ≤0.2% + 20 mA Timer 0.1 ~ 99999.9 seconds Memory 40 groups of settings files / channels
Packaging & Shipping

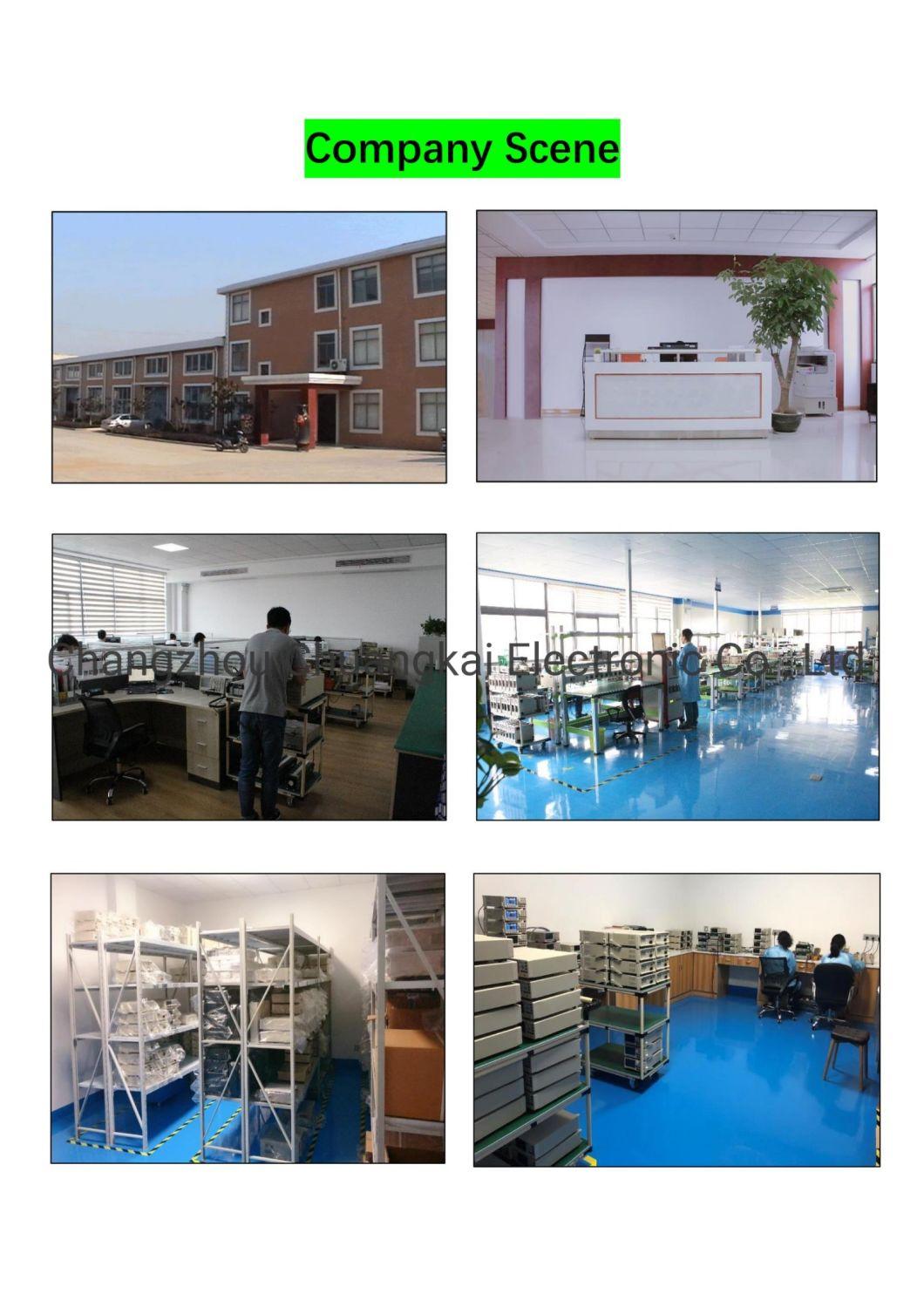

Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.
FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.
Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.
Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.
Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.
Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.
For more questions, please feel free to send inquiries to us.
