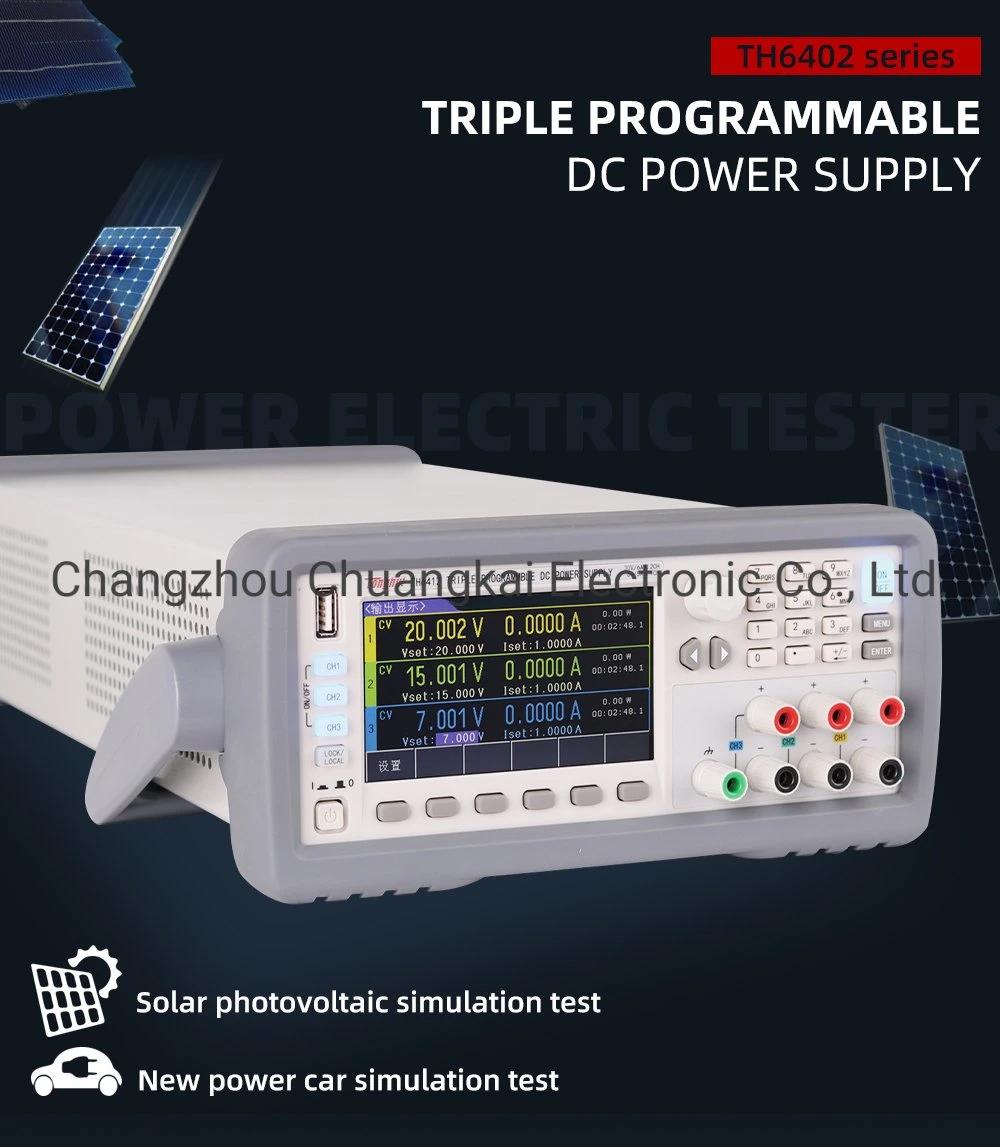

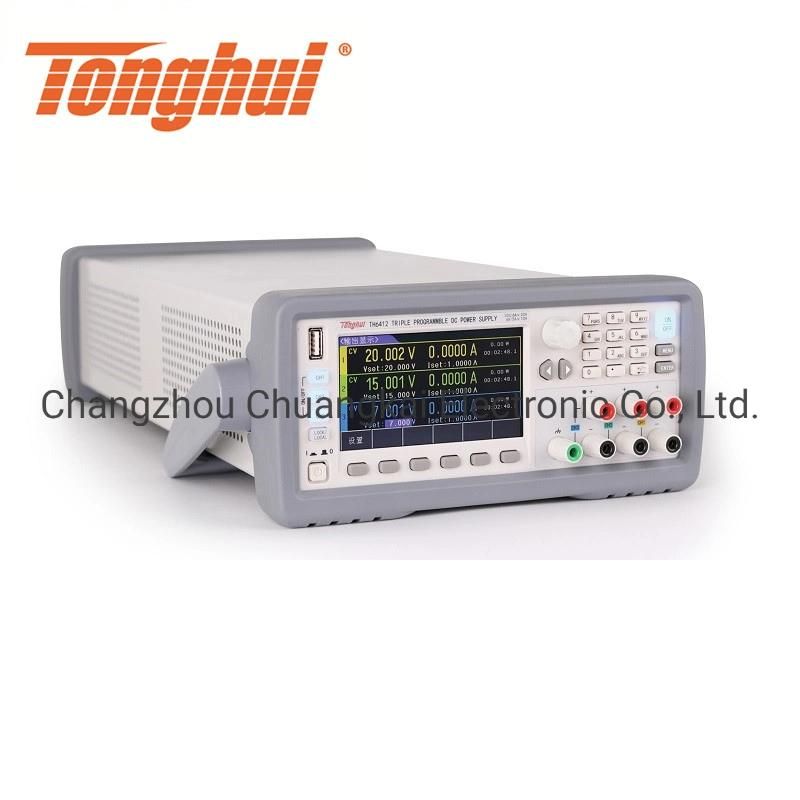

Th6413 Triple-Channel Programmable Linear DC Power Supply Power Source
Changzhou Chuangkai Electronic Co., Ltd.- After-sales Service：Lifelong
- Warranty：1 Year
- Product Name：Th6413 Triple-Channel Programmable Linear DC Power
- Memory：40 Groups of Settings Files , Channels
- Dimension (mm)：235(W) X111(H) X501(D)

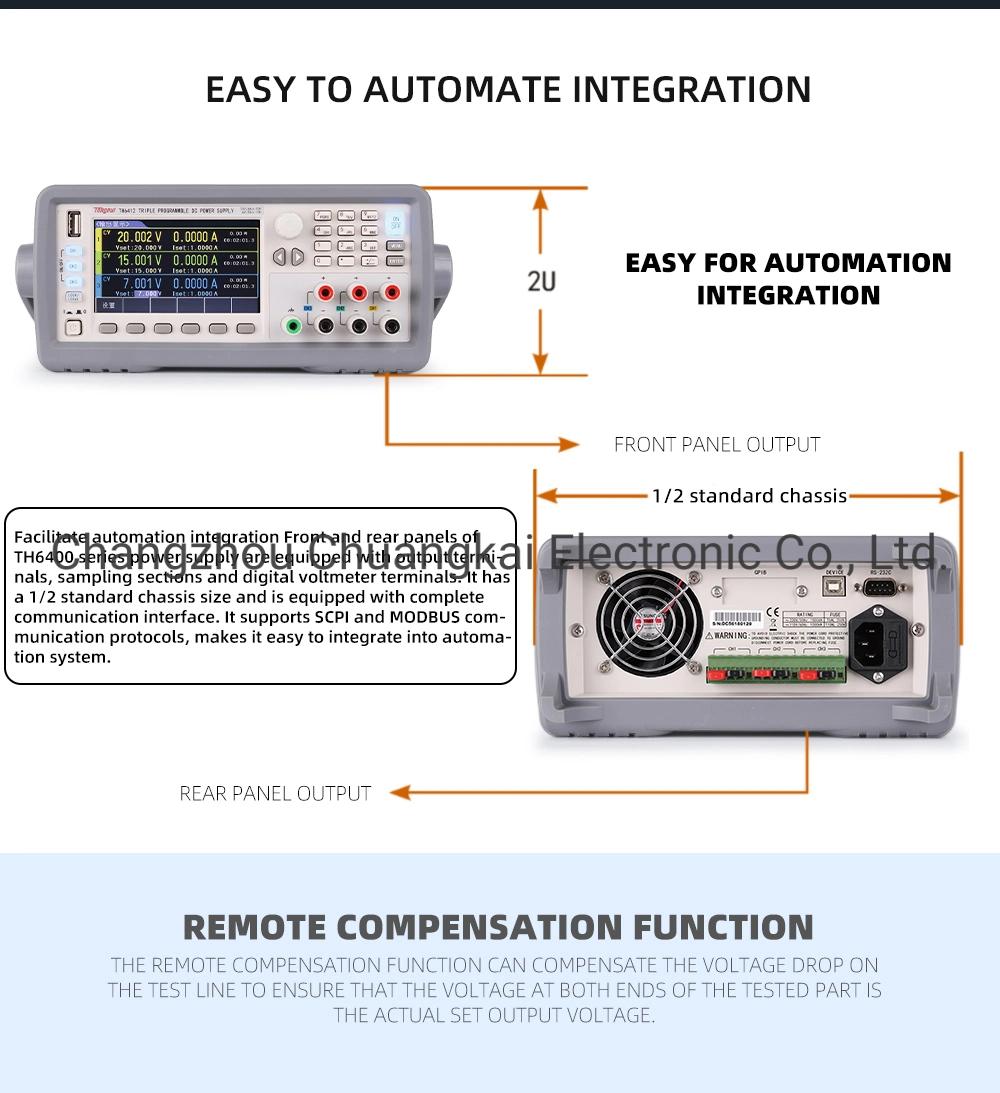

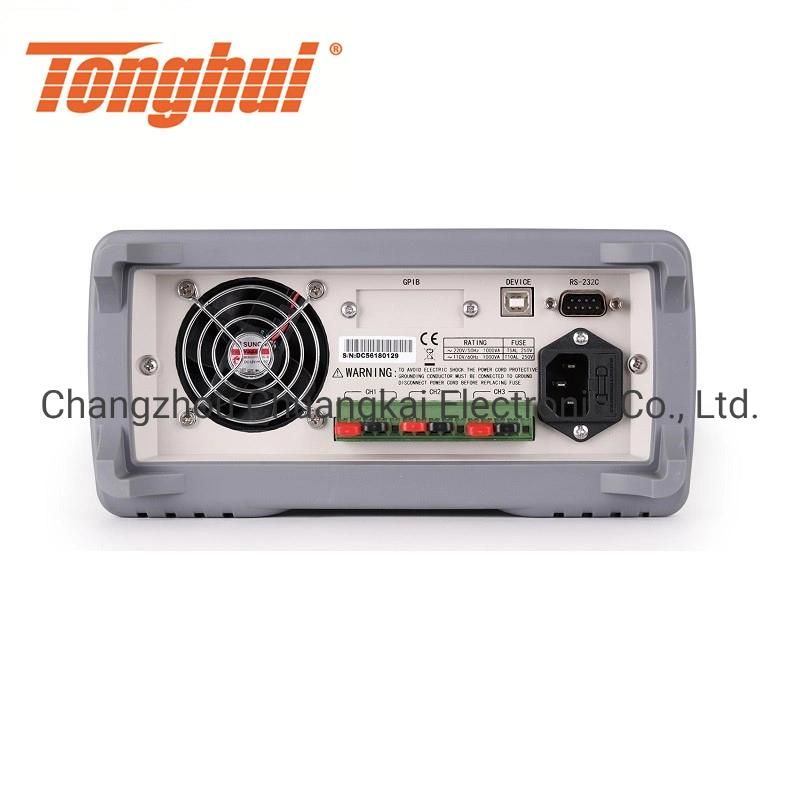

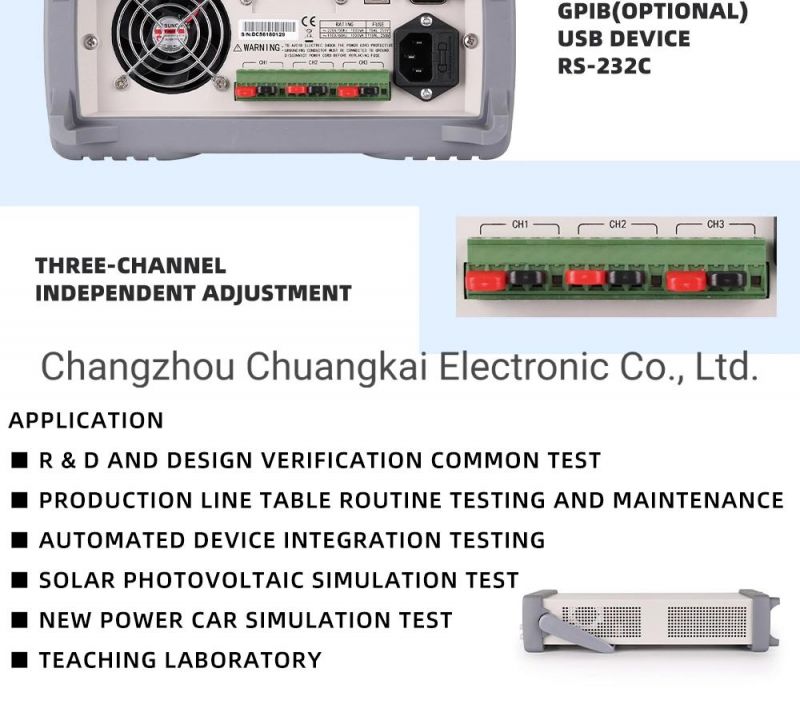

- Interface：RS232, USB Host, USB Device, Gpib (Optional)
Base Info
- Model NO.：TH6413
- Display：4.3-Inch Color TFT LCD Screen
- Timer：0.1 ~ 99999.9 Seconds
- Transport Package：Carton
- Specification：65x40x30cm
- Trademark：CKT
- Origin：China
- HS Code：9030339000
- Production Capacity：3000 Sets Per Month
Description

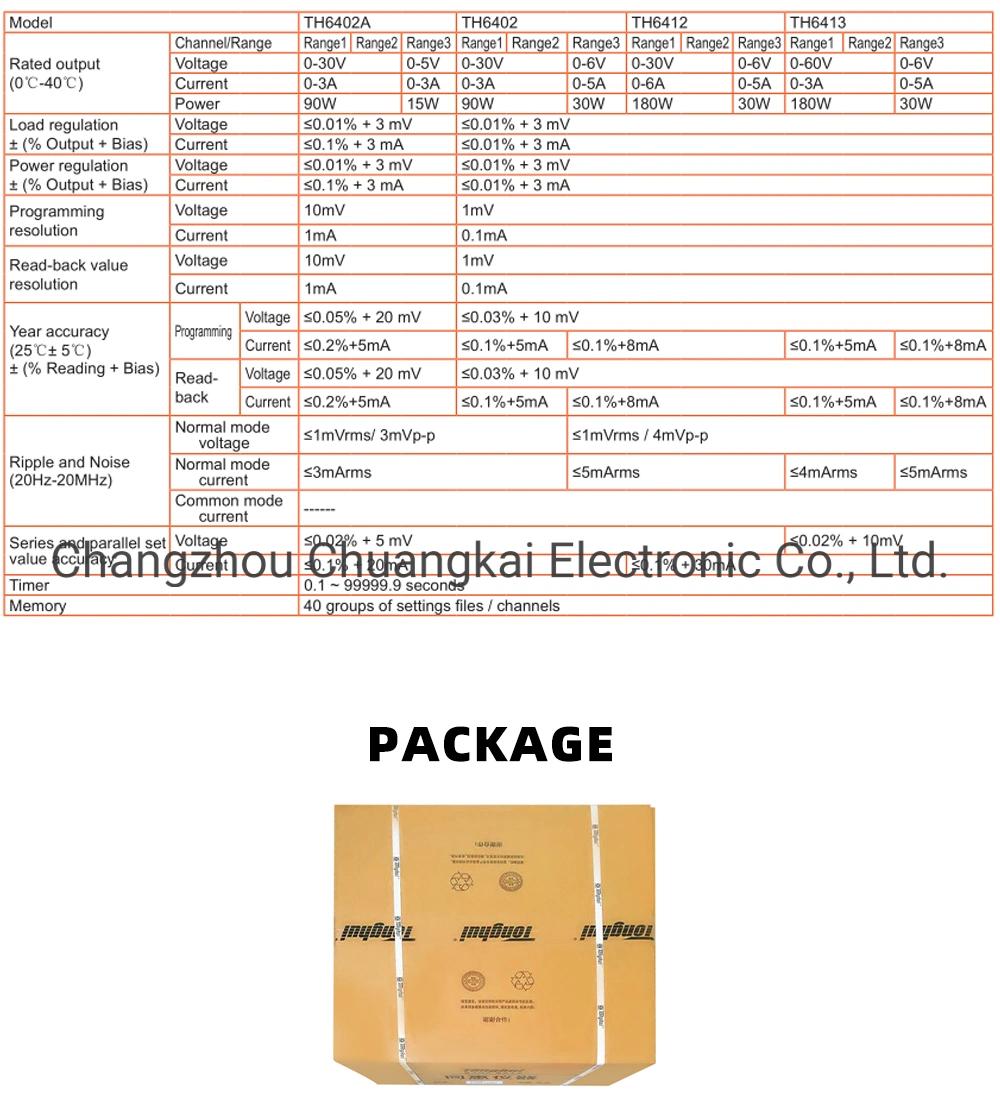

Model Company Profile https://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.htmlTH6402A TH6402 TH6412 TH6413 Rated Output (0ºC-40ºC) Channel/Range Range1 Range2 Range3 Range1 Range2 Range3 Range1 Range2 Range3 Range1 Range2 Range3 Voltage 0-30V 0-5V 0-30V 0-6V 0-30V 0-6V 0-60V 0-6V Current 0-3A 0-3A 0-3A 0-5A 0-6A 0-5A 0-3A 0-5A Power 90W 15W 90W 30W 180W 30W 180W 30W Load Regulation± (% Output + Bias) Voltage ≤0.01% + 3 mV ≤0.01% + 3 mV Current ≤0.1% + 3 mA ≤0.01% + 3 mA Power Regulation± (% Output + Bias) Voltage ≤0.01% + 3 mV ≤0.01% + 3 mV Current ≤0.1% + 3 mA ≤0.01% + 3 mA Programming Resolution Voltage 10mV 1mV Current 1mA 0.1mA Read-back Value Resolution Voltage 10mV 1mV Current 1mA 0.1mA Year Accuracy(25ºC± 5ºC)± (% Reading + Bias) Programming Voltage ≤0.05% + 20 mV ≤0.03% + 10 mV Current ≤0.2%+5mA ≤0.1%+5mA ≤0.1%+8mA ≤0.1%+5mA ≤0.1%+8mA Readback Voltage ≤0.05% + 20 mV ≤0.03% + 10 mV Current ≤0.2%+5mA ≤0.1%+5mA ≤0.1%+8mA ≤0.1%+5mA ≤0.1%+8mA Ripple and Noise (20Hz-20MHz) Normal mode voltage ≤1mVrms/ 3mVp-p ≤1mVrms / 4mVp-p Normal mode current ≤3mArms ≤5mArms ≤4mArms ≤5mArms Common mode current ------ Series and parallel set value accuracy Voltage ≤0.02% + 5 mV ≤0.02% + 10mV Current ≤0.1% + 20mA ≤0.1% + 30mA Timer 0.1 ~ 99999.9 seconds Memory groups of settings files / channels
Packaging & Shipping

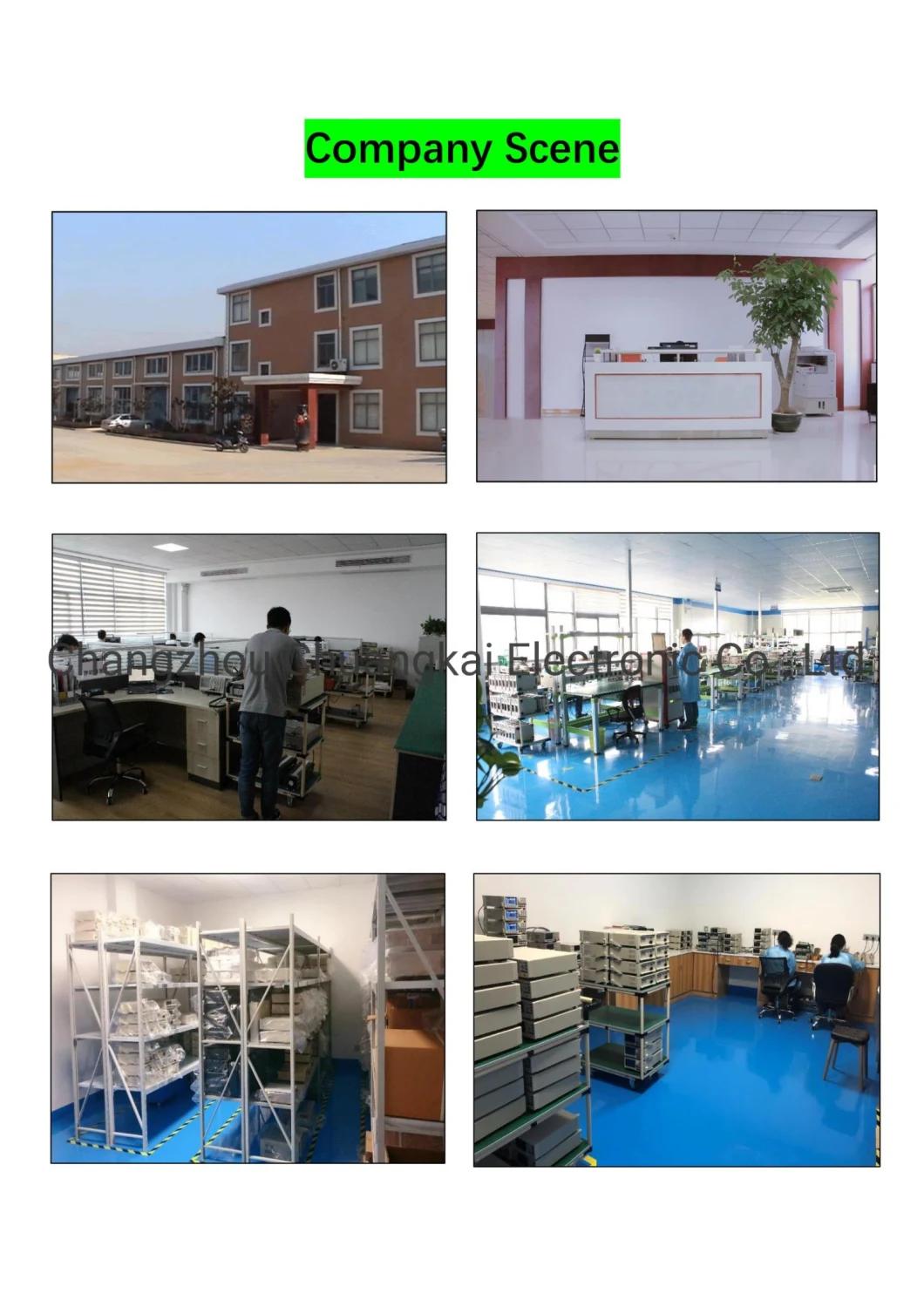

Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.
