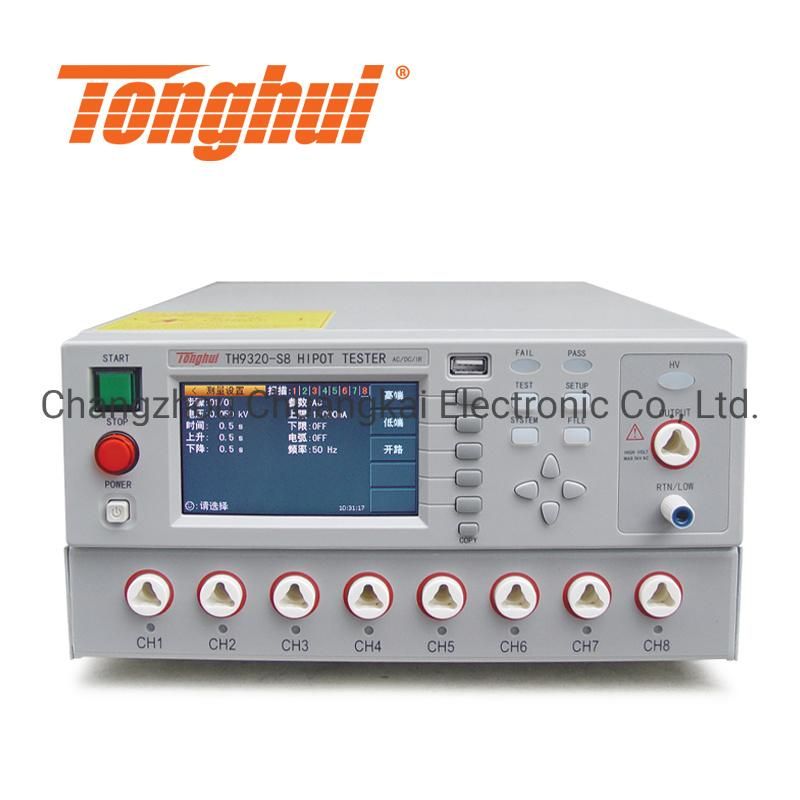

Th9320-S8 8 Channels AC/DC Hipot Tester Insulation Resistance Test Function

Changzhou Chuangkai Electronic Co., Ltd.
  • After-sales Service：Lifelong
  • Warranty：1 Year
  • Memory：5 Groups
  • Product Name：Th9320-S8 8 Channels AC,DC Hipot Tester Insulation
  • Voltage Rising Time：0.1s - 999.9s
  • Test Time Setting (AC/DC)：0.2s -999.9s

Base Info

  • Model NO.：TH9320-S8
  • Waiting Time (IR)：0.2s - 999.9s

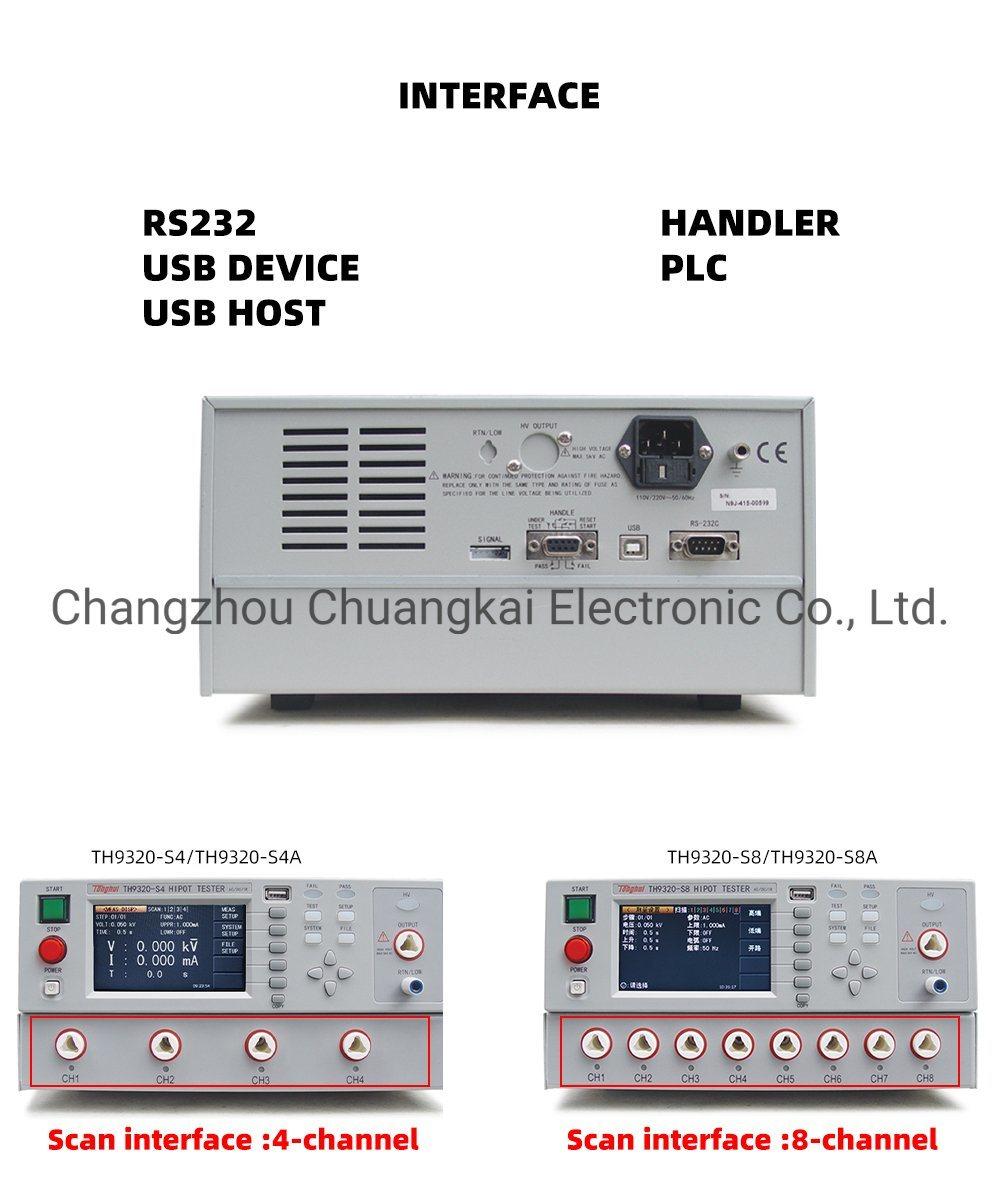

  • Interface：Handler, RS232, Usbdrv(PC Interface), Usbhost(USB
  • Discharge Function：Discharge After Test Ends (Dcw)
  • Resistance Test Range：1mohm - 9999mohm
  • Dimension (Wxhxd) and Weight：280mmx138mmx428mm,18kg
  • Scan Interface：8 Channels
  • Transport Package：Carton
  • Specification：60x45x32cm
  • Trademark：CKT
  • Origin：China
  • HS Code：9030332000
  • Production Capacity：3000 Sets Per Month

Description

Overview Product Description

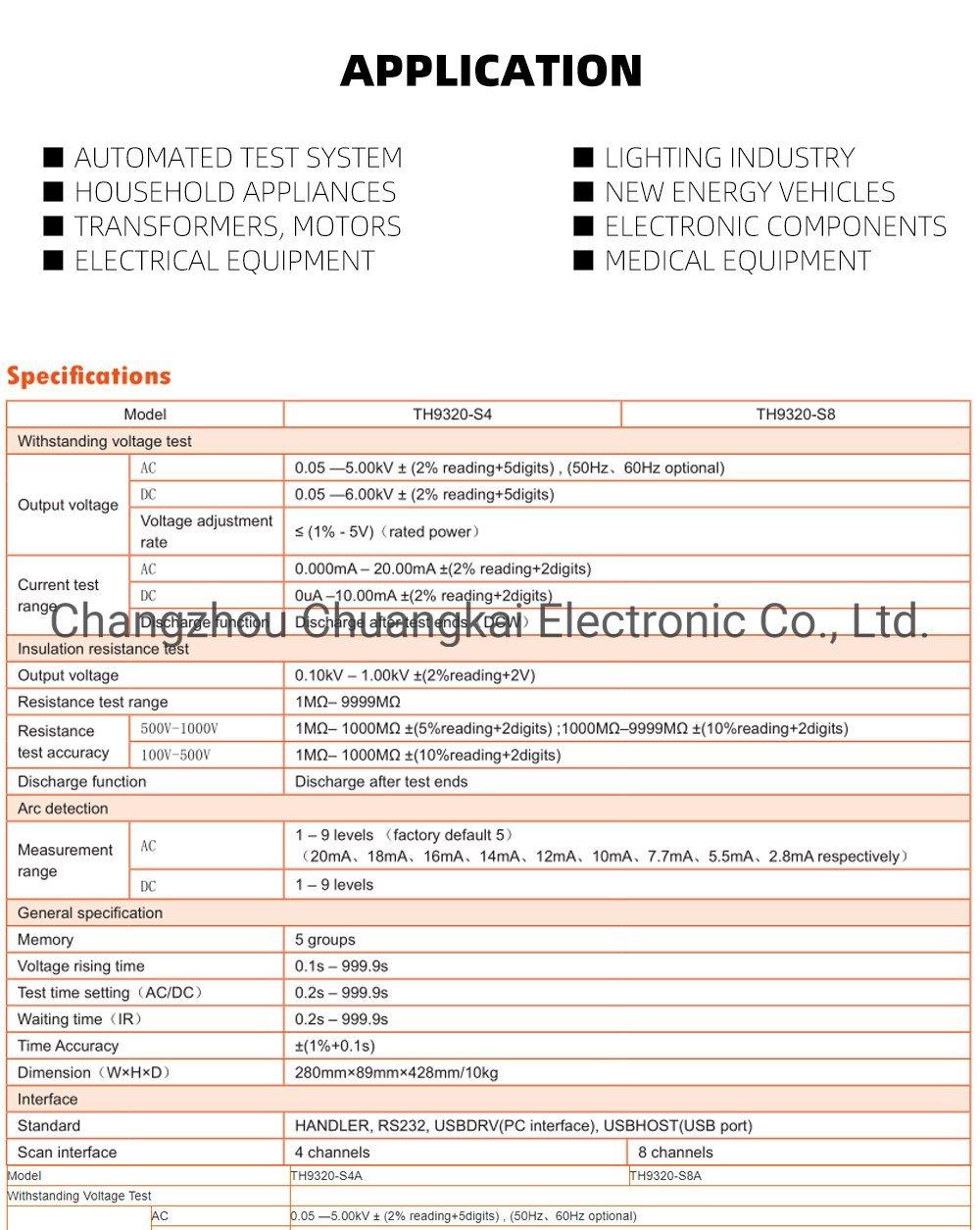

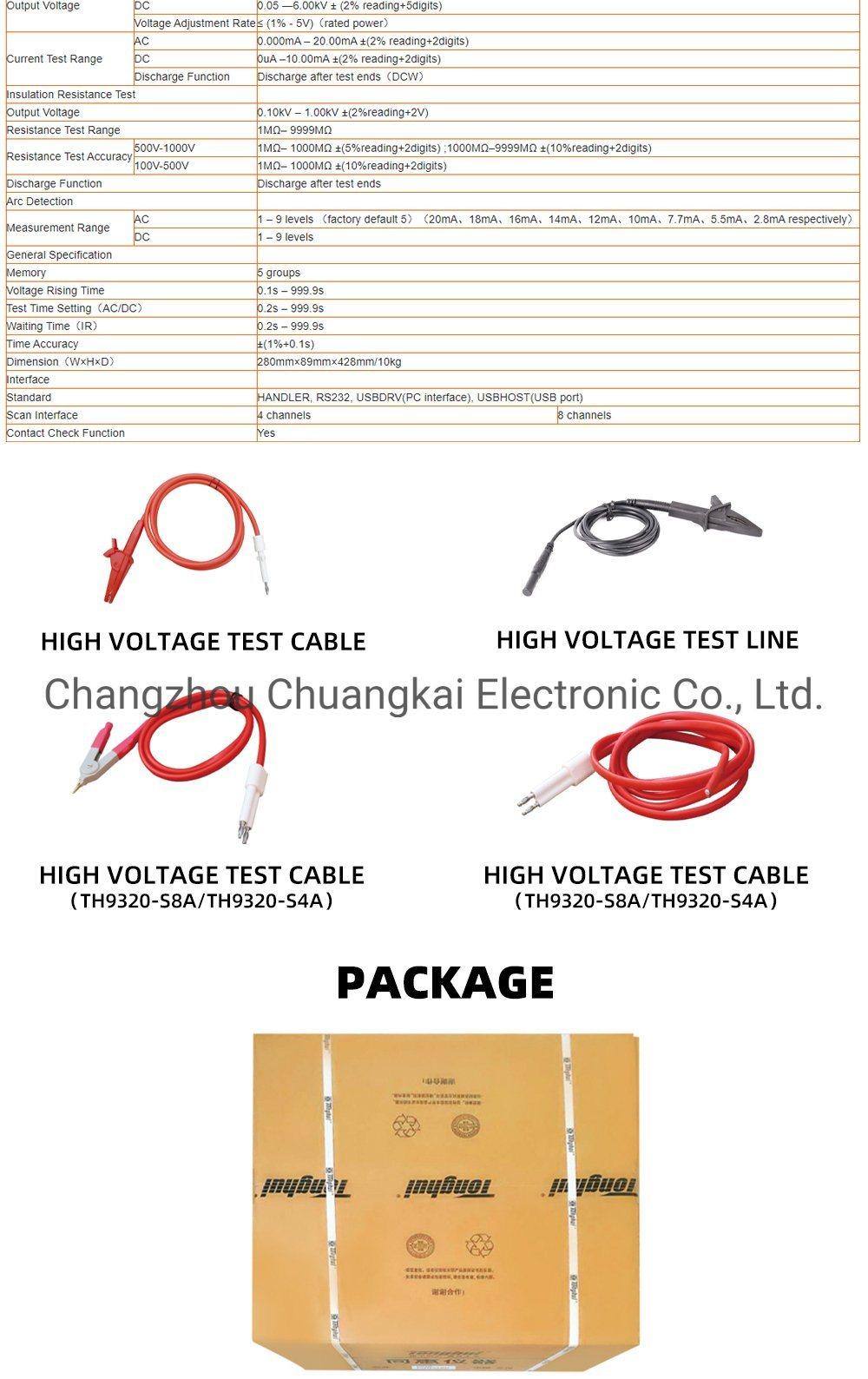

ModelTH9320-S4TH9320-S8Withstanding Voltage Test Output VoltageAC0.05 -5.00kV ± (2% reading+5digits) , (50Hz,60Hz optional)DC0.05 -6.00kV ± (2% reading+5digits)Voltage Adjustment Rate≤ (1% - 5V)(rated power)Current Test RangeAC0.000mA - 20.00mA ±(2% reading+2digits)DC0uA -10.00mA ±(2% reading+2digits)Discharge FunctionDischarge after test ends(DCW)Insulation Resistance Test Output Voltage0.10kV - 1.00kV ±(2%reading+2V)Resistance Test Range1MΩ- 9999MΩResistance Test Accuracy500V-1000V1MΩ- 1000MΩ ±(5%reading+2digits) ;1000MΩ-9999MΩ ±(10%reading+2digits)100V-500V1MΩ- 1000MΩ ±(10%reading+2digits)Discharge FunctionDischarge after test endsArc Detection Measurement RangeAC1 - 9 levels (factory default 5)(20mA,18mA,16mA,14mA,12mA,10mA,7.7mA,5.5mA,2.8mA respectively)DC1 - 9 levelsGeneral Specification Memory5 groupsVoltage Rising Time0.1s - 999.9sTest Time Setting(AC/DC)0.2s - 999.9sWaiting Time(IR)0.2s - 999.9sTime Accuracy±(1%+0.1s)Dimension(W×H×D)280mm×89mm×428mm/10kgInterface StandardHANDLER, RS232, USBDRV(PC interface), USBHOST(USB port)Scan Interface4 channels8 channels Detailed Photos

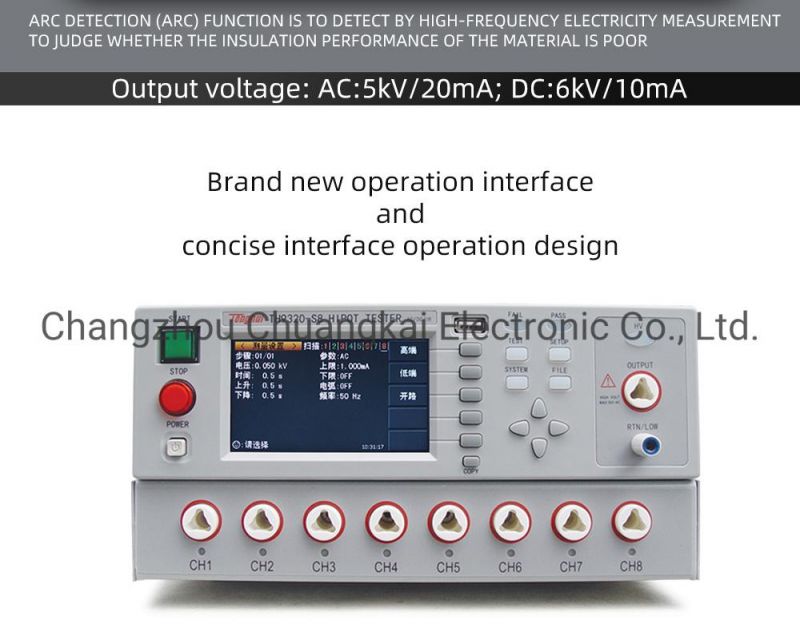

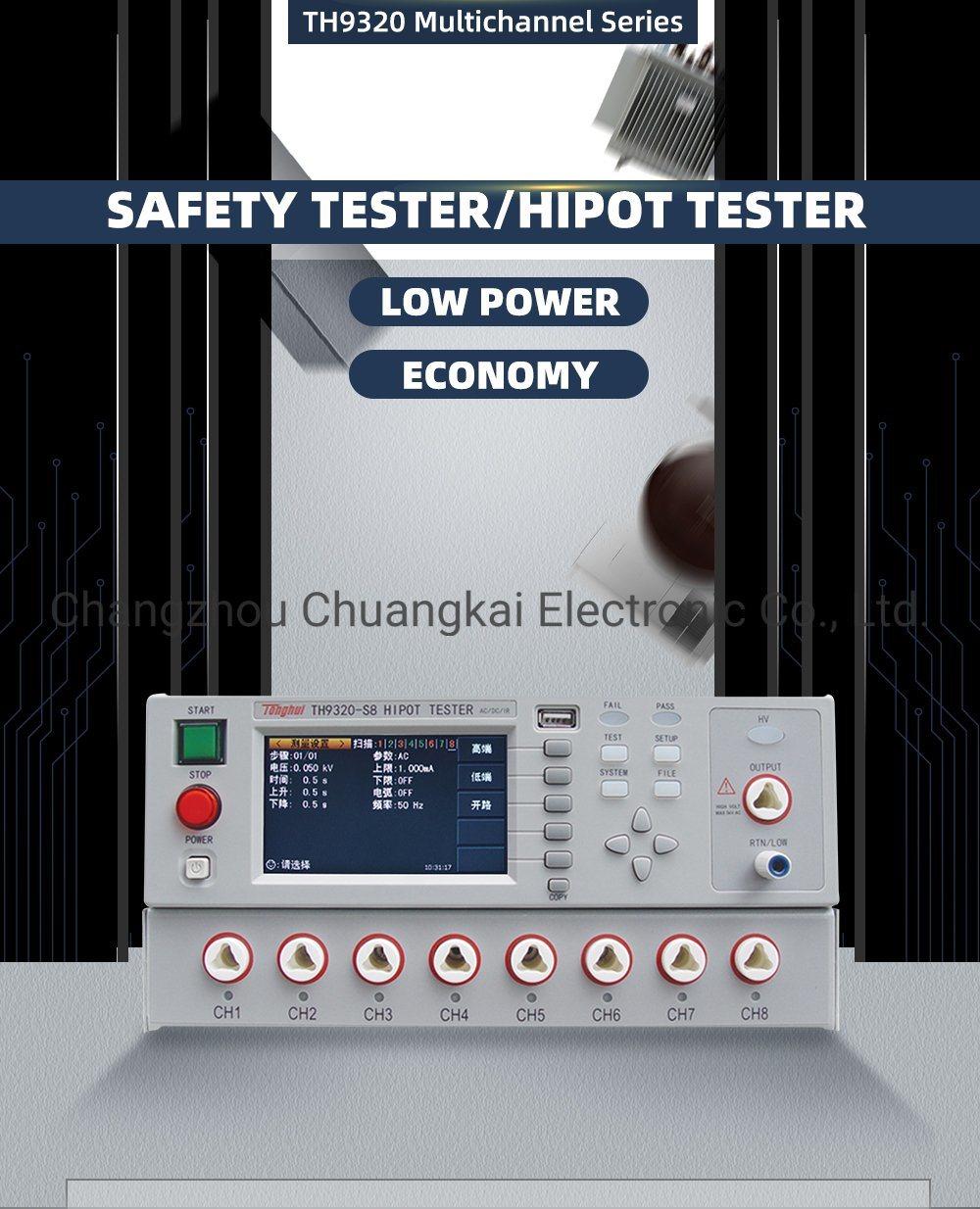

Th9320-S8 8 Channels AC/DC Hipot Tester Insulation Resistance Test Function
Th9320-S8 8 Channels AC/DC Hipot Tester Insulation Resistance Test Function
Th9320-S8 8 Channels AC/DC Hipot Tester Insulation Resistance Test Function
Th9320-S8 8 Channels AC/DC Hipot Tester Insulation Resistance Test Function
Th9320-S8 8 Channels AC/DC Hipot Tester Insulation Resistance Test Function
Th9320-S8 8 Channels AC/DC Hipot Tester Insulation Resistance Test Function
Th9320-S8 8 Channels AC/DC Hipot Tester Insulation Resistance Test Function
Th9320-S8 8 Channels AC/DC Hipot Tester Insulation Resistance Test Function

Th9320-S8 8 Channels AC/DC Hipot Tester Insulation Resistance Test Function

Th9320-S8 8 Channels AC/DC Hipot Tester Insulation Resistance Test Function

Th9320-S8 8 Channels AC/DC Hipot Tester Insulation Resistance Test FunctionPackaging & Shipping

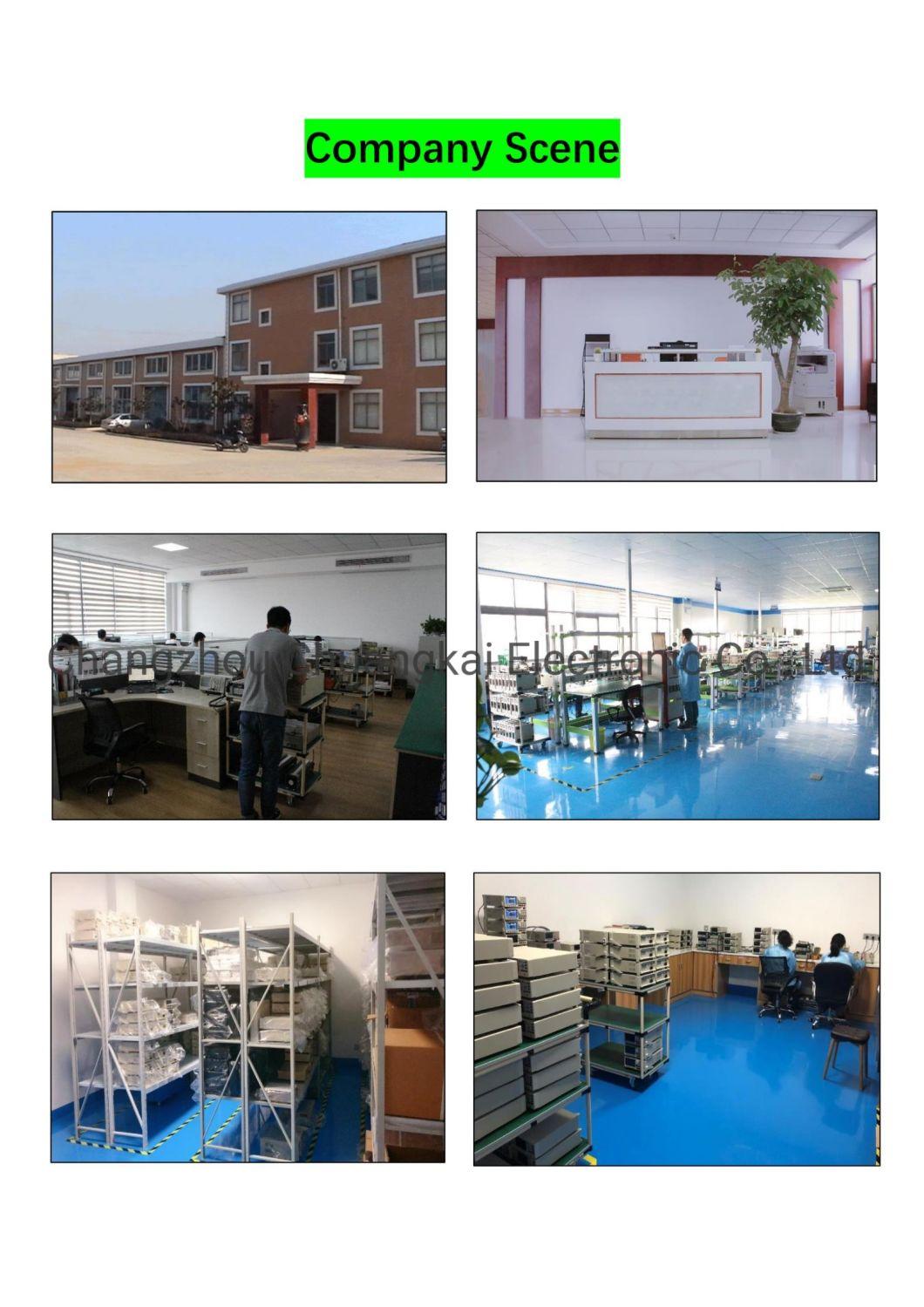

Company Profile
