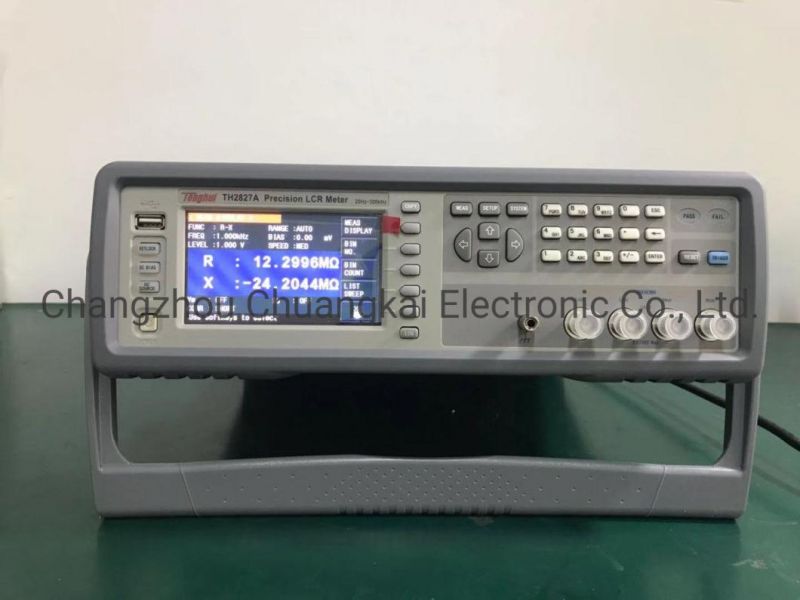

Th2827A Digital Lcr Meter 20Hz-300kHz Rlc Meter Resistance Meter
Changzhou Chuangkai Electronic Co., Ltd.- After-sales Service：Lifelong
- Function：Measurement of Lcr
- Display：800xrgbx480 7-Inch TFT LCD Display
- Usage：Electric Component Tester, Gas Sensor Tester, Catalytic Element Tester, Lightning Protection Device Tester, Lcr Meter
- Type：Lcr Meter
- Environment：Room Temperature
Base Info
- Model NO.：TH2827A
- Warranty：With Warranty
- Power Source：DC 100V-300V
- Weight：0-10Kg
- Installation：Direct Connected
- Customized：Customized
- Equivalent Mode：Serial, Parallel
- Equivalent Circuit：Auto, Hold
- Power Supply：Voltage: 99V AC-121VAC,198V-242VAC
- Calibration Function：Open,Short Calibration with Full Frequency or DOT
- Frequency：20Hz-300kHz
- Trigger Mode：Internal, Manual, External, Bus
- Product Name：Th2827A Digital Lcr Meter 20Hz-300kHz Rlc Meter
- Transport Package：Carton
- Specification：50x46x26cm
- Trademark：CKT
- Origin：China
- HS Code：9030339000
- Production Capacity：2000 Sets Per Month
Description
Overview

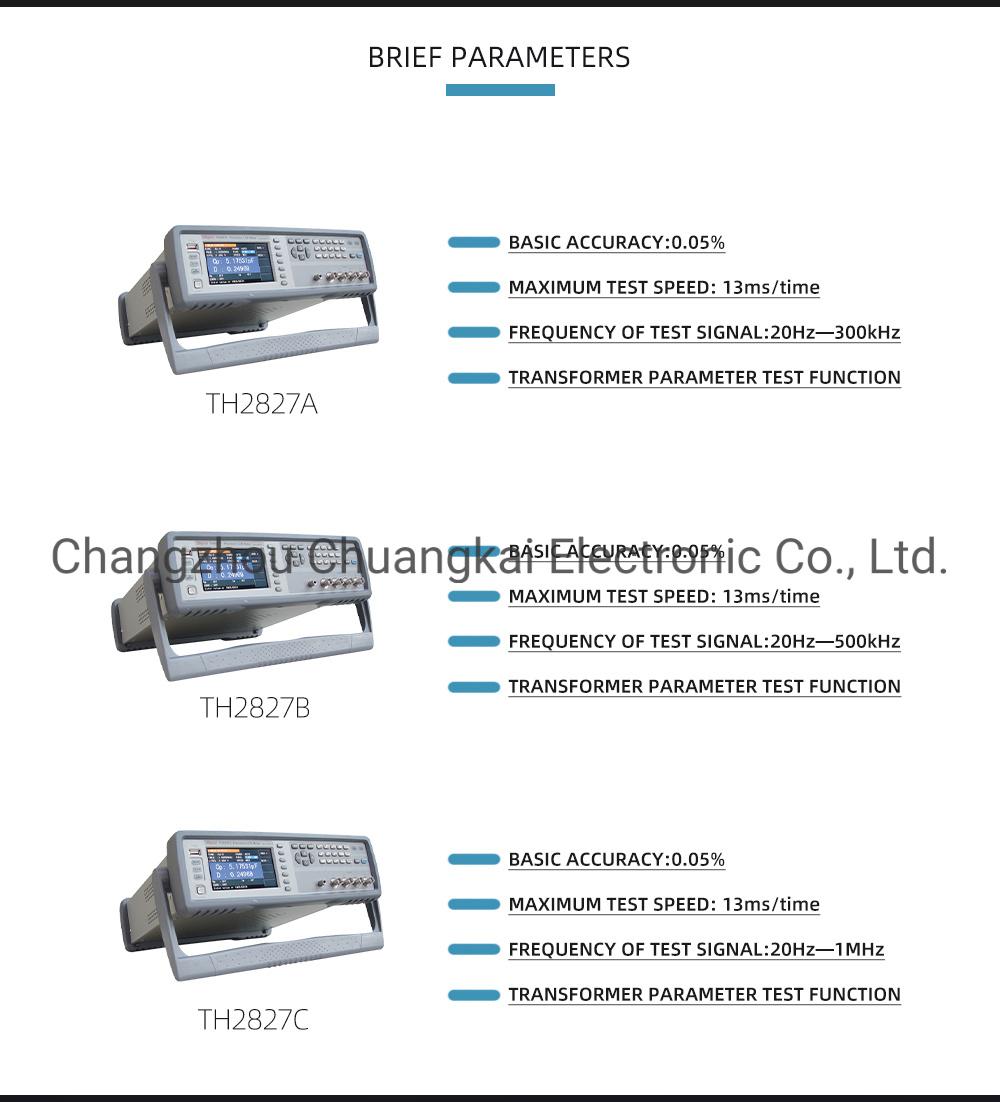

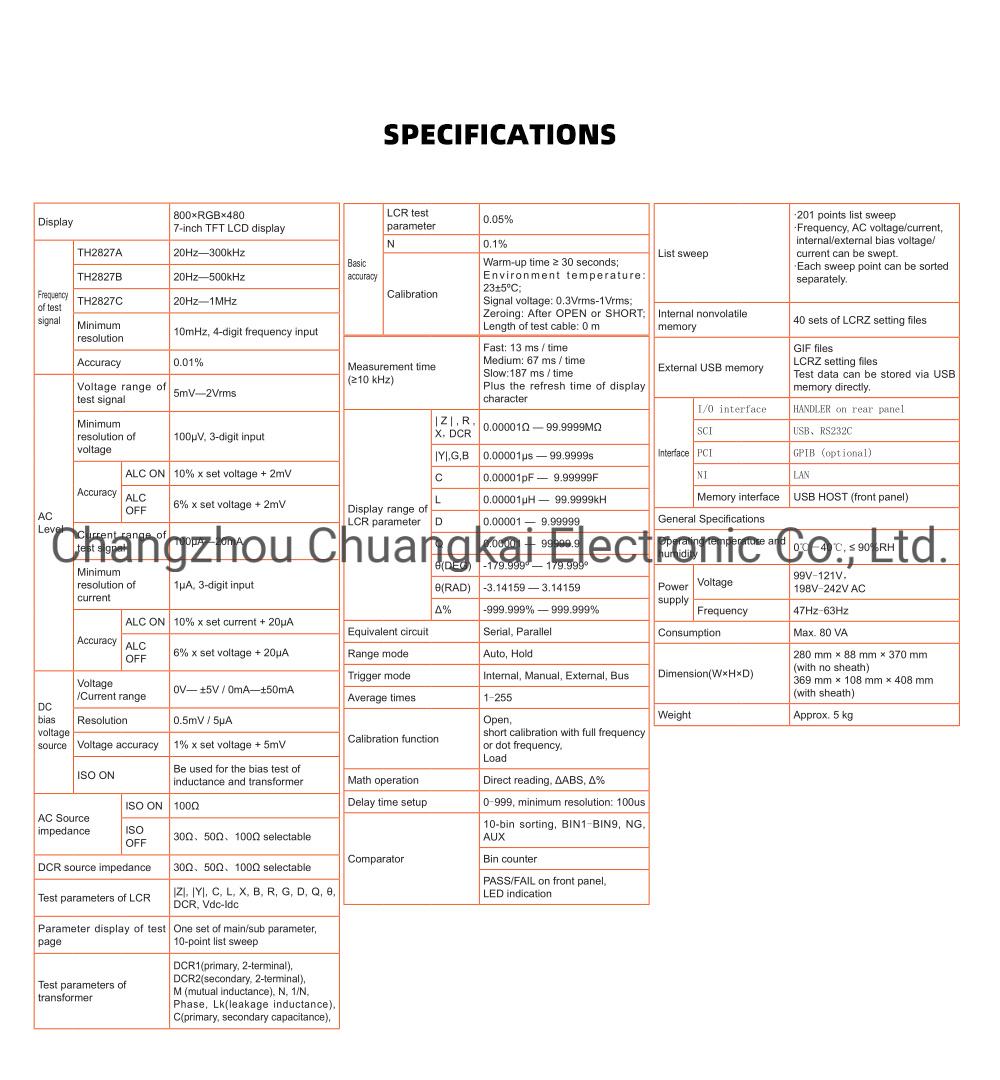

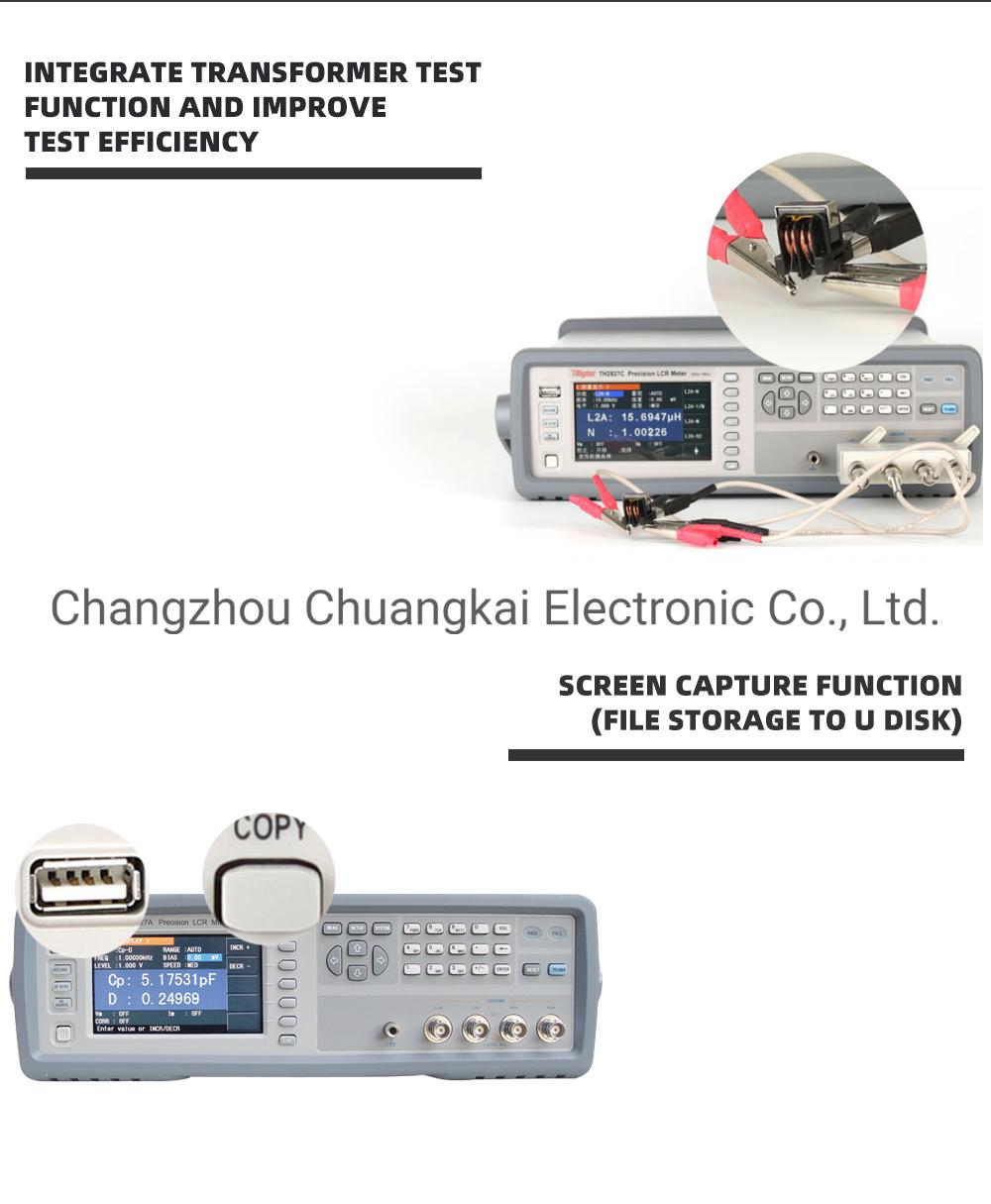

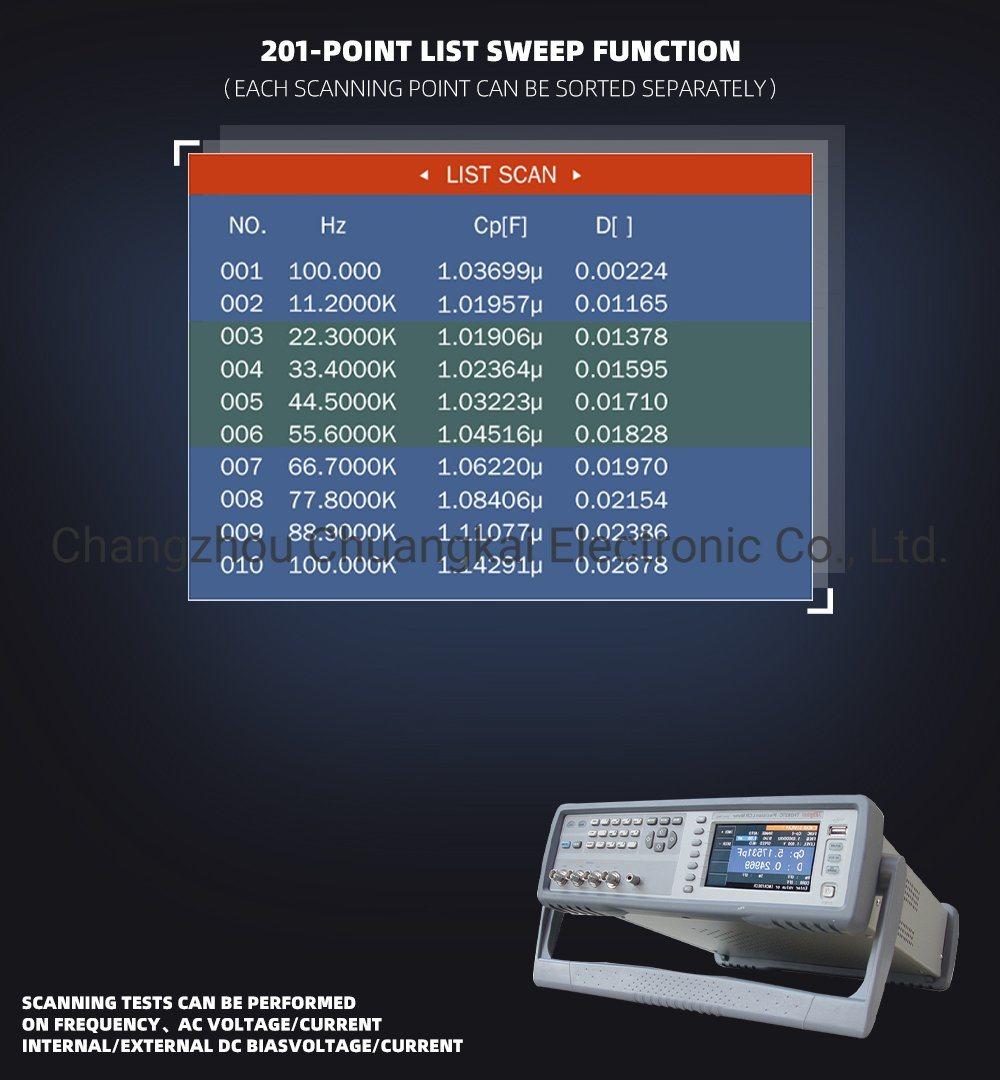

Product DescriptionTH2827A Frequency of test signal Frequency 20Hz-300kHz Minimum resolution 10mHz, 4-digit frequency input Accuracy 0.01% Display 800×RGB×480 7-inch TFT LCD display ACLevel Voltage range of test signal 5mV-2Vrms Minimumresolution of voltage 100μV, 3-digit input Accuracy ALC ON 10% x set voltage + 2mV ALCOFF 6% x set voltage + 2mV Current range of test signal 100μA-20mA Minimumresolution of current 1μA, 3-digit input Accuracy ALC ON 10% x set current + 20μA ALCOFF 6% x set voltage + 20μA DCbias voltage source Voltage/Current range 0V- ±5V / 0mA-±50mA Resolution 0.5mV / 5μA Voltage accuracy 1% x set voltage + 5mV ISO ON Be used for the bias test of inductance and transformer AC Source impedance ISO ON 100Ω ISOOFF 30Ω,50Ω,100Ω selectable DCR source impedance 30Ω,50Ω,100Ω selectable Test parameters of LCR |Z|,Y|, C, L, X, B, R, G, D, Q, θ,DCR, Vdc-Idc Parameter display of test page One set of main/sub parameter,10-point list sweep Test parameters of transformer DCR1(primary, 2-terminal),DCR2(secondary, 2-terminal),M (mutual inductance), N, 1/N,Phase, Lk (leakage inductance),C(primary, secondary capacitance), Basic accuracy LCR test parameter 0.05% N 0.1% Calibration Warm-up time ≥ 30 seconds; Environment temperature:23±5ºC; Signal voltage: 0.3Vrms-1Vrms;Zeroing: After OPEN or SHORT;Length of test cable: 0 m Measurement time(≥10 kHz) Fast: 13 ms / timeMedium: 67 ms / timeSlow:187 ms / timePlus the refresh time of display character Display range ofLCR parameter Z, R , X,DCR 0.00001Ω - 99.9999MΩ |Y|,G,B 0.00001μs - 99.9999s C 0.00001pF - 9.99999F L 0.00001μH - 99.9999kH D 0.00001 - 9.99999 Q 0.00001 - 99999.9 θ(DEG) -179.999º - 179.999º θ(RAD) -3.14159 - 3.14159 Δ% -999.999% - 999.999% Equivalent circuit Serial, Parallel Range mode Auto, Hold Trigger mode Internal, Manual, External, Bus Average times 1-255 Calibration function Open,short calibration with full frequency or dot frequency,Load Math operation Direct reading, ΔABS, Δ% Delay time setup 0-999, minimum resolution: 100us Comparator 10-bin sorting, BIN1-BIN9, NG,AUX Bin counter PASS/FAIL on front panel,LED indication List sweep ·201 points list sweep·Frequency, AC voltage/current, internal/external bias voltage/ current can be swept.·Each sweep point can be sorted separately. Internal nonvolatilememory 40 sets of LCRZ setting files External USB memory GIF filesLCRZ setting filesTest data can be stored via USB memory directly. Interface I/O interface HANDLER on rear panel SCI USB,RS232C PCI GPIB (optional) NI LAN Memory interface USB HOST (front panel) General Specifications Operating temperature and humidity 0ºC-40ºC, ≤ 90%RH Power supply Voltage 99V-121V,198V-242V AC Frequency 47Hz-63Hz Consumption Max. 80 VA Dimension(W×H×D) 280 mm × 88 mm × 370 mm(with no sheath)369 mm × 108 mm × 408 mm(with sheath) Weight Approx. 5 kg
Packaging & Shipping
Company Profile
Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.
FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.
Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.
Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.
Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.
Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.
For more questions, please feel free to send inquiries to us.
