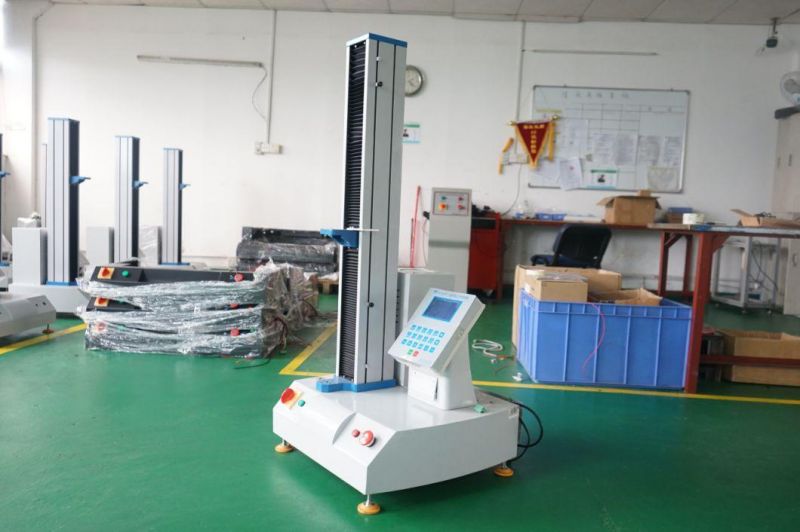

Computer Servo Control Tensile Strength Test Equipment
Dongguan Haida Equipment Co., Ltd.- Type：Tensile Testing Machine
- Maxcapacity：200kg
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Computer Display, Digital
Base Info
- Model NO.：HD-609B-S
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Standards：ASTM JIS Cns Pstc
- Motor：Servo Motor
- Warranty：One Year
- Delivery Time：15 Days After Receive The Deposit
- Power：One Phase, AC 220V
- Load Resolution：1,250, 000
- Accuracy：0.5%
- Sensor：Celtron Load Cell
- Test Speed：0.01 to 500 mm,Min
- Display Device：LCD or PC
- Transport Package：Strong Wooden Case
- Specification：Design Standards: GB,T16491; GB,T1040; GB,T1041; G
- Trademark：Haida
- Origin：Dongguan, China
- HS Code：9024109000
- Production Capacity：150 Sets Per Month
Description
Product Features
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
