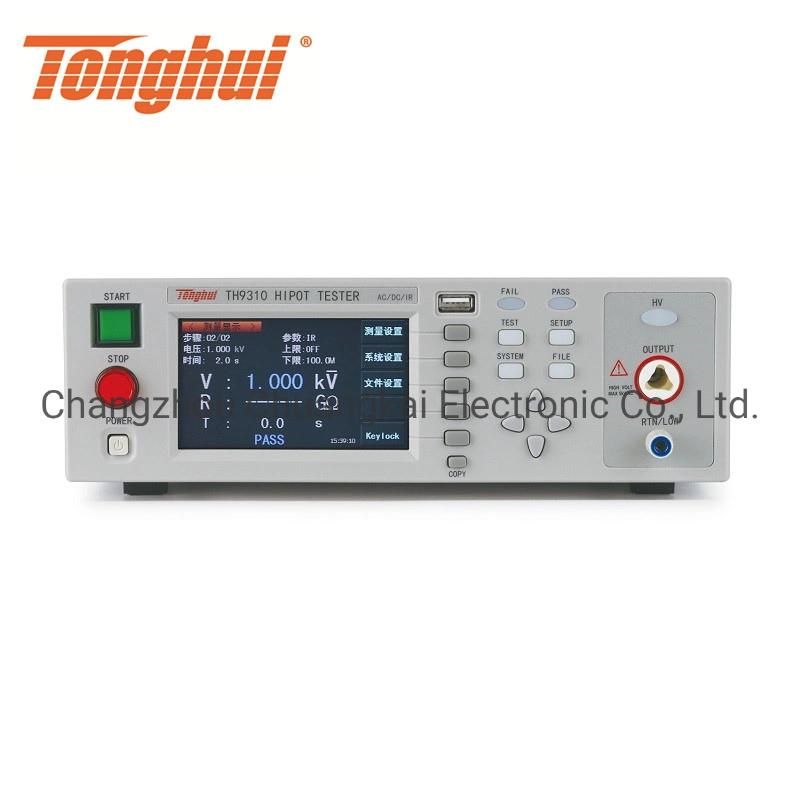

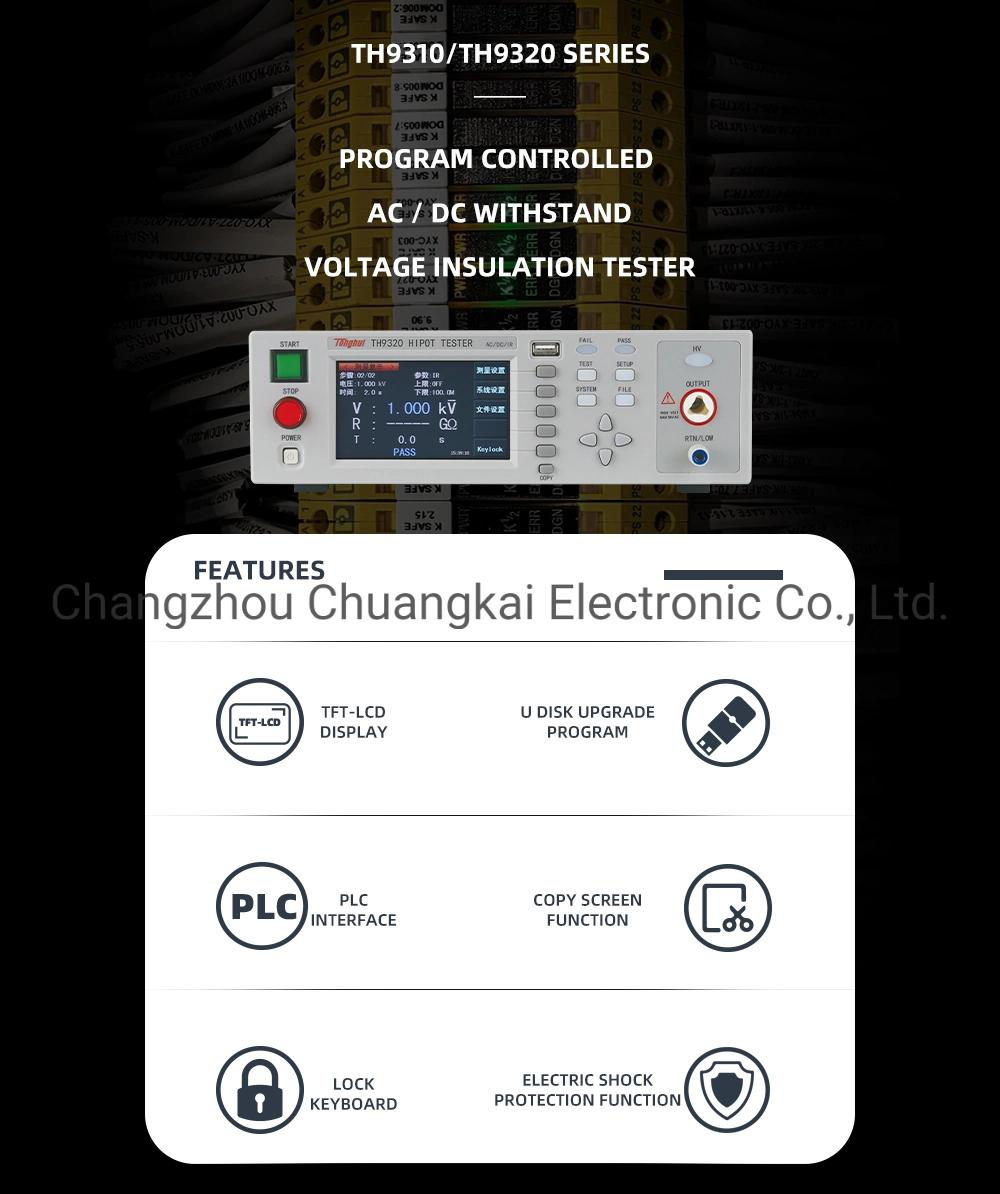

Th9310 AC/DC Hipot Tester Insulation Resistance Meter 1mohm-9999mohm

Changzhou Chuangkai Electronic Co., Ltd.
  • After-sales Service：Lifelong
  • Warranty：1 Year
  • Memory：5 Groups
  • Product Name：Th9310 AC,DC Hipot Tester Insulation Resistance

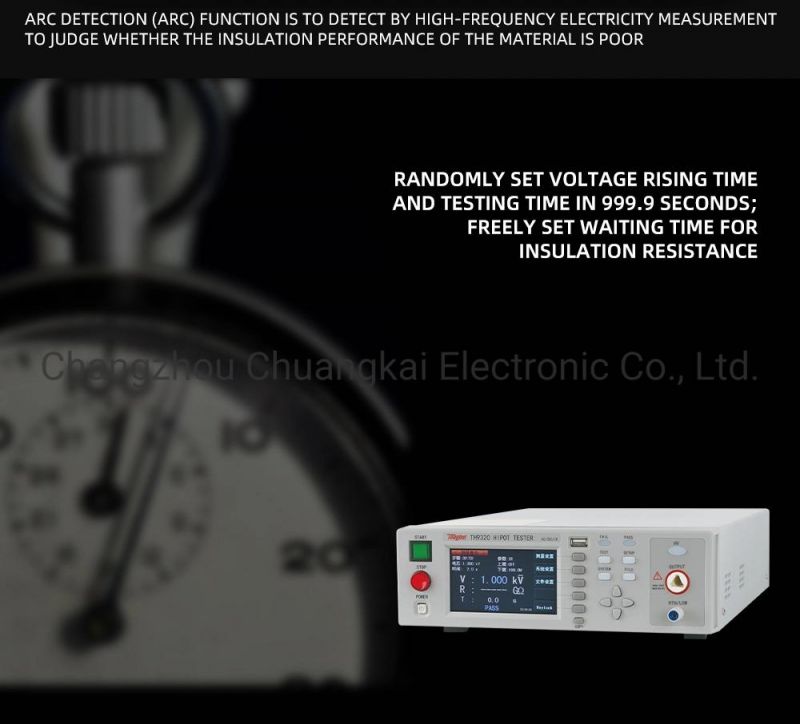

  • Voltage Rising Time：0.1s - 999.9s
  • Test Time Setting (AC/DC)：0.2s -999.9s

Base Info

  • Model NO.：TH9310
  • Waiting Time (IR)：0.2s - 999.9s

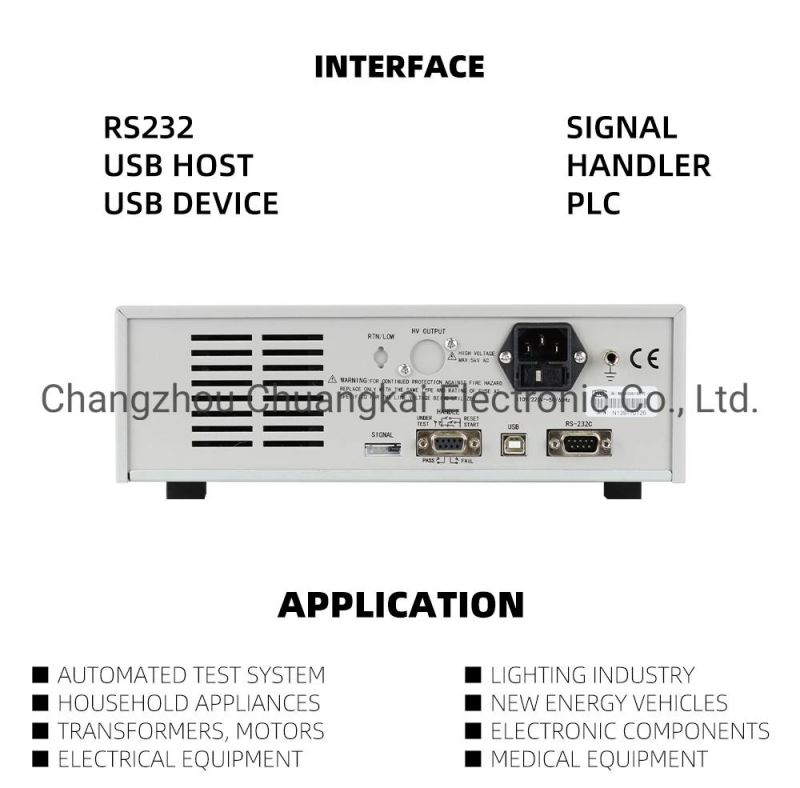

  • Interface：Handler, RS232, Usbdrv(PC Interface), Usbhost(USB

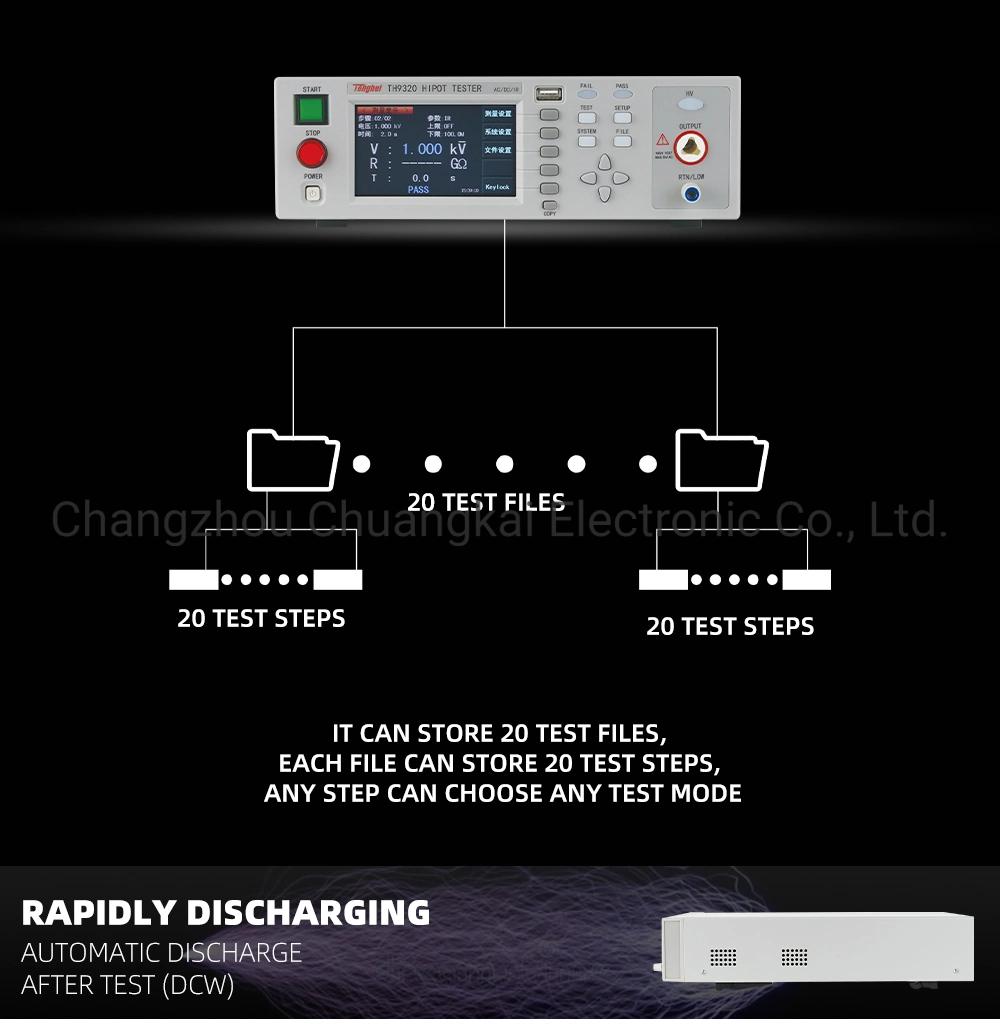

  • Discharge Function：Discharge After Test Ends
  • Resistance Test Range：1mohm - 9999mohm
  • Transport Package：Carton
  • Specification：60x45x32cm
  • Trademark：CKT
  • Origin：China
  • HS Code：9030332000
  • Production Capacity：3000 Sets Per Month

Description

Overview Product Description

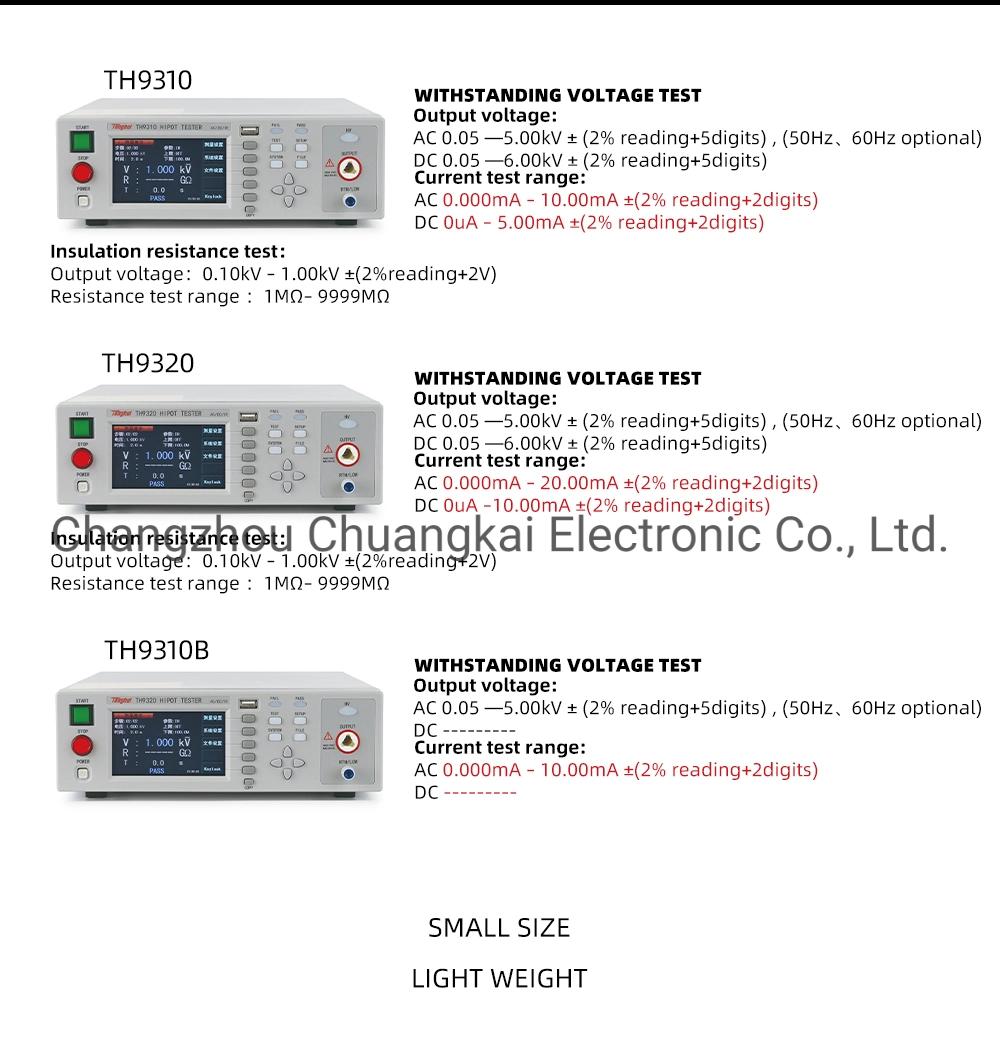

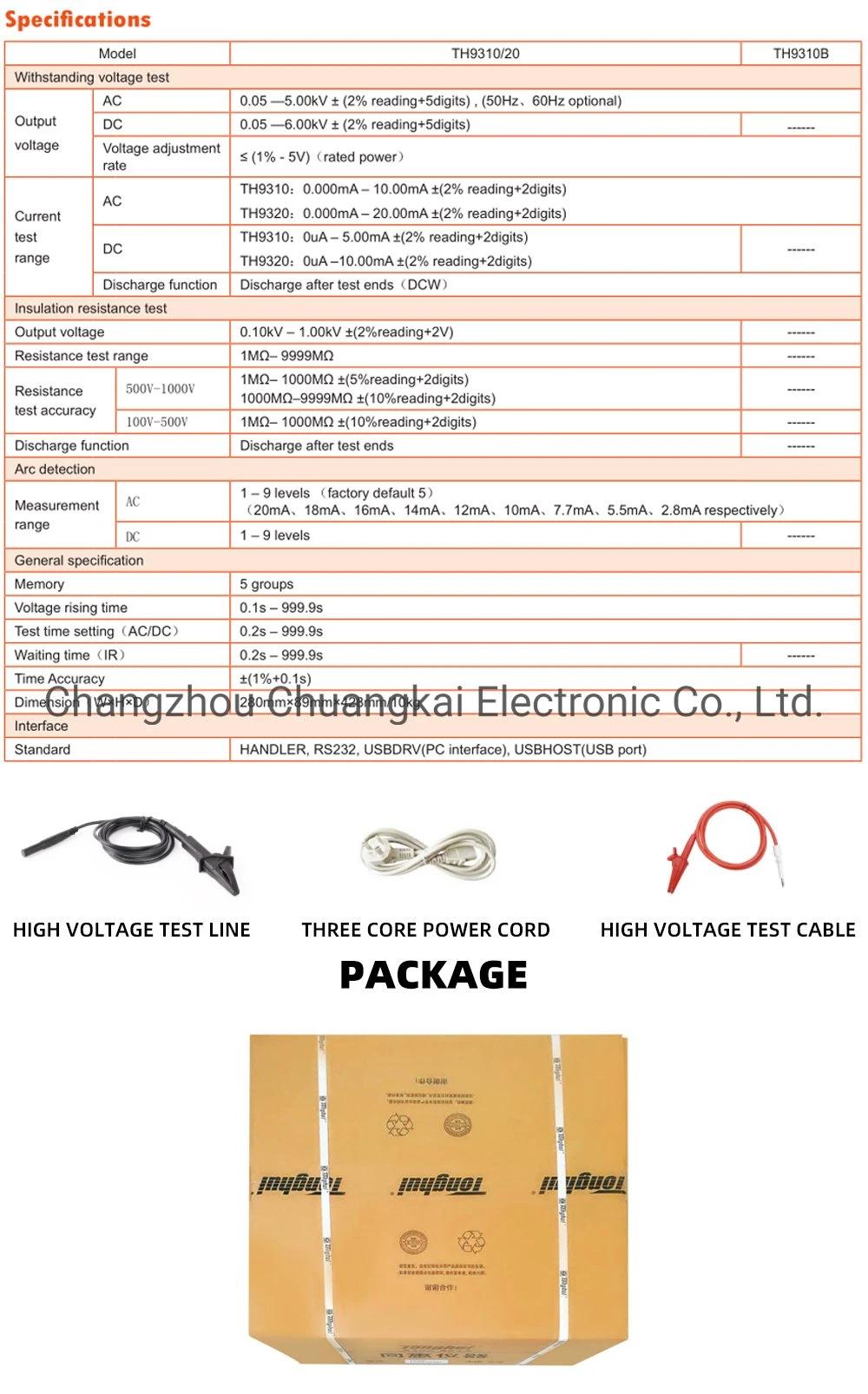

ModelTH9310/20TH9310BWithstanding Voltage TestOutput VoltageAC0.05 -5.00kV ± (2% reading+5digits), (50Hz,60Hz optional)DC0.05 -6.00kV ± (2% reading+5digits)------Voltage Adjustment Rate≤ (1% - 5V)(rated power)Current TestRangeAC TH9310:0.000mA - 10.00mA ± (2% reading+2digits)TH9320:0.000mA - 20.00mA ± (2% reading+2digits)DCTH9310:0uA - 5.00mA ± (2% reading+2digits)TH9320:0uA -10.00mA ± (2% reading+2digits)------Discharge FunctionDischarge after test ends(DCW)Insulation Resistance TestOutput Voltage0.10kV - 1.00kV ± (2%reading+2V)------Resistance Test Range1MΩ- 9999MΩ------Resistance Test Accuracy500V-1000V1MΩ- 1000MΩ ± (5%reading+2digits)1000MΩ-9999MΩ ± (10%reading+2digits)------100V-500V1MΩ- 1000MΩ ± (10%reading+2digits)------Discharge FunctionDischarge after test ends------Arc DetectionMeasurement RangeAC1 - 9 levels (factory default 5)(20mA,18mA, 16mA, 14mA, 12mA, 10mA, 7.7mA, 5.5mA, 2.8mA respectively)DC1 - 9 levels------General SpecificationMemory5 groupsVoltage Rising Time0.1s - 999.9sTest Time Setting(AC/DC)0.2s - 999.9sWaiting Time(IR)0.2s - 999.9s------Time Accuracy±(1%+0.1s)Dimension(W×H×D)280mm×89mm×428mm/10kgInterfaceStandardHANDLER, RS232, USBDRV(PC interface), USBHOST(USB port) Detailed Photos

Th9310 AC/DC Hipot Tester Insulation Resistance Meter 1mohm-9999mohm
Th9310 AC/DC Hipot Tester Insulation Resistance Meter 1mohm-9999mohm
Th9310 AC/DC Hipot Tester Insulation Resistance Meter 1mohm-9999mohm
Th9310 AC/DC Hipot Tester Insulation Resistance Meter 1mohm-9999mohm
Th9310 AC/DC Hipot Tester Insulation Resistance Meter 1mohm-9999mohm
Th9310 AC/DC Hipot Tester Insulation Resistance Meter 1mohm-9999mohm
Th9310 AC/DC Hipot Tester Insulation Resistance Meter 1mohm-9999mohm
Th9310 AC/DC Hipot Tester Insulation Resistance Meter 1mohm-9999mohm

Th9310 AC/DC Hipot Tester Insulation Resistance Meter 1mohm-9999mohm

Th9310 AC/DC Hipot Tester Insulation Resistance Meter 1mohm-9999mohm

Th9310 AC/DC Hipot Tester Insulation Resistance Meter 1mohm-9999mohmPackaging & Shipping

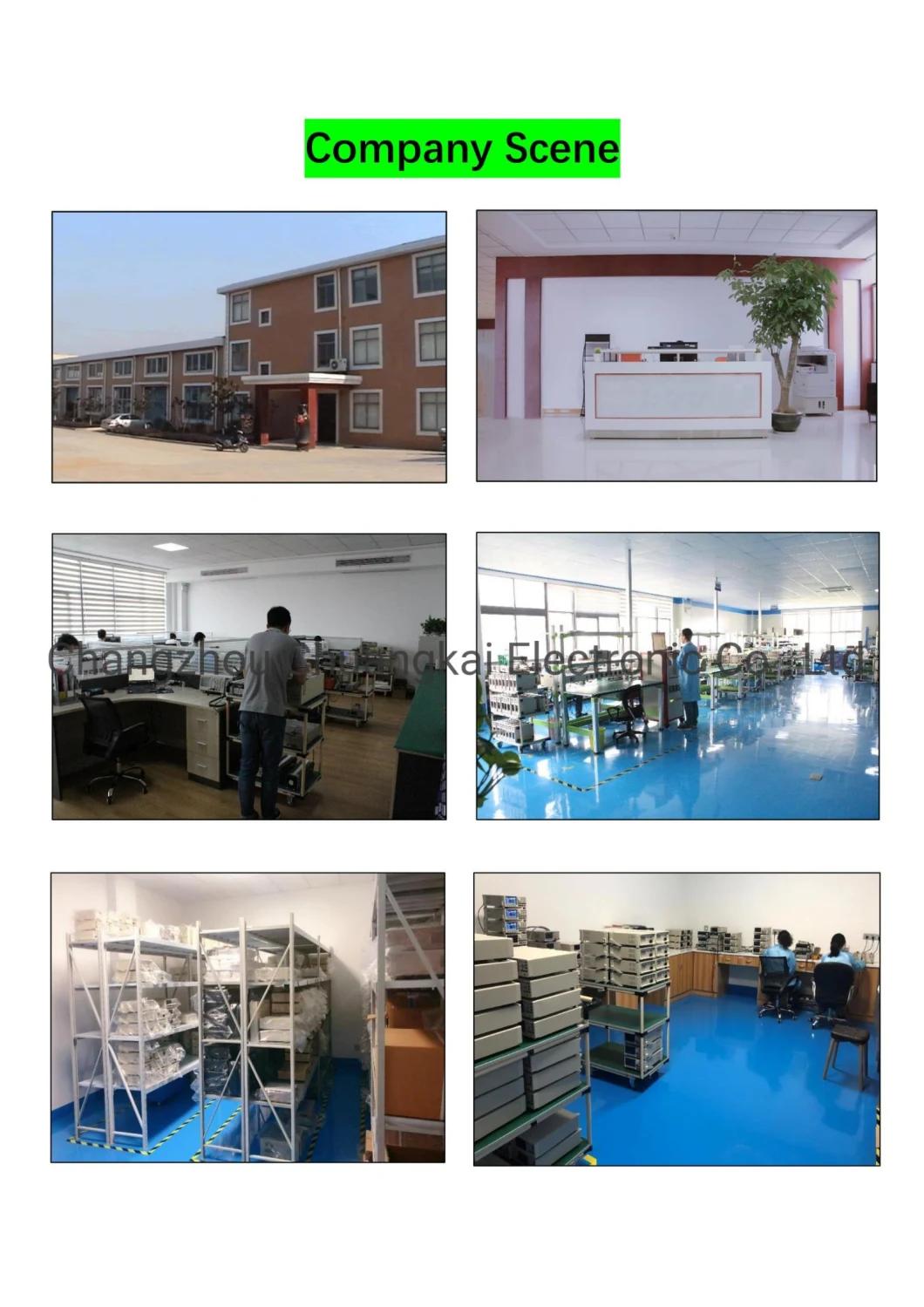

Company Profile
