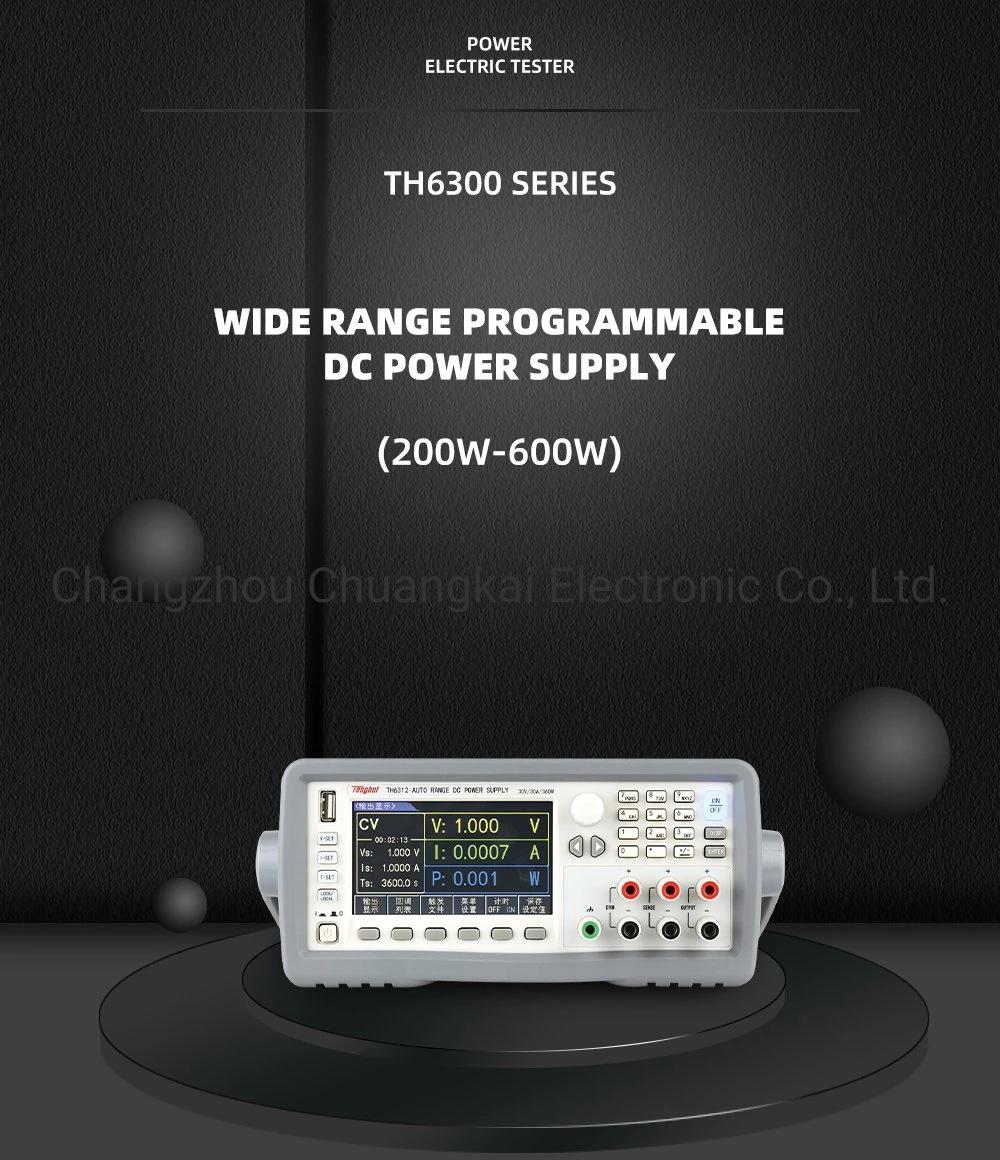

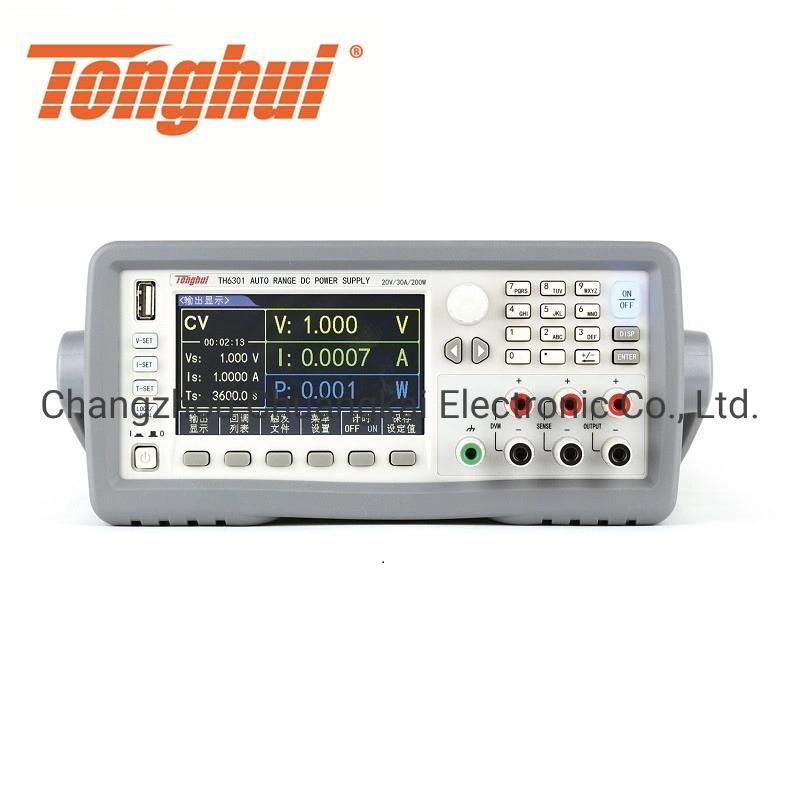

Th6301 Wide Range Programmable Linear DC Power Supply
Changzhou Chuangkai Electronic Co., Ltd.- Warranty：1 Year
- Product Name：Th6301 Wide Range Programmable Linear DC Power
Base Info
- Model NO.：TH6301
- Memory：10 Sets of Trigger Output, 100 Steps Per Group, 10
- Dimension (mm)：235(W) X111(H) X501(D)

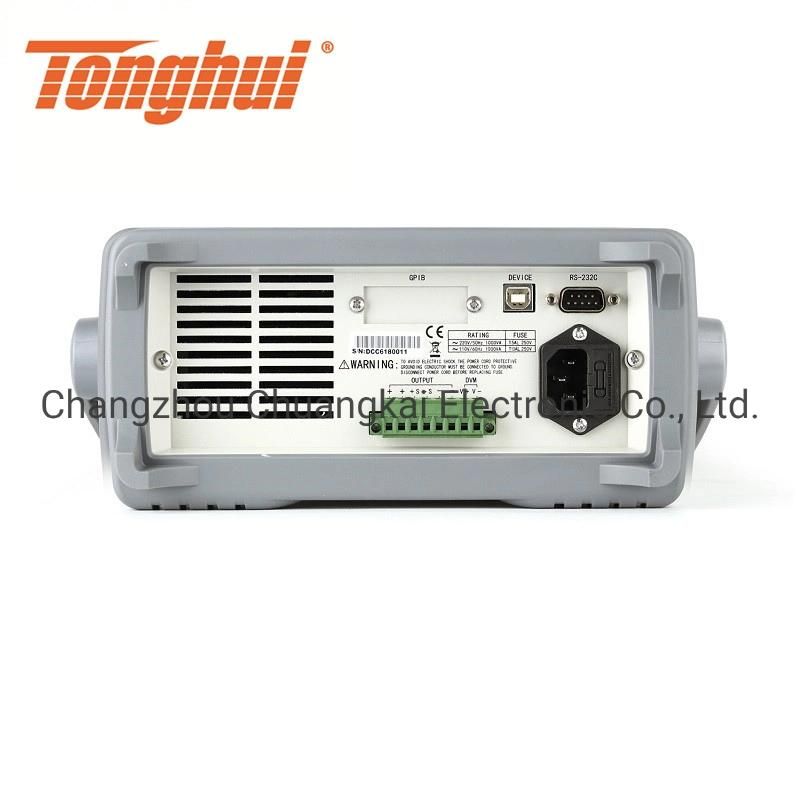

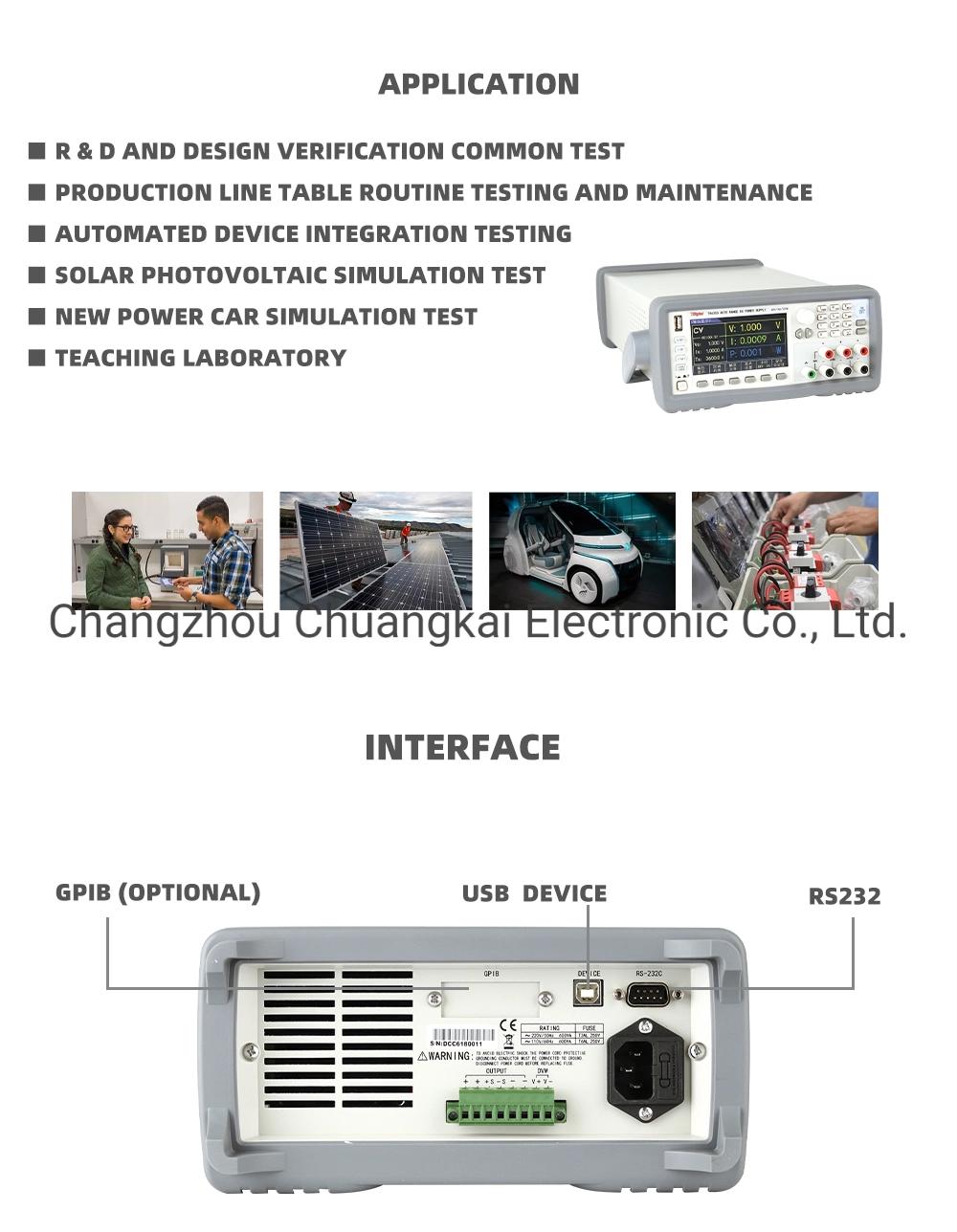

- Interface：RS232, USB Host, USB Device, Gpib (Optional)
- Application：R & D and Design Verification Common Test
- Transport Package：Carton
- Specification：57x48x36cm
- Trademark：CKT
- Origin：China
- HS Code：9030339000
- Production Capacity：3000 Sets Per Month
- Package size per unit product：57.00cm * 48.00cm * 36.00cm
- Gross weight per unit product：25.000kg
- Lead Time：10 days (1 - 1 set)
Description

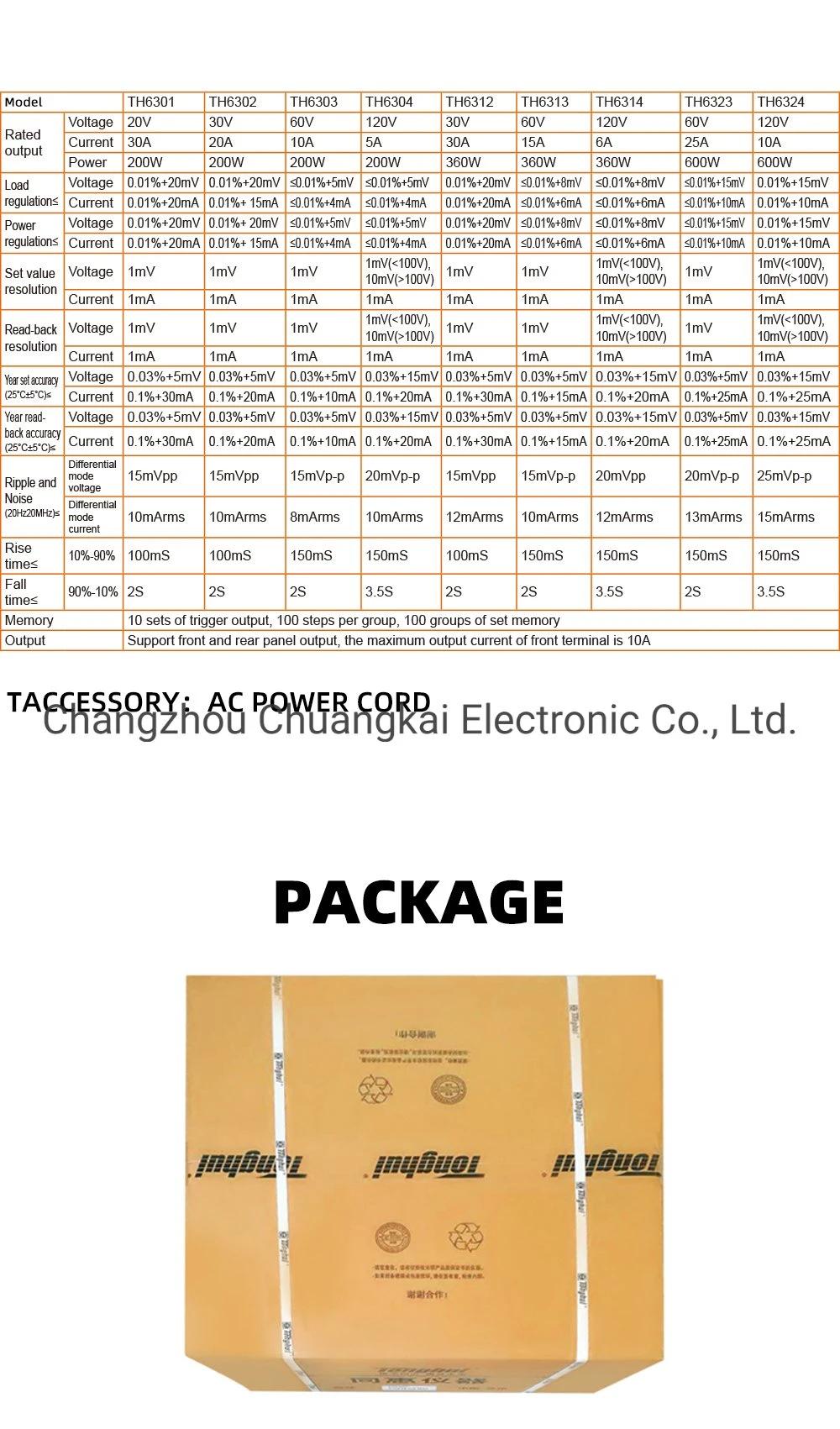

Rated Output Voltage 20V 30V 60V 120V 30V 60V 120V 60V 120V Current 30A 20A 10A 5A 30A 15A 6A 25A 10A Power 200W 200W 200W 200W 360W 360W 360W 600W 600W Load Regulation≤ Voltage 0.01%+20mV 0.01%+20mV ≤0.01%+5mV ≤0.01%+5mV 0.01%+20mV ≤0.01%+8mV ≤0.01%+8mV ≤0.01%+15mV 0.01%+15mV Current 0.01%+20mA 0.01%+ 15mA ≤0.01%+4mA ≤0.01%+4mA 0.01%+20mA ≤0.01%+6mA ≤0.01%+6mA ≤0.01%+10mA 0.01%+10mA Power Regulation≤ Voltage 0.01%+20mV 0.01%+ 20mV ≤0.01%+5mV ≤0.01%+5mV 0.01%+20mV ≤0.01%+8mV ≤0.01%+8mV ≤0.01%+15mV 0.01%+15mV Current 0.01%+20mA 0.01%+ 15mA ≤0.01%+4mA ≤0.01%+4mA 0.01%+20mA ≤0.01%+6mA ≤0.01%+6mA ≤0.01%+10mA 0.01%+10mA Set Value Resolution Voltage 1mV 1mV 1mV 1mV(<100V), 10mV(>100V) 1mV 1mV 1mV(<100V), 10mV(>100V) 1mV 1mV(<100V), 10mV(>100V) Current 1mA 1mA 1mA 1mA 1mA 1mA 1mA 1mA 1mA Read-back Resolution Voltage 1mV 1mV 1mV 1mV(<100V), 10mV(>100V) 1mV 1mV 1mV(<100V), 10mV(>100V) 1mV 1mV(<100V), 10mV(>100V) Current 1mA 1mA 1mA 1mA 1mA 1mA 1mA 1mA 1mA Year set Accuracy (25°C±5°C)≤ Voltage 0.03%+5mV 0.03%+5mV 0.03%+5mV 0.03%+15mV 0.03%+5mV 0.03%+5mV 0.03%+15mV 0.03%+5mV 0.03%+15mV Current 0.1%+30mA 0.1%+20mA 0.1%+10mA 0.1%+20mA 0.1%+30mA 0.1%+15mA 0.1%+20mA 0.1%+25mA 0.1%+25mA Year Readback Accuracy (25°C±5°C)≤ Voltage 0.03%+5mV 0.03%+5mV 0.03%+5mV 0.03%+15mV 0.03%+5mV 0.03%+5mV 0.03%+15mV 0.03%+5mV 0.03%+15mV Current 0.1%+30mA 0.1%+20mA 0.1%+10mA 0.1%+20mA 0.1%+30mA 0.1%+15mA 0.1%+20mA 0.1%+25mA 0.1%+25mA Ripple and Noise (20Hz20MHz)≤ Differential Mode Voltage 15mVpp 15mVpp 15mVp-p 20mVp-p 15mVpp 15mVp-p 20mVpp 20mVp-p 25mVp-p Differential Mode Current 10mArms 10mArms 8mArms 10mArms 12mArms 10mArms 12mArms 13mArms 15mArms Rise time≤ 10%-90% 100mS 100mS 150mS 150mS 100mS 150mS 150mS 150mS 150mS Fall time≤ 90%-10% 2S 2S 2S 3.5S 2S 2S 3.5S 2S 3.5S Memory sets of trigger output, 100 steps per group, 100 groups of set memory Output Support front and rear panel output, the maximum output current of front terminal is 10A Company Profile https://ckt2017.en.made-in-china.com/contact-info.html
Packaging & Shipping
Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.
FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.
Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.
Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.
Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.
Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.
For more questions, please feel free to send inquiries to us.
