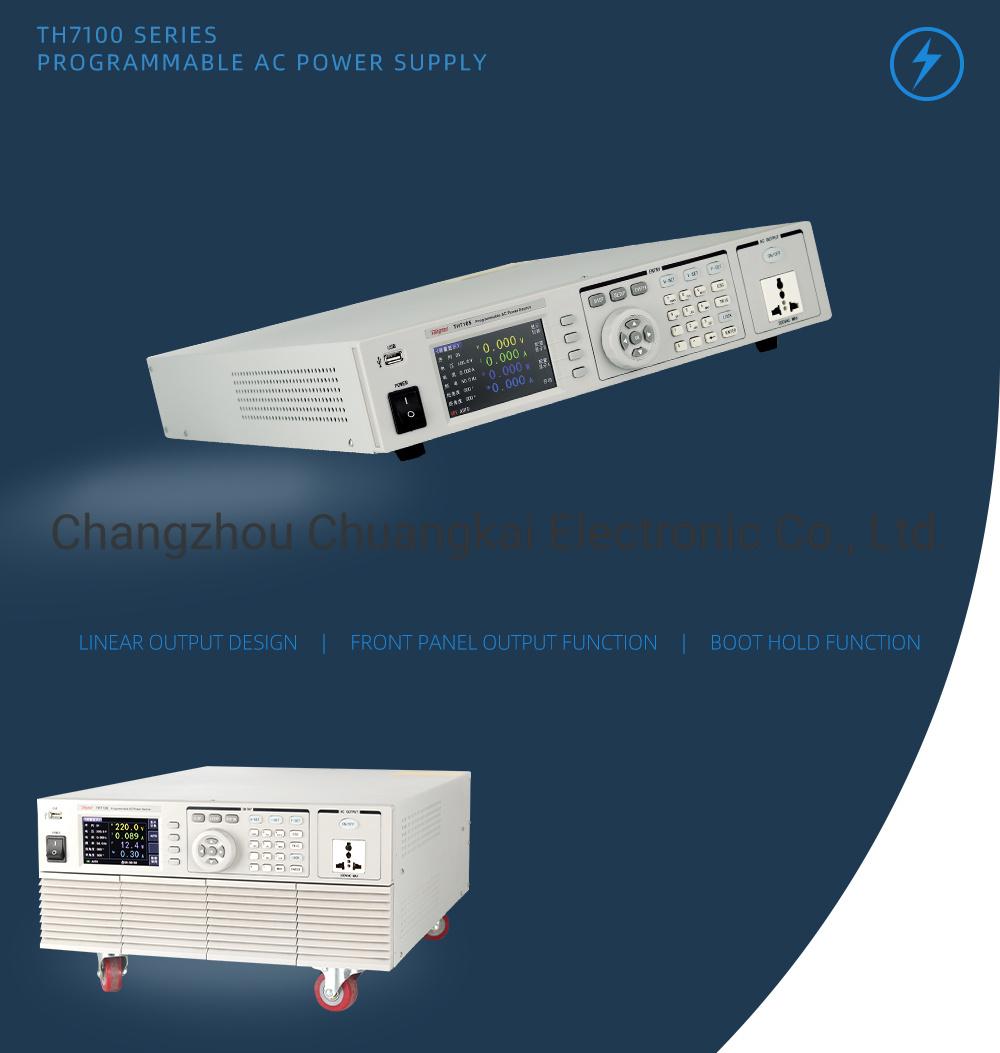

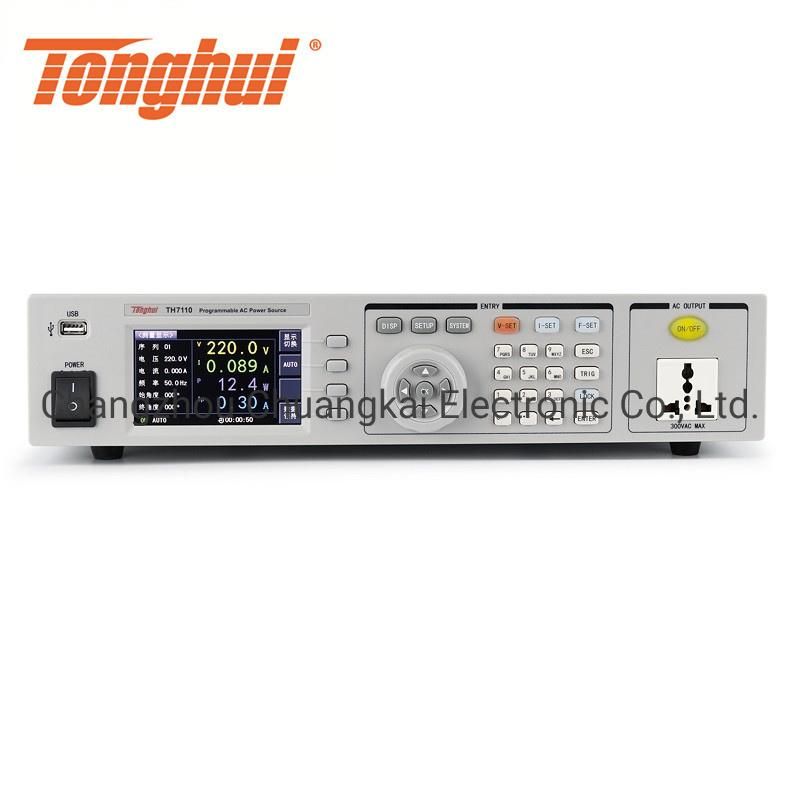

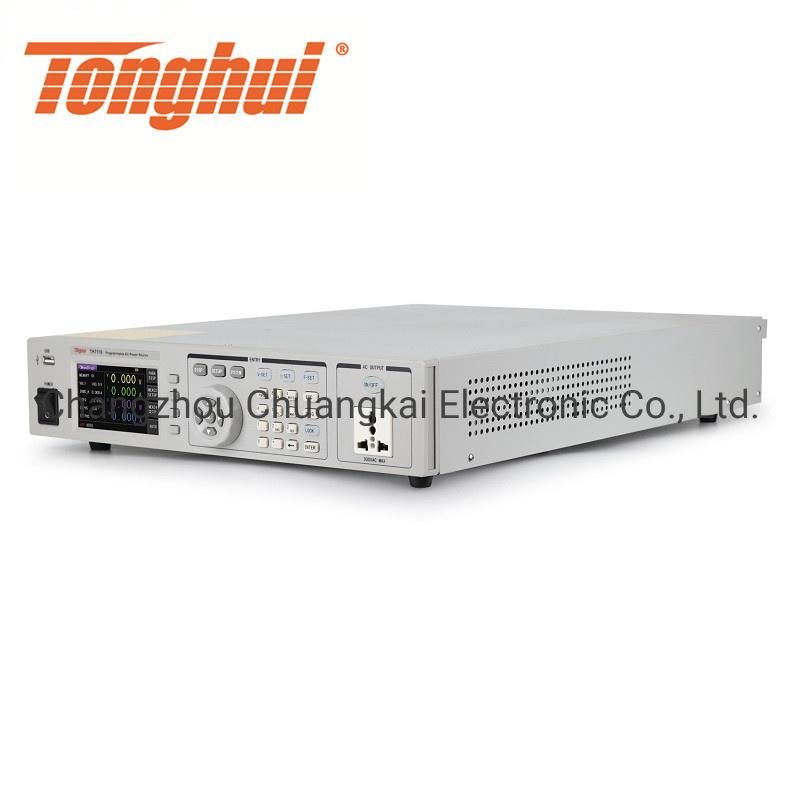

Th7110 Power Source 0-300V, 1000W, 45.0Hz-500Hz Programmable AC Power Supply
Changzhou Chuangkai Electronic Co., Ltd.- After-sales Service：Lifelong
- Warranty：1 Year
- Product Name：Th7110 Power Source 0-300V, 1000W, 45.0Hz-500Hz
- Rated Power：1000W
- Dimension (mm)：430(W)X88(H)X600(D)

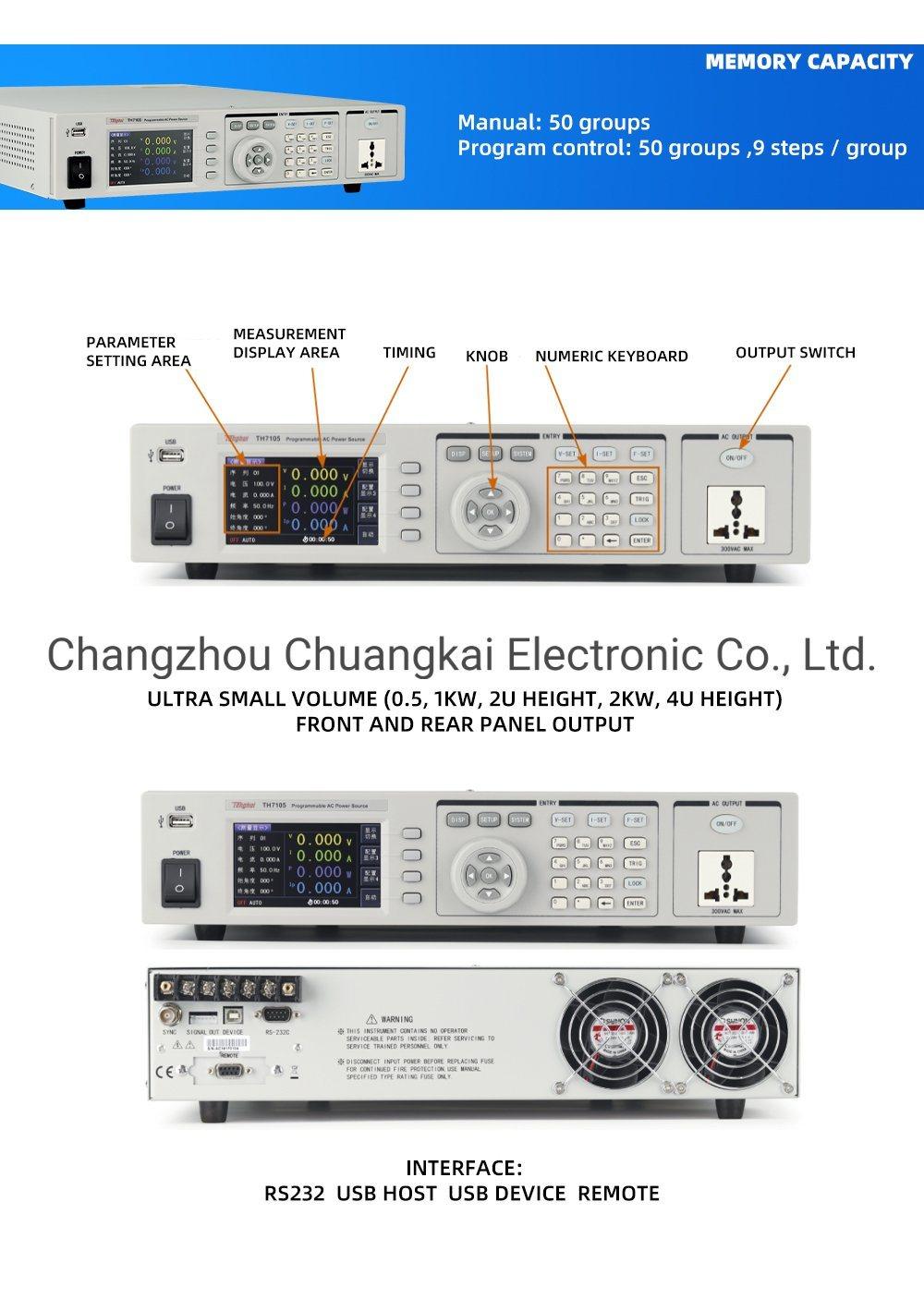

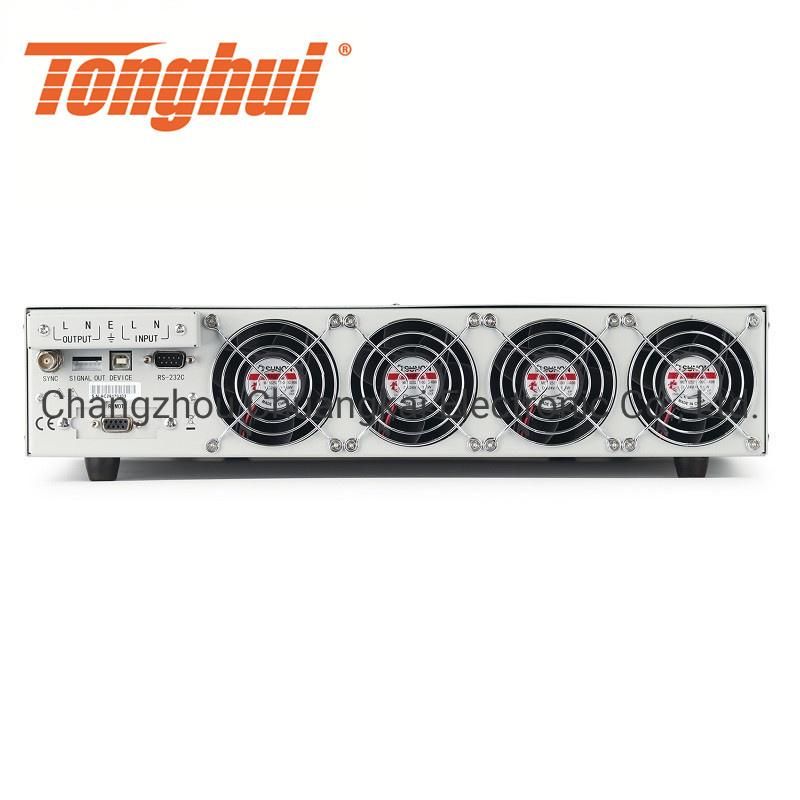

- Interface：RS232, USB Host, USB Device, Remote
Base Info
- Model NO.：TH7110
- Display：24-Bit Color 4.3-Inch 480 X 272 Color LCD Screen
- Feature：Linear Output Design
- Application：Motors and Transformers
- Transport Package：Carton
- Specification：75x65x45cm
- Trademark：CKT
- Origin：China
- HS Code：9030339000
- Production Capacity：3000 Sets Per Month
Description

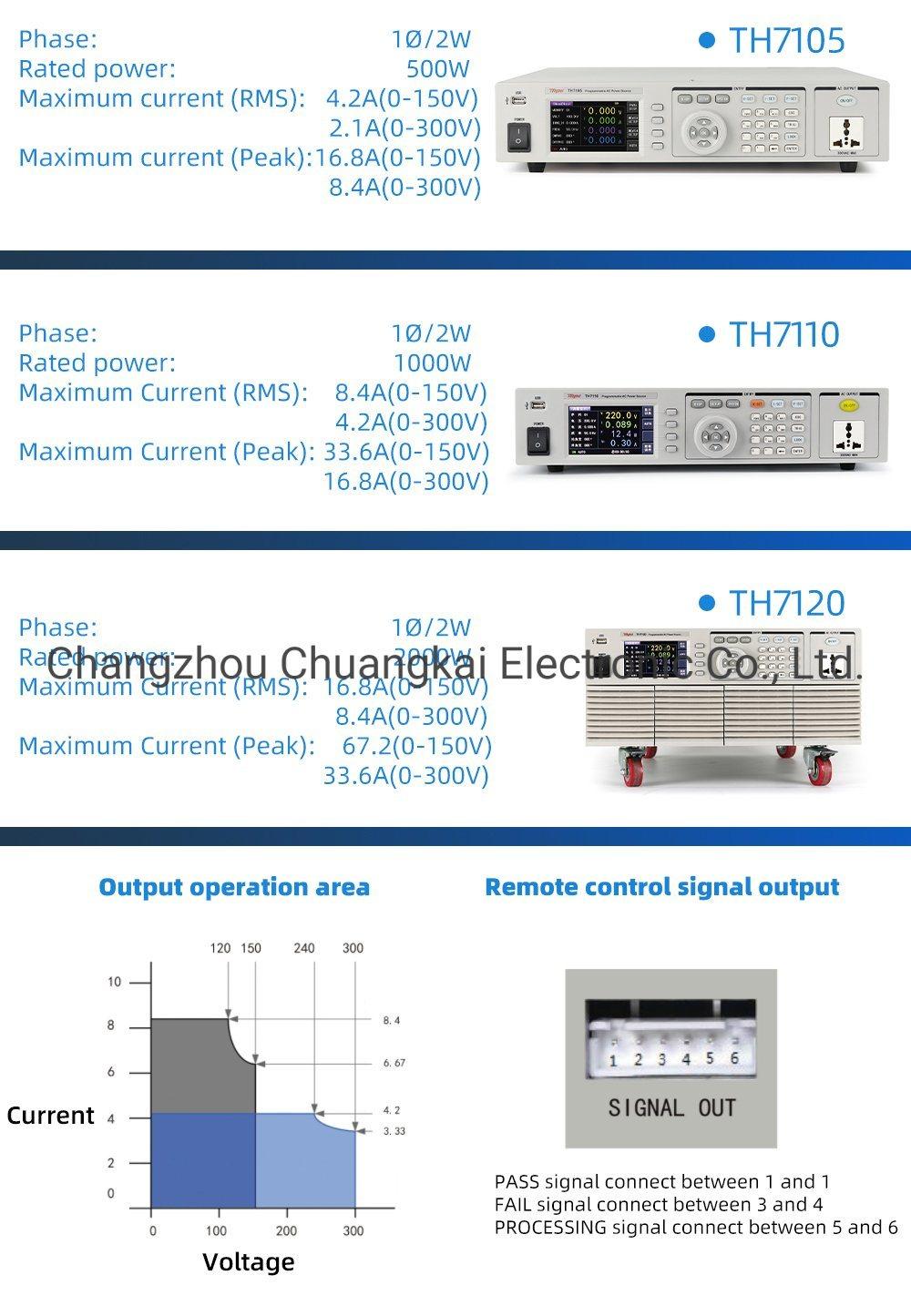

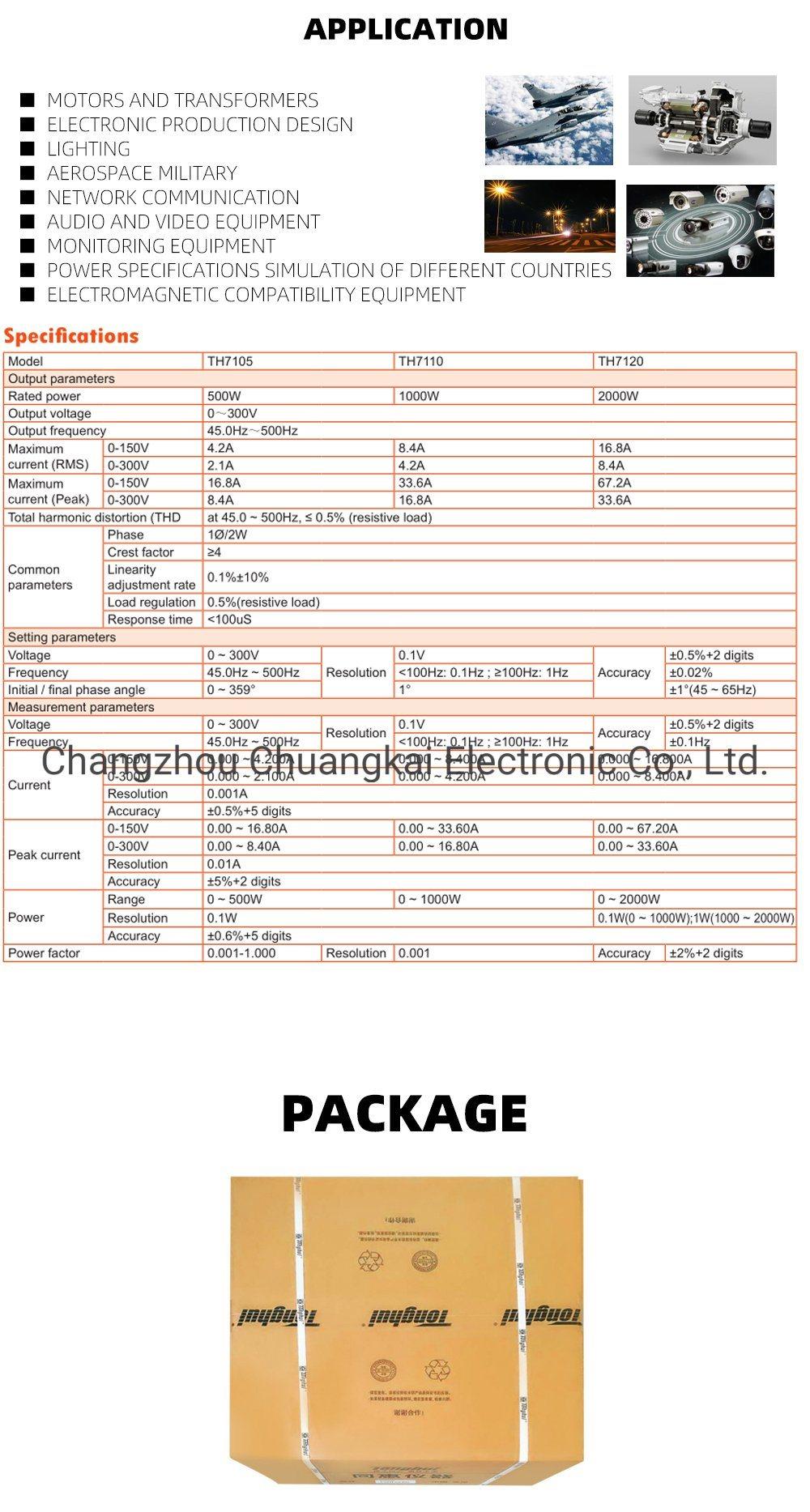

Model Company Profile https://ckt2017.en.made-in-china.com/product-list-1.htmlTH7105 TH7110 TH7120 Output Parameters Rated Power 500W 1000W 2000W Output Voltage 0~300V Output Frequency 45.0Hz~500Hz Maximum Current (RMS) 0-150V 4.2A 8.4A 16.8A 0-300V 2.1A 4.2A 8.4A MaximumCurrent (Peak) 0-150V 16.8A 33.6A 67.2A 0-300V 8.4A 16.8A 33.6A Total Harmonic Distortion (THD at 45.0 ~ 500Hz, ≤ 0.5% (resistive load) Commonparameters Phase 1Ø/2W Crest Factor ≥4 Linearity Adjustment Rate 0.1%±10% Load Regulation 0.5%(resistive load) Response Time <100uS Setting Parameters Voltage ~ 300V Resolution 0.1V Accuracy ±0.5%+2 digits Frequency 45.0Hz ~ 500Hz <100Hz: 0.1Hz ; ≥100Hz: 1Hz ±0.02% Initial / Final Phase Angle ~ 359° 1° ±1°(45 ~ 65Hz) Measurement Parameters Voltage ~ 300V Resolution 0.1V Accuracy ±0.5%+2 digits Frequency 45.0Hz ~ 500Hz <100Hz: 0.1Hz ; ≥100Hz: 1Hz ±0.1Hz Current 0-150V 0.000 ~ 4.200A 0.000 ~ 8.400A 0.000 ~ 16.800A 0-300V 0.000 ~ 2.100A 0.000 ~ 4.200A 0.000 ~ 8.400A Resolution 0.001A Accuracy ±0.5%+5 digits Peak Current 0-150V 0.00 ~ 16.80A 0.00 ~ 33.60A 0.00 ~ 67.20A 0-300V 0.00 ~ 8.40A 0.00 ~ 16.80A 0.00 ~ 33.60A Resolution 0.01A Accuracy ±5%+2 digits Power Range ~ 500W ~ 1000W ~ 2000W Resolution 0.1W 0.1W(0 ~ 1000W);1W(1000 ~ 2000W) Accuracy ±0.6%+5 digits Power Factor 0.001-1.000 Resolution 0.001 Accuracy ±2%+2 digits
Packaging & Shipping
Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.
FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.
Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.
Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.
Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.
Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.
For more questions, please feel free to send inquiries to us.
