• Model NO.：STNLD-4
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：No
• Display：Digital
• Control：No
• Weight：20kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stnld-4 Electric Motorized Cement Mortar Flow Tabl
• Application：The Flow Table Is Used for Determining The Flow of
• Total Weight of Pulsatory Part：4.35kg
• Drop Height：10mm
• Diameter of Round Table：300mm
• Flow Mould：70mm and 100mm Diameter X 60mm Deep.
• Tamper：20mm Diameter, 200mm Long
• Drop Times of Every Cycle：25 Times
• Drop Period：25 Seconds
• Power：220V 50Hz
• Transport Package：Wooden Case
• Specification：0.1CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STNLD-4 Accuracy Grade 1 Load Way Electronic Load Loading Method No Display Digital Control No Weight 20kgs Power Source AC220V Oil Cylinder Position No Product Name Stnld-4 Electric Motorized Cement Mortar Flow Tabl Application The Flow Table Is Used for Determining The Flow of Total Weight of Pulsatory Part 4.35kg Drop Height 10mm Diameter of Round Table 300mm Flow Mould 70mm and 100mm Diameter X 60mm Deep. Tamper 20mm Diameter, 200mm Long Drop Times of Every Cycle 25 Times Drop Period 25 Seconds Power 220V 50Hz Transport Package Wooden Case Specification 0.1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

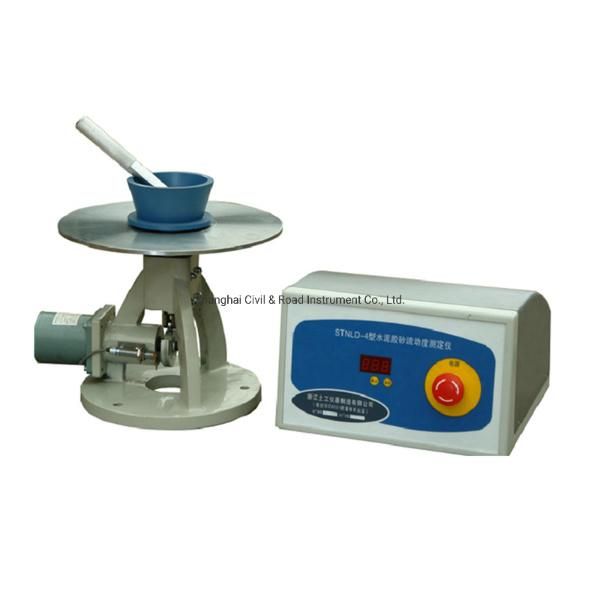

STNLD-4 Electric Motorized Cement Mortar Flow Table

(EN 459-2 | EN 1015-3 | ASTM C230 | UNI 7044 | EN 13279-2 | ASTM C1437)

Application:Used to determine the consistency of mortars and building lime. Two versions available: conforming to EN and ASTM standards, manual and motor operated.

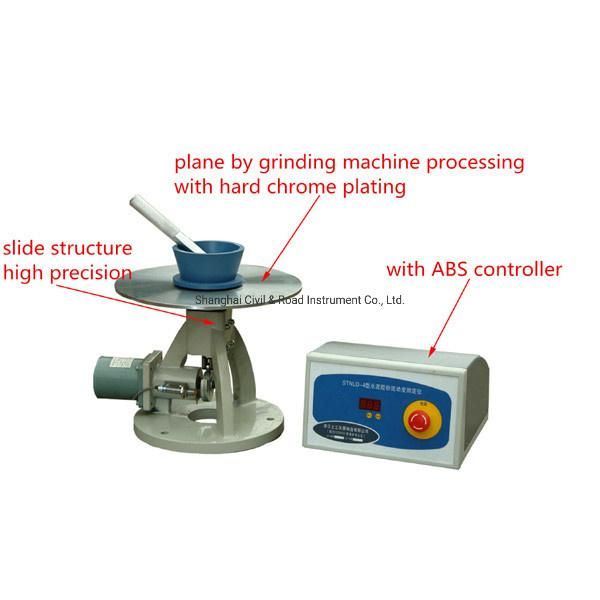

Motor operated models are driven by a motor speed reducer and the number of drops are preset on the digital counter, which stops automatically the machine at the end of the cycle. Supplied complete with flow mould and tamper.



Total Weight of Pulsatory Part	4.35Kg±0.15Kg
Drop height	10mm±0.2mm
Diameter of round table	300mm±1mm
Flow mould	70mm and 100mm diameter X 60mm deep
Tamper	20mm diameter, 200mm long
Vibration frequency (HZ)	1
Drop times of every cycle	25 times
Drop period	25 seconds
Power	220V 50Hz
Dimension	400×400×690 mm
Net weight	25kg
