• Model NO.：GD-R3033
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Measurement Items：Gasoline and Diesel for Vehicles
• Octane Number Standards：ASTM D2699-86, ASTM D2700-86
• Cetane Number Standards：ASTM D4737-03, ASTM D613, En ISO 5165
• Operating Condition：Temperature -10ºC~+40ºC
• Measuring Range of Octane Number：40-120 (on)
• Allowable Measurement Error of Octane Nu：±0.5
• Measuring Time：<20s
• The Measurement Range of Cetane Number：20-100 (Cn)
• Allowable Measurement Error of Cetane Nu：±1
• Output Mode：LCD Display, Print Output
• Transport Package：Wooden Case
• Specification：Easy to shipping
• Trademark：GOLD
• Origin：China

Overview Product Description

The principle of the octane number / cetane number tester is to measure the insulation permeability and electromagnetic induction charge characteristics of the octane number of gasoline and the cetane number of diesel. By measuring the dielectric properties of the oil and comparing it with the known data stored in the memory, the result can be determined. The sensing device is very accurate and can measure tiny changes in dielectric parameters. So it is a very good choice to detect petroleum product parameters such as octane number and cetane number.

SpecificationsMeasurement itemsgasoline and diesel for vehiclesOctane number standardsASTM D2699-86, ASTM D2700-86Cetane number standardsASTM D4737-03, ASTM D613, EN ISO 5165Operating conditiontemperature -10ºC~+40ºC, relative humidity 30%~81%R.H., atmospheric pressure 64~106kPaMeasuring range of octane number40-120 (ON)Allowable measurement error of octane number±0.5The floating range of the measurement result of the octane number±0.2The measurement range of cetane number20-100 (CN)Allowable measurement error of cetane number±1The floating range of the measurement result of the cetane number±0.5CNMeasuring time<20SThe threshold at which the battery voltage is too lowV2.5Output modeLCD display, print output Certifications

Company Profile

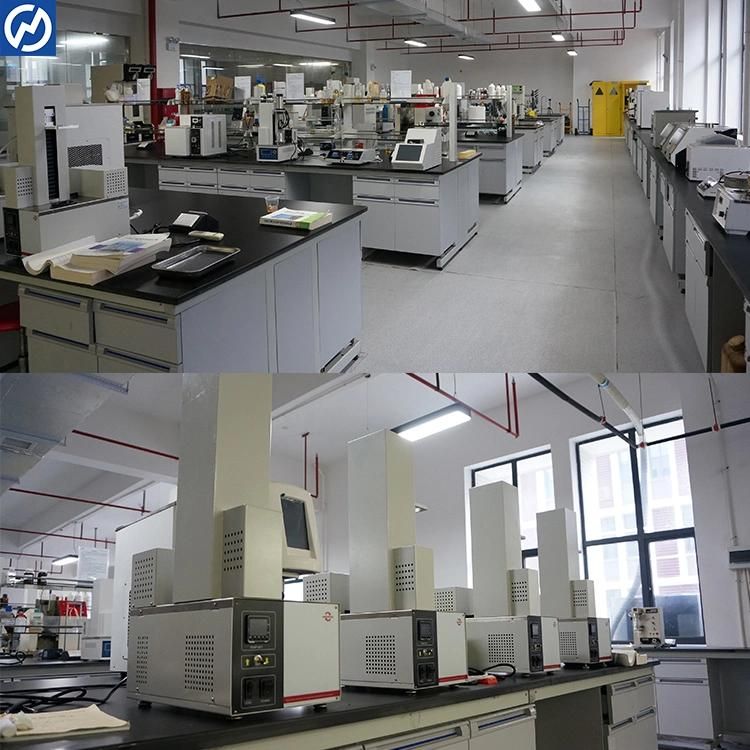

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd. which is mainly design and manufacture the petroleum testing instrument, asphalt testing equipment and related lab equipment.After more than 20 years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument and asphalt testing instrument. We have developed sales channels in many countries such as UAE, Saudi Arabia, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.And we have gained strong advantage and high reputation in international market.
