Manual Type Oil Bath Viscometer ASTM D445

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Power Source：AC220V
  • Product Name：Gd-265c Manual Type Oil Bath Viscometer ASTM D445
  • Auto./Manual：Manual
  • Temperature Range：Ambient~100celsius
  • Temp. Control Precision：0.01celsius
  • Temp. Control Method：Continuous

Base Info

  • Model NO.：GD-265C
  • Single/Double Glass Tank：Double
  • Sample Quantity：4
  • Timing Function：No
  • Auto-Calculate and Print：No
  • Size：530*400*670mm
  • Transport Package：Wooden Case for Gd-265c
  • Trademark：GOLD
  • Origin：Chongqing, China
  • Production Capacity：100 Sets, Month

Description

Product nameManual Type Oil Bath Viscometer ASTM D445Power supplyAC(220±10%)V, 50Hz±5%Heating power1600WStirring motor6W, 1200RPMTemperature control rangeAmbient to 100ºCTemperature control accuracy±0.1ºCConstant temperature bath20L,double shell structureWorking environmentAmbient temperature: room temperature~35ºC
Relative humidity: ≤85%Temperature sensorRTD, Pt100Maximum power consumption1800WCapillary viscometer tubes (Pinkevitch viscometer)7 pieces in total, inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mmDimension530*400*670mm

Note: This instrument is equipped with 7 pieces of Pinkevitch viscometer tubes. We can customize instrument equipping with Cannon-Fenske Opaque(or Routine)Viscometer tubes according to customer's requirements.

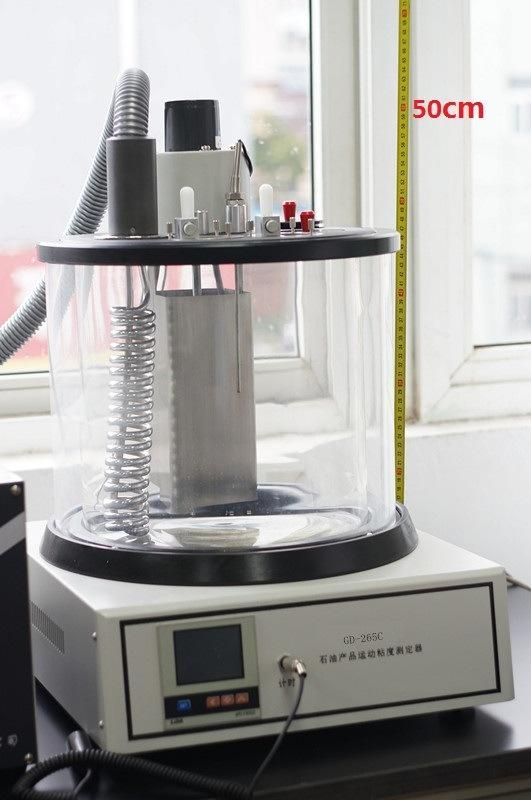

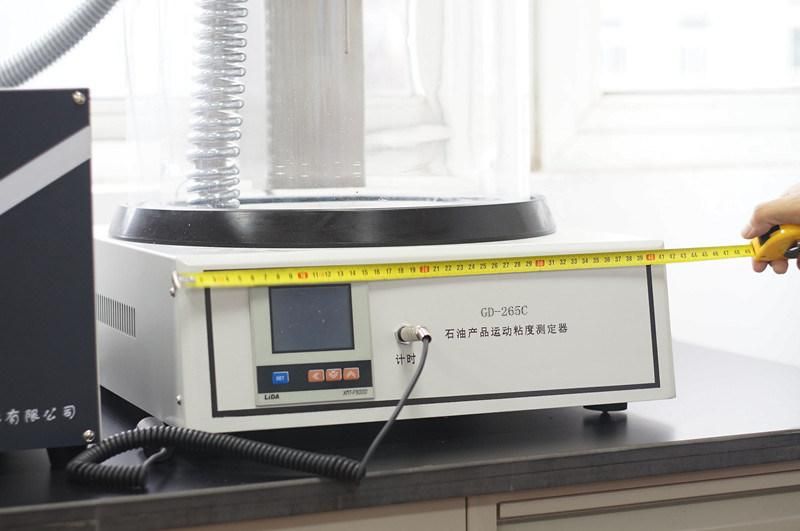

Detail Images:

Manual Type Oil Bath Viscometer ASTM D445Manual Type Oil Bath Viscometer ASTM D445


Our Certificate:
Manual Type Oil Bath Viscometer ASTM D445
