Transformer Turns Ratio Tester Vector Group Testing Equipment TTR

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Ratio Measurement Range：1-10000
  • Group Measurement：1-12
  • Phase Measurement Error：1 Degree
  • Test Voltage：0~80V, Frequency 50Hz
  • Power Supply：AC220V ± 10%, 50Hz,60Hz
  • Environment Temperature：0-50°c

Base Info

  • Model NO.：GDBC-901
  • Humidity：≤85%R
  • Dimension：58*45*36cm
  • Weight：22kg
  • Transport Package：Standard Wooden Case
  • Trademark：GOLD
  • Origin：China
  • Production Capacity：1000 Sets , Month

Description

Item NameGDBC-901 Single Phase and Three Phase Transformer Turns Ratio TTR TesterRatio Measurement Range1-10000Group Measurement1-12Phase Measurement Error1 degreeRatio Measurement Error1-2000 ± 0.2%RDG   2000-10000  ± 0.5%RDGTest Voltage0~80V, frequency 50HzPower SupplyAC220V ± 10%, 50Hz/60HzEnvironment Temperature0-50°CHumidity≤85%RDimension58*45*36CMWeight22Kg

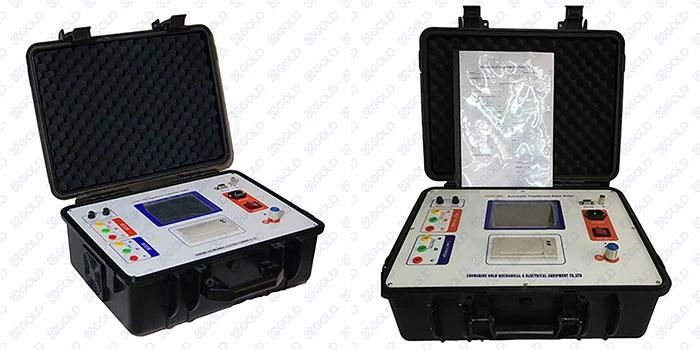

  • Product Show:
Transformer Turns Ratio Tester Vector Group Testing Equipment TTR
