• Model NO.：HD-B609B-S
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Product Name：Tensile Strength Tester
• Products：Tensile Testing Machine
• Load Accuracy：Within 0.5%
• Motor：Panasonic Servo Motor
• Screw：High Precise Ball Screw
• Load Cell：Celtron Sensor
• Load Resolution：1,250, 000
• Test Speed：0.1 to 500 mm,Min
• Elongation Accuracy：0.001mm
• Stroke：1000mm
• Transport Package：Strong Wooden Case
• Specification：ASTM D903 GB,T16491 GB,T1040 GB,T8808 GB13022 GB,T
• Trademark：HAIDA
• Origin：China
• HS Code：9024109000
• Production Capacity：1000sets,Year

ItemDescriptionFrame capacity200kgLoad cell brandGermany brand load cell for high accuracy
200kg (5,10,50,100kg are optional)Load accuracy0.5% F.SControl systemLCD with build-in printer /PC with windows 7 systemMotorPanasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rodForce readingkgf, Ibf, N, KN, T etcVertical test space900mm including fixtureTest speed0.1~500mm/min (adjustable)SoftwareTM 2101Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strainData displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…Safety featuresE-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
Applications:

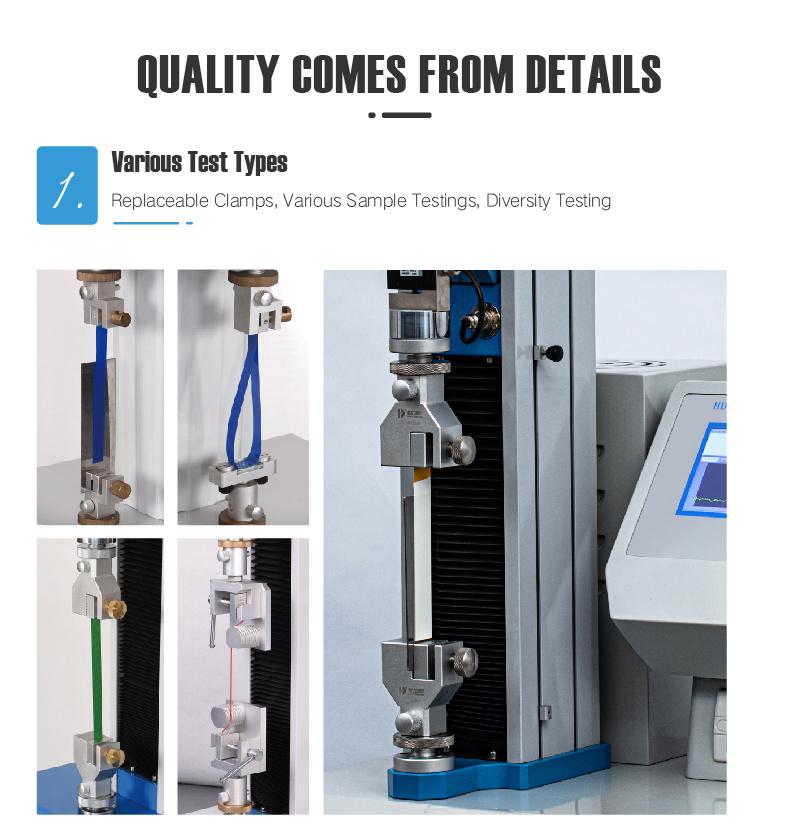

1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.Deformation under defined load: Test deformation under defined load of tested sampleLoad under defined deformation: Test load under defined deformation of tested sampleSoftware can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Product Features

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)

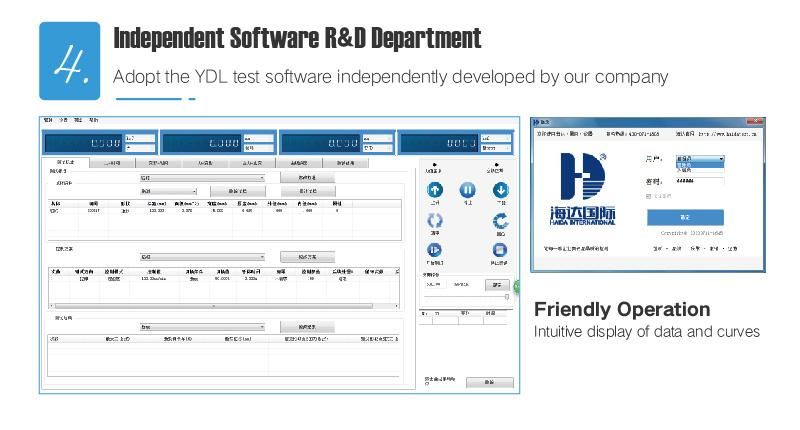

2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.

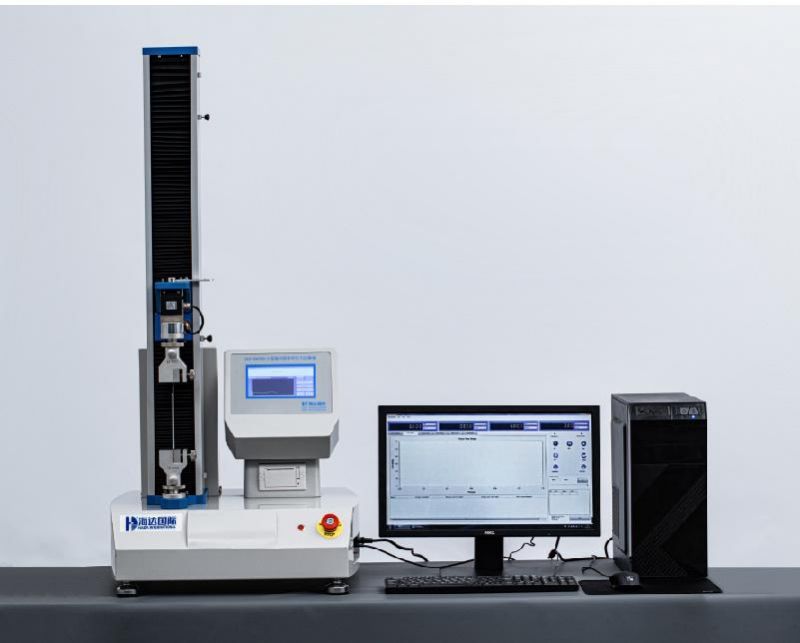

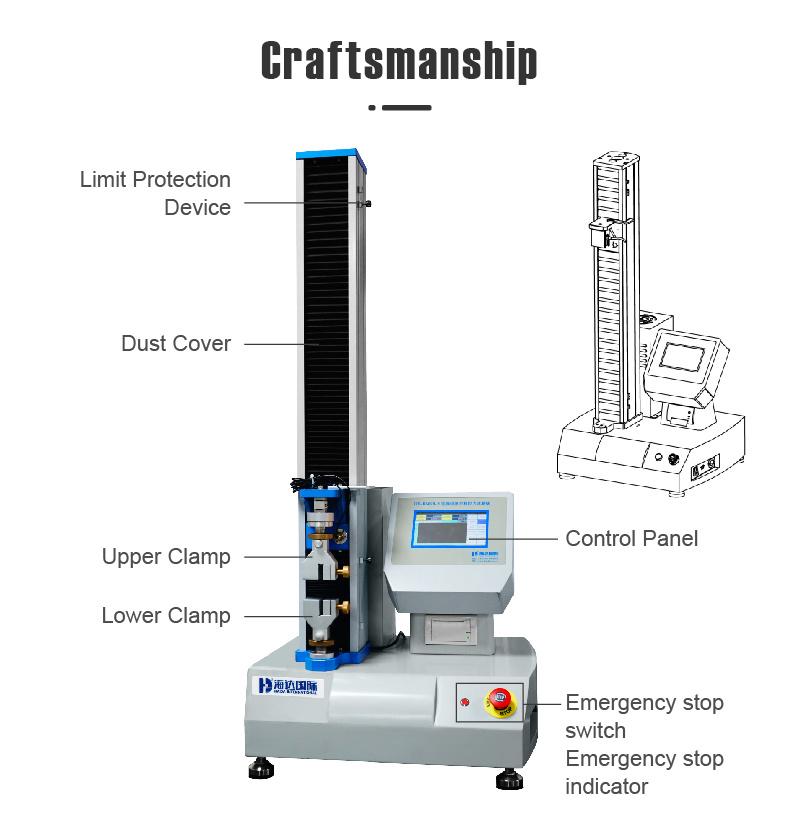

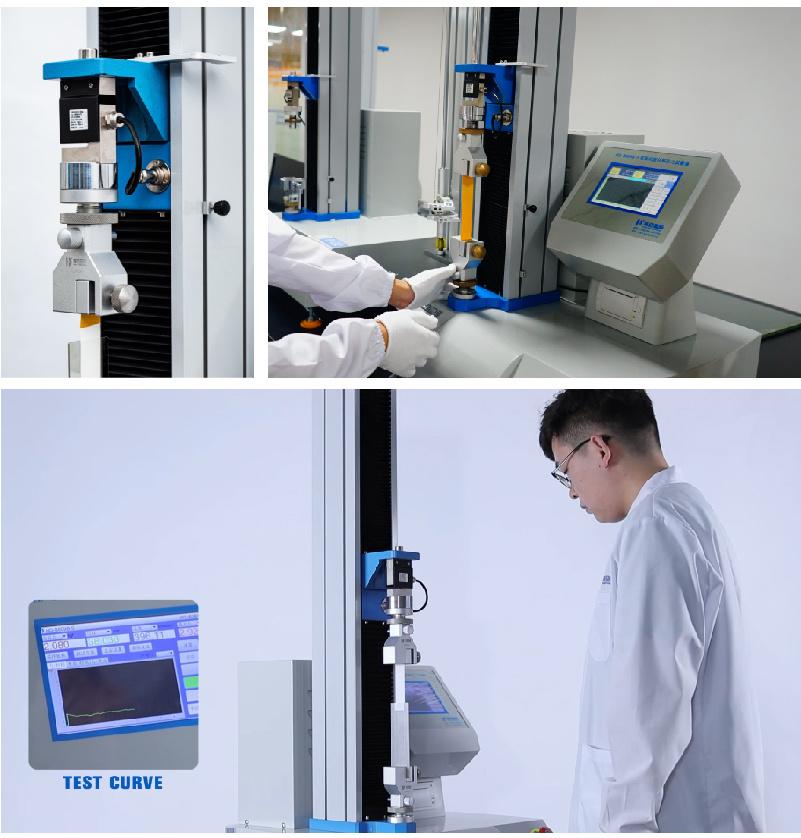

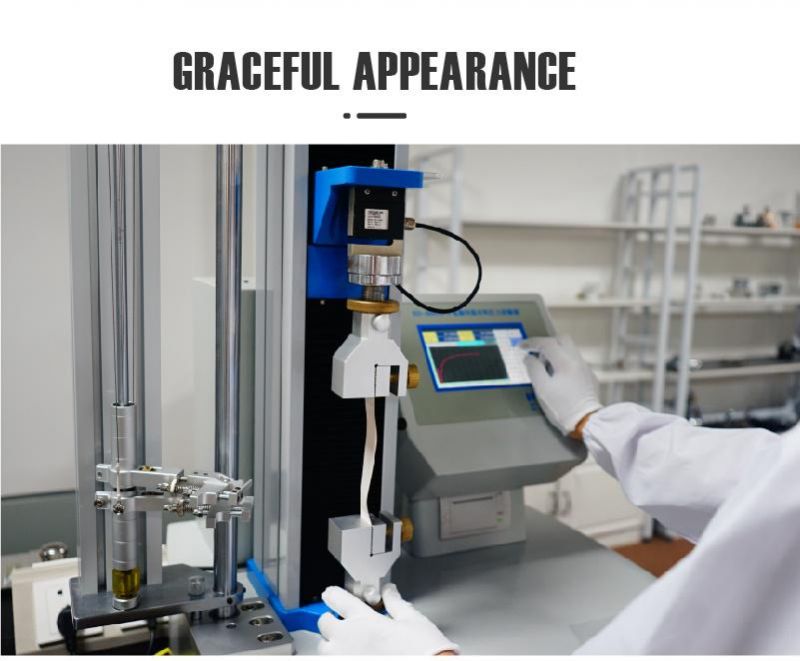

Product Images:

The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
