Electronic Package Surface Zero Drop Testing Machine

Dongguan Haida Equipment Co., Ltd.
  • Type：Package Face Drop Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：HD-A520-3
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Design Criteria：ISO, JIS, Ista
  • Drop Height：300~1300 mm
  • Drop Panel Area (W× L)：1700× 1400 mm
  • Arm Size：290× 240× 8 mm
  • Transmit Approach：Electric Transmission
  • Horsepower：1,2 HP
  • Control Box Size (L*W* H)：350* 350* 1100 mm
  • Outside Dimension (L* W* H)：1700* 1400* 2015 mm
  • Specimen Max. Weight：60 Kg
  • Drop Flat Deviation：< 1 Degree
  • Transport Package：Strong Wooden Case
  • Specification：ISO 2248, JIS Z0202-87, GB,T4857.5-92
  • Trademark：Haida
  • Origin：China
  • HS Code：9024109000
  • Production Capacity：50 Sets Per Month

Description

Max. sample weight100KGSample sizeThree kinds of carton size in your file "Inq Haida"Drop platform areaAs per three kinds of carton size in your file "Inq Haida"Drop height100-1000mmDrop testCorners, edges , faces of sampleDrive modeMotor driveProtection deviceInduction type protection devicePanel material45# steel, solid steel plateArm material45# steelHeight displayDigitalOperate modePLCDriving modeTaiwan Linear slider and copper guideDrop methodElectromagnetic and pneumatic comprehensive supportMachine dimension (L×W×H)2000*1900*2450mm including control box (estimated)PackageStrong wooden casePackage Dimension (L×W×H)2300*2200*2650mm (estimated)Package Weight800KGPowerSingle phase, 220V, 50/60 Hz(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Design standard
ASTM D5276-98, ISTA 1A (free drop)

ISTA 1A:
Relationship of weight and drop height

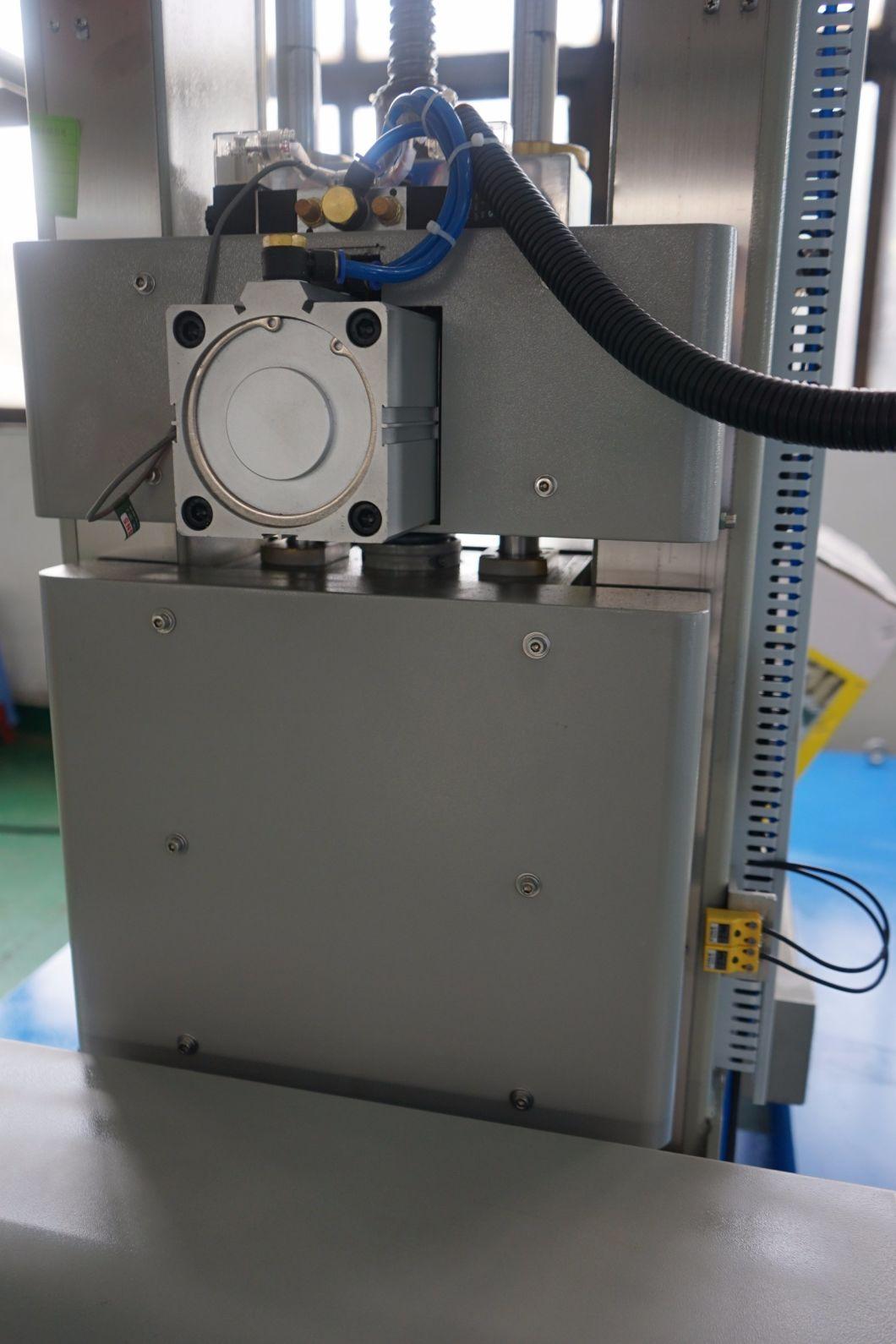

Electronic Package Surface Zero Drop Testing Machine

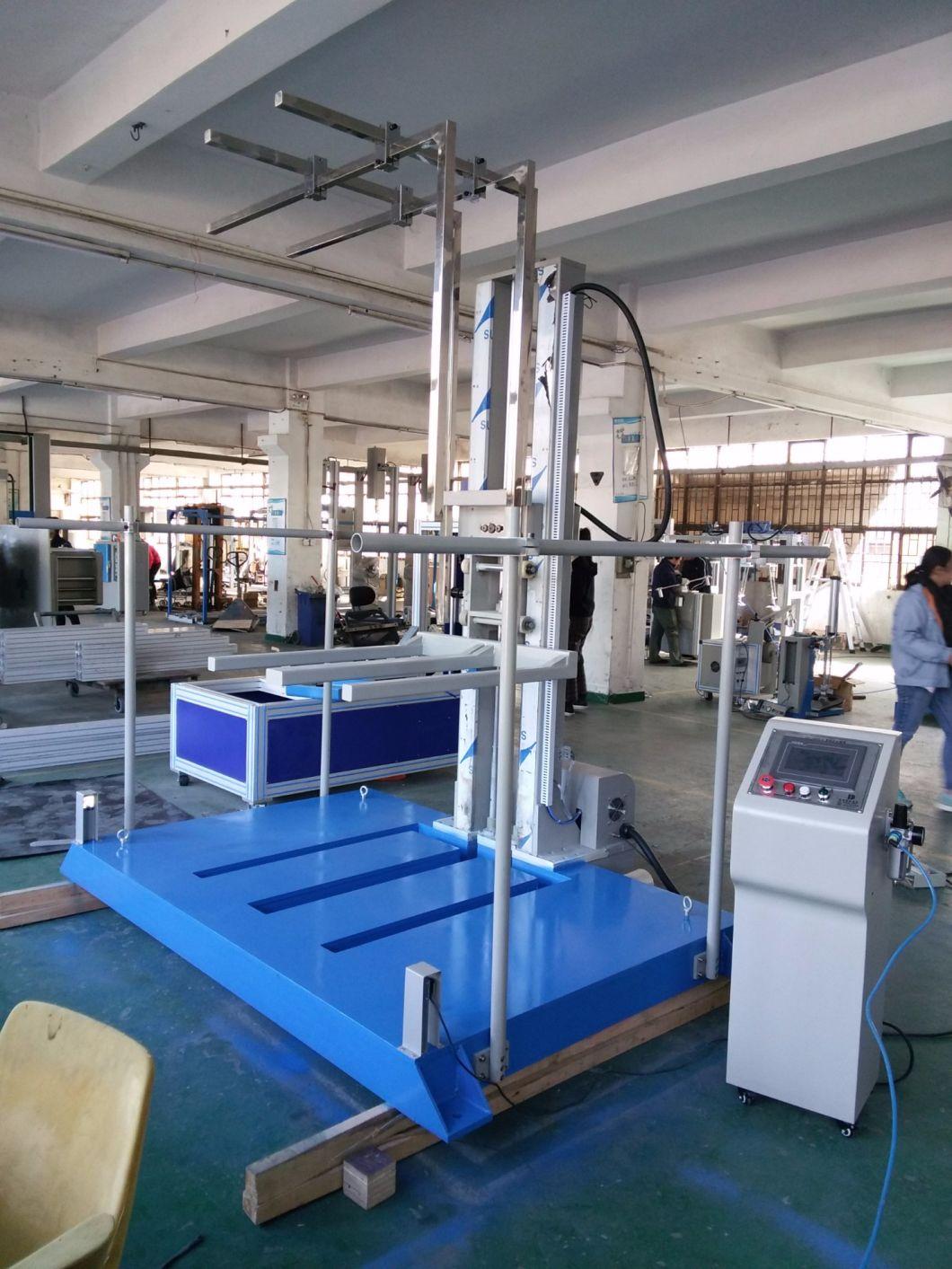

Electronic Package Surface Zero Drop Testing Machine

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Electronic Package Surface Zero Drop Testing Machine
