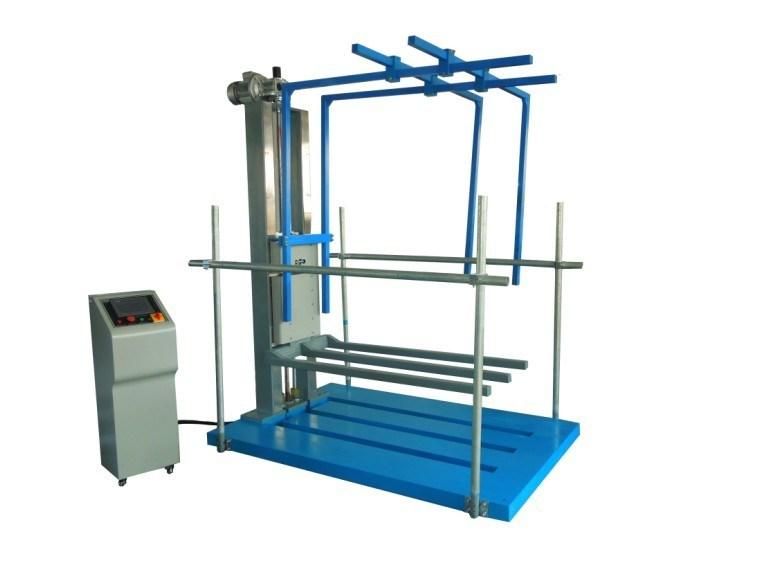

High Precise Single Arm Package Zero Drop Tester (HD-A520-3)

Dongguan Haida Equipment Co., Ltd.
  • Type：Drop Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：HD-A520-3
  • Control：Computer Control
  • Weight：500-1000Kg
  • Power Source：AC220V
  • Drop Height：400-1300mm
  • Load：100kg
  • Design Criteria：ISO, JIS
  • Drop Method：Surface, Edge and Angle
  • Max Weight：60kg or Custom
  • Drop Flat Error：Less Than 1 Degree
  • Display Method：Digital Height Indicator (Optional)
  • Control Box Size：350X350X1100 Mm
  • Transmit Approach：Electric Transmission
  • Specimen Max. Weight：60 Kg(Can Be Customized)
  • Transport Package：Strong Wooden Case
  • Specification：ISO 2248, JIS Z0202-87, GB,T4857.5-92 Ista-1a
  • Trademark：HAIDA
  • Origin：China
  • HS Code：9024109000
  • Production Capacity：1000sets,Year

Description

Max. sample weight100KGSample sizeThree kinds of carton size in your file "Inq Haida"Drop platform areaAs per three kinds of carton size in your file "Inq Haida"Drop height100-1000mmDrop testCorners, edges , faces of sampleDrive modeMotor driveProtection deviceInduction type protection devicePanel material45# steel, solid steel plateArm material 45# steelHeight displayDigitalOperate modePLCDriving modeTaiwan Linear slider and copper guideDrop methodElectromagnetic and pneumatic comprehensive supportMachine dimension (L×W×H)2000*1900*2450mm including control box (estimated)PackageStrong wooden casePackage Dimension (L×W×H)2300*2200*2650mm (estimated)Package Weight800KGPowerSingle phase, 220V, 50/60 Hz

(The table parameters for the company Standard Model parameters, we support customer customization parameters)
 High Precise Single Arm Package Zero Drop Tester (HD-A520-3)

Design standard
ASTM D5276-98, ISTA 1A (free drop)

ISTA 1A:
Relationship of weight and drop height

After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

FAQ
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
