• Model NO.：HD-A502S-1200
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Maximum Capacity：2 Ton
• Operation Mode：PC
• Load Cell：Celtron Sensor
• Test Space(L*W*H)：1200*1200*1200mm
• Speed of Compression：10 ± 3 Mm,Min
• Load Accuracy：≤0.5%
• Load Resolution：1,100, 000
• Dimension (L*W*H)：2000*1200*2030mm
• Power：1phase, 220V, 50Hz
• Unit (Switchable)：Kg, Lb, N
• Transport Package：Strong Plywood Case
• Specification：TAPPI, JIS, ASTM-D
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024800000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-A502S-1200 Control Computer Control Weight 500-1000Kg Power Source AC220V Maximum Capacity 2 Ton Operation Mode PC Load Cell Celtron Sensor Test Space(L*W*H) 1200*1200*1200mm Speed of Compression 10 ± 3 Mm/Min Load Accuracy ≤0.5% Load Resolution 1/100, 000 Dimension (L*W*H) 2000*1200*2030mm Power 1phase, 220V/ 50Hz Unit (Switchable) Kg, Lb, N Transport Package Strong Plywood Case Specification TAPPI, JIS, ASTM-D Trademark Haida Origin Dongguan, China HS Code 9024800000 Production Capacity 150 Sets Per Month

Product Description

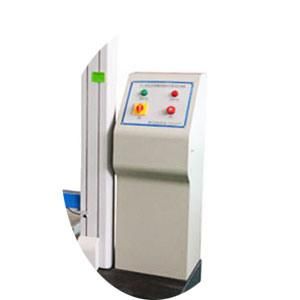

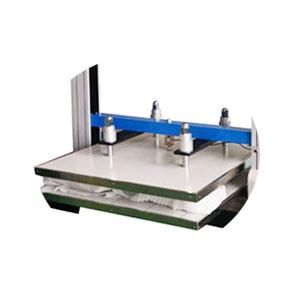

Computer Control Corrugated Box Compression Tester
 Application scope:

Corrugated board boxes and Cartons, Plastic Packaging, Wooden box

Standards:

Meets ISO2872ISO2874GB/T4857.3GB/T4857.4

Standard features:


Item	Description
Max. Force	2000 kg (20KN)
Load cell	1 load cell for highest accuracy
Control system	Windows 7, RS-232 interface
Motor	Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Load cell Resolution	1/250,000
Load Precision	within ±0.25%
Parallelism of Platens	Parallel within ±2.5mm
Effective test area	1000×1200×1000mm
Test speed	10 ±3mm/min (0.01~200mm/min adjustable)
Software	TM 2101
Data display	Load, displacement, speed, loading rate and elapsed time
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

(The table parameters for the company Standard Model parameters, we support customer customization parameters)
 Appliactions:

1. Deformation under defined load: Test deformation under defined load of various corrugated cartons and beehive crates
2. Load under defined deformation: Test load under defined deformation of various corrugated cartons and beehive crates
3. Maximum load: test the maximum load of various corrugated cartons and beehive crates
4. Stacking test: stack test of various corrugated cartons and beehive crates
5. Cyclic test: dynamic strain according to strength & stroke
6.



5. Features of Computer Control Compression Tester: 1. Using a single-screen operation; do not need to switch the screen;
2. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;

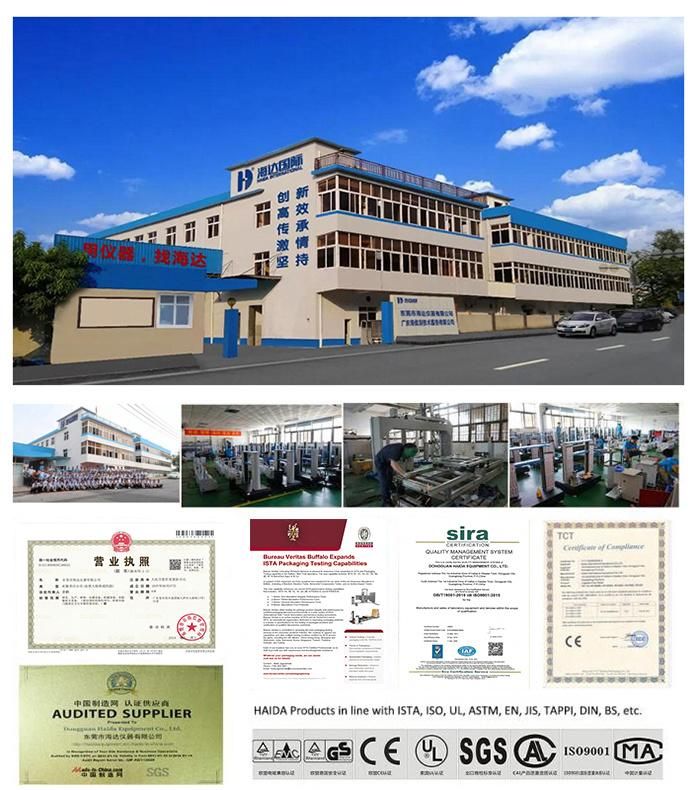

Our Company:
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.


  Thanks Letter from one of our Customers:

Our Services
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1). Pre-service
    24 Hours online service for your consult.
    Help choose right model, and a series  of service, person, advise.
2). Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convenient.
    --Promptly production and delivery,inform you in time.
3). After sale service
   --1 year warranty service and all life maintenance.
   --Technical Engineer are available for oversea training.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan

FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
