• Model NO.：HD-A502S-1200
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Maximum Capacity：2 Ton
• Stacking Test Equipment：Kg, Lb, N
• Power：1phase, 220V, 50Hz
• Dimension (L*W*H)：2000*1200*2030mm
• Operation Mode：PC
• Load Resolution：1,100, 000
• Load Cell：Celtron Sensor
• Test Space(L*W*H)：1200*1200*1200mm
• Speed of Compression：10 ± 3 Mm,Min
• Load Accuracy：≤0.5%
• Transport Package：Strong Plywoode Case
• Specification：TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024800000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-A502S-1200 Control Computer Control Weight 500-1000Kg Power Source AC220V Maximum Capacity 2 Ton Stacking Test Equipment Kg, Lb, N Power 1phase, 220V/ 50Hz Dimension (L*W*H) 2000*1200*2030mm Operation Mode PC Load Resolution 1/100, 000 Load Cell Celtron Sensor Test Space(L*W*H) 1200*1200*1200mm Speed of Compression 10 ± 3 Mm/Min Load Accuracy ≤0.5% Transport Package Strong Plywoode Case Specification TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 Trademark Haida Origin Dongguan, China HS Code 9024800000 Production Capacity 150 Sets Per Month

Product Description

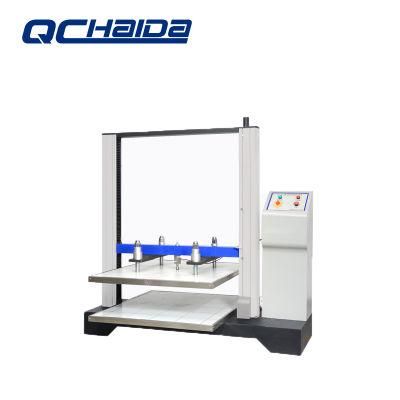

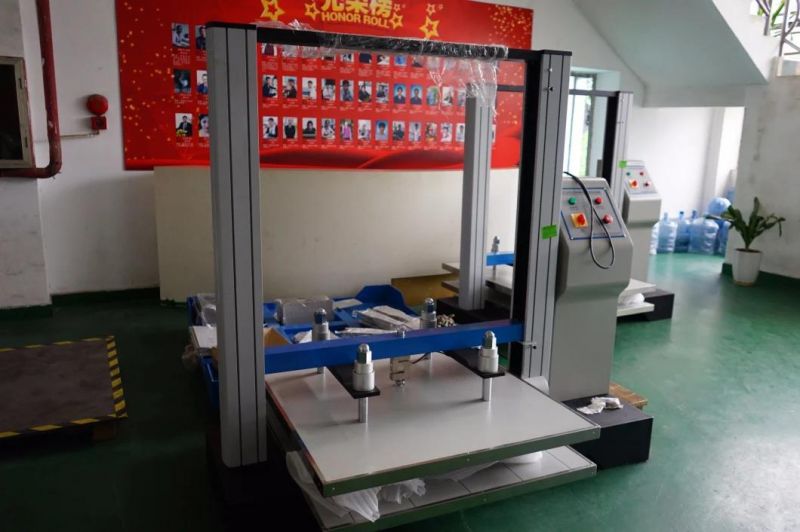

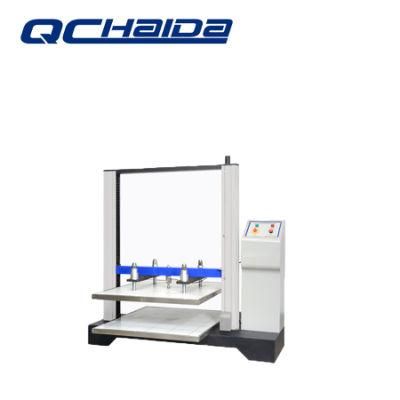

Corrugated Package Compression Strength Test Machine
1. Usage:

Corrugated Package Compression Strength Test Machine mainly used in the various types of secondary normal size corrugated carton compressive strength test or other material made of compressive strength of packaging container FCL compressive strength test and test, such as food and beverage instant noodles packing, cosmetic packaging, beer packing, cereals and oil and so on the packaging. The instrument control accuracy is high, the development of advanced technology, for the present domestic the most cost-effective one universal carton compression tester.


2. Design criteria:
TAPPI-T804JIS-20212GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3GB/T4857.4
Note: this tester can conform to but not limit to all the standards above, for more standards conformance, please contact us

Appliactions:
Corrugated board boxes and Cartons, Plastic Packaging, Wooden box

3. Test Principles:

Test samples in test enginery two parallel between linking piece, and then even to put pressure on record load and linking piece displacement, until the test sample fracture, or load or linking piece a says to the expected value so far.

4. The Main Parameters of Compression Strength Test Machine:
(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Item	Description
Max. Force	2000 kg (20KN)
Load cell	1 load cell
Control system	Microcomputer control, button type
Motor	AC motor, guild rod
Force reading	kgf, Ibf, N etc
Load cell Resolution	1/100,000
Load Precision	within ±0.5%
Parallelism of Platens	Parallel within ±5mm
Effective test area	1000×1200×1000mm
Test speed	10 ±3mm/min
Report output	Mini-printer, thermal printing
Data display	Load, displacement, speed
Safety features	E-Stop Over-load protection Upper and lower limit switches


5. Features of Corrugated Package Compression Strength Test Machine:

1. Using a single-screen operation; do not need to switch the screen;

2. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;

4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;

5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;

6. With a variety of measurement units, Measure In Imperial & Metric are switchable;

7. With self-return & auto-correction function;

8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;

9. With the user-defined Test methods; with experimental data analysis function;

10. It can do test of compression, bending, pressure holding & fatigue.

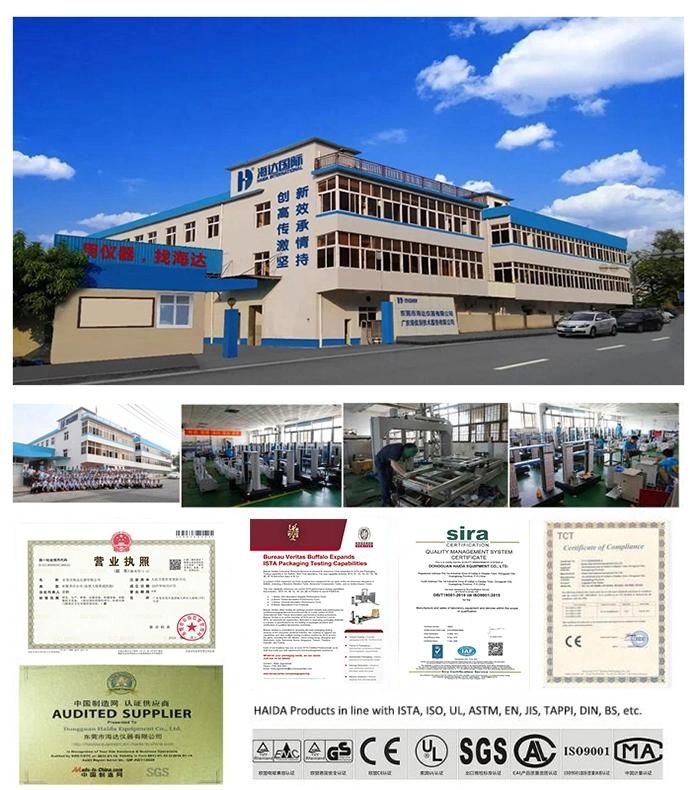

The Introduction Of Haida
