• Model NO.：HD-P306
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Certificate：ISO9001: 2008
• Test Heads：8 Head
• Warranty：One Year
• Delivery Time：20 Days After Receive The Deposit
• Transport Package：Strong Wooden Case
• Specification：ISO9001: 2008
• Trademark：Haida
• Origin：Dongguan, China
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-P306 Control Computer Control Weight 0-100Kg Power Source AC220V Certificate ISO9001: 2008 Test Heads 8 Head Warranty One Year Delivery Time 20 Days After Receive The Deposit Transport Package Strong Wooden Case Specification ISO9001: 2008 Trademark Haida Origin Dongguan, China Production Capacity 150 Sets/Month

Product Description

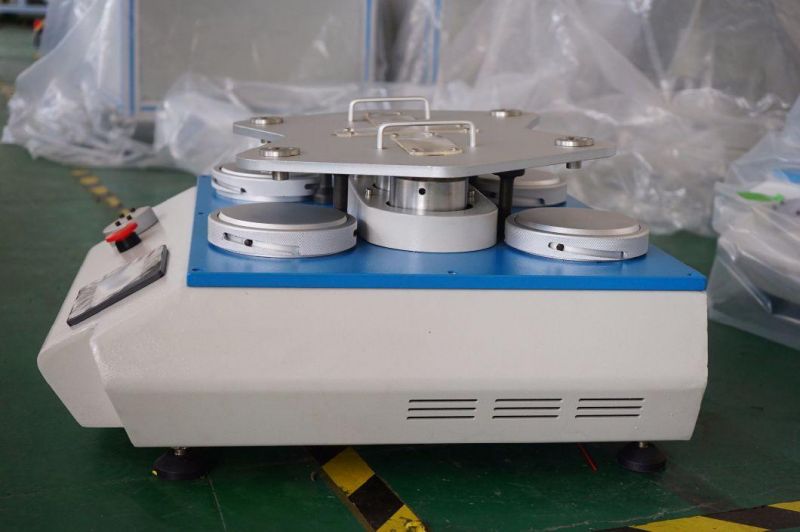

                             HD-P306 Martindale Abrasion Tester with 8 Heads
Description:
Martindale Abrasion tester - 8 heads mainly applies to the resistance test of textile and outside layer, lining or underlayer of the footware or the similar fabric. Testing the samples as per the standard, test can be classified as dry test and wet test. And test the samples Lissajous-oriented for the regulated times, then observe the difference between it and the original samples and decide the grade of scrubbing resistance.

Technical indicators:

Model	HD-P306
Test specimen	44± 1mm× 8
Load	595G, 795G
Counter/Timer	LCD, 0-999999
Machine Size	580×640×360 mm (L×W×H)
Weight	67kg
Power	AC220V, 1.5A
Design criteria	ISO 5470   DIN 53863/53865   BS 3424/5690   IWTO 40-88   BS EN 388/530   IWSTM 112/196    ASTM 4966/4970   IS 12673  JIS  L1096   SFS 4328   PR EN ISO 12947-1   PR EN ISO 12945-2   SATRA TM31   ISO 20344  GB/T  21196-2007, GB/T  4802.2, GB/T  13775, FZ/T 20020    GB/T 20991 6.12

Standard:
ISO 5470 DIN 53863/53865 BS 3424/5690 IWTO 40-88 BS EN388/530 IWSTM 112/196 ASTM 4966/4970 IS 12673 JIS L1096 SFS 4328 PR EN ISO 12947-1 PR EN ISO 12945-2 SATRA TM31 ISO 20344



The Introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.





Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Customer feedback:
