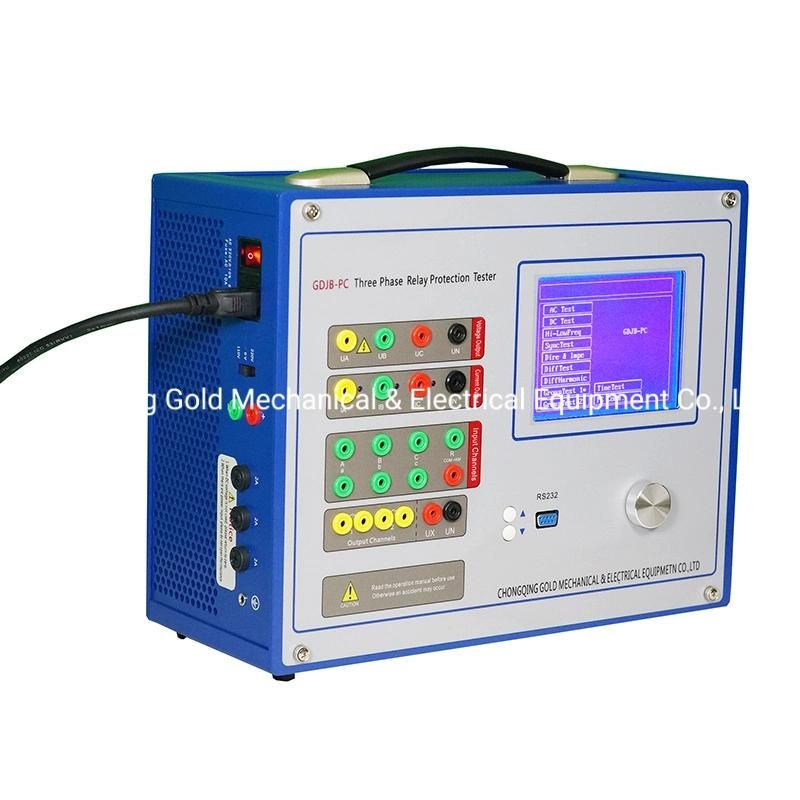

Gdjb-PC3 Universal Electrical Electronic Relay Protection Test Equipment
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Warranty：12 Months
- Max Diameter of Workpiece：Na
- Mass Scope of Workpiece：<900kg
- Type：Universal Testing Machine
- Maxcapacity：Relay Test Equipment
- Accuracy Grade：0.5
Base Info
- Model NO.：GDJB-PC3
- Load Way：Electronic Load
- Loading Method：Relay Test Equipment
- Display：Digital
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Oil Cylinder Position：Relay Test Equipment
- Apparatus：Microprocessor-Based Relay Protection Device
- Application：Automatic Relaying Protection Testing Equipment
- Function：Micro Computer Controlled Protection Relay Tester
- Device：LCD Display Electrical Protection Relay Test Set
- Binary Output：DC 220V,0.2A, AC 220V,0.5A
- Power Supply：AC220V ± 10%, 50Hz,60Hz
- Environment Temperature：0~50c
- Humidity：No More Than 85%Rh
- Instrument Weight：<18kg
- Transport Package：Standard Venner Case
- Specification：ISO Certificate
- Trademark：Gold
- Origin：China Chongqing
- HS Code：90308490
- Production Capacity：1000 PCS,Month
Description
5. Similar Models
| Model | GDJB-III | GDJB-PC |
| DC Voltage Output | 0~350V | 0~±140V |
| AC Voltage Output | 0~380V | 0~150V |
| DC Current Output | 0~10A | 0~±10A |
| AC Current Output | 0~10A/0~100A | 0~120A |
| Test Precision | 0.5%RDG+0.05%FS | 0.5%RDG+0.05%FS |
| Time Counter | 0~9999s | 0.1~9999s |
| Time counter Resolution | 1ms | 0.1ms |
| Power Supply | AC 220V±10% 50/60Hz | AC 220V±10% 50/60Hz |
| Environment Temperature | 0~50°C | 0~50°C |
| Dimension | 550×410×340mm | 400×300×180mm |
| Weight | 33kg | 18kg |
