• Model NO.：GDHL-200A
• Test Accuracy：No More Than 0.5%
• Storing Data：80groups
• Displayer：LCD
• Warranty：1 Year
• Transport Package：Standard Wooden Case
• Specification：ISO
• Trademark：Gold
• Origin：Chongqing of China
• HS Code：9030849000
• Production Capacity：200 PCS,Month

Basic Info.

Model NO. GDHL-200A Test Accuracy No More Than 0.5% Storing Data 80groups Displayer LCD Warranty 1 Year Transport Package Standard Wooden Case Specification ISO Trademark Gold Origin Chongqing of China HS Code 9030849000 Production Capacity 200 PCS/Month

Product Description

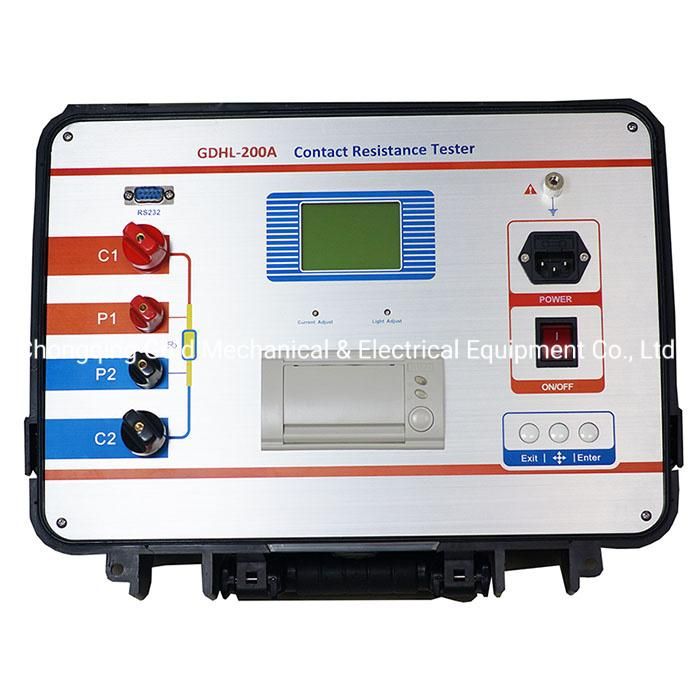

GDHL-200 High-Voltage Circuit Breaker Contact Resistance Tester

Introduction:

1. Contact resistance tester is used to test the contact resistance of circuit breaker or high current cable contacts.
2. GDHL Circuit Breaker Contact Resistance Tester is designed according to IEC62271.
3. The main application of the tester is measurement of circuit breaker contact resistance.
4. All the test results of the tester could be print by the micro-printer which is integrated in the tester.
5. Also all the test results saved in the tester could be upload to PC computer and then convert to MS WORD document.


Features:

1. Rapid test;
2. Result print;
3. Upload data to PC;


Specifications:

No.	Item Name	GDHL-200 High-Voltage Circuit Breaker Contact Resistance Tester
1	Measuring range	0-1999.9 μΩ Resolution:0.1 μΩ
2	Measuring current	DC 100A, 200A, 400A, 600A for choice
3	Measuring precision	0.5 %RGD+0.05%FS
4	Display mode	LCD
5	Data storage	Save no more than 100 groups of data
6	Data connection	RS232 computer interface
7	Rated power supply	AC220V
8	Size	340mm× 280mm × 210mm
9	Environment temperature	-10 ºC~+40 ºC
10	Relative humidity	<80%

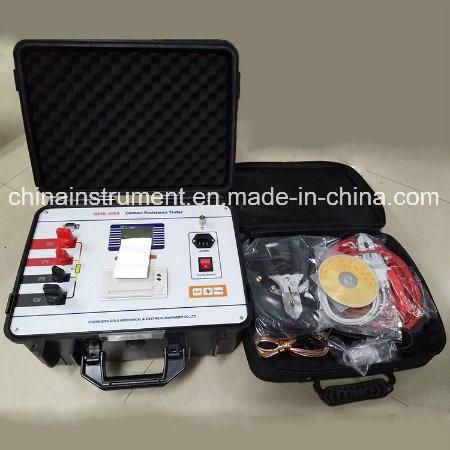

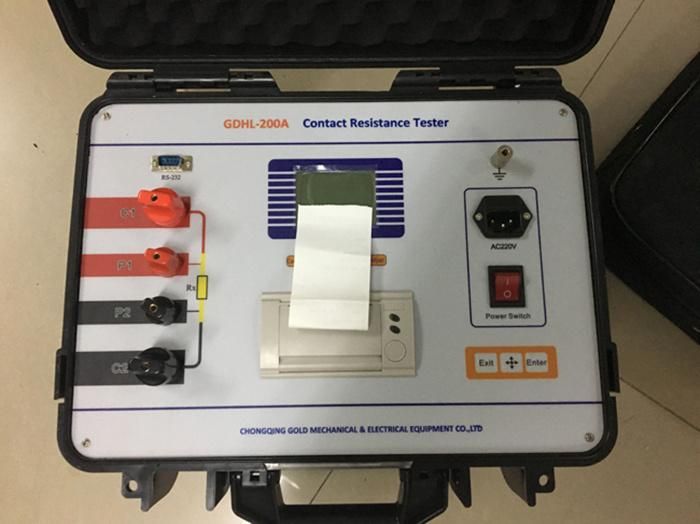

Product Show:



Order & Customer Feedback:


Certificate:


Our Company:

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is founded in 2008. We have a strong team including top sales, skilled engineers and we have our own manufacture with high quality. we mainly design and manufacture the Transformer Tester,  Circuit Breaker Analyzer,  CT PT Analyzer, Hipot Tester ,  Relay Tester and so on for more than 10 years.

After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China;

We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.
And we have gained strong advantage and high reputation in international market.

Exhibition:

Warranty:
1.The warranty period is 12 months.
2. We supply repairing parts for product's life time long and technical instruction.( free within the warranty period and charge beyond warranty period).
3.All our products have been run well and have been adjusted to good state before go to market. Operator only need to do as the instruction manual by pulling the buttons and add right amount of additives. If some parts.broken, operator just need to remove bolts and change new. Please note: the operation and repair is very simple.
4. When the machine send to your company . You can arrange your engineer to our company to learn operate the machine . We will arrange our engineer to teach your company engineer to operate the whole machine . You only need to pay your engineer to China the air tickets fee , hotel fee and food , It is ok !
5. We also can arrange our engineer to your country . You need to pay the air tickets fee , hotel fee ,food .
