• Model NO.：GDGY
• Capacity：50va, Output Current 25mA
• Measuring Range of Cx：15PF-300PF
• Measuring Range of Rx：10m-10t
• Size：450mm*360mm*310mm
• Transport Package：Wooden Case
• Specification：ISO
• Trademark：Gold
• Origin：Chongqing of China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. GDGY Capacity 50va, Output Current 25mA Measuring Range of Cx 15PF-300PF Measuring Range of Rx 10m-10t Size 450mm*360mm*310mm Transport Package Wooden Case Specification ISO Trademark Gold Origin Chongqing of China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

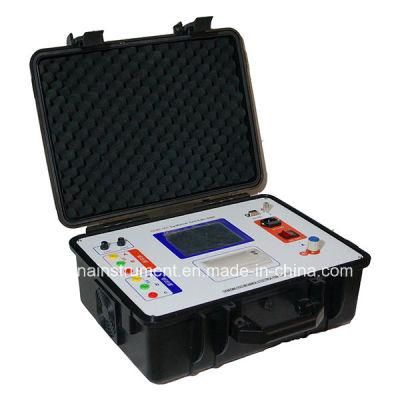

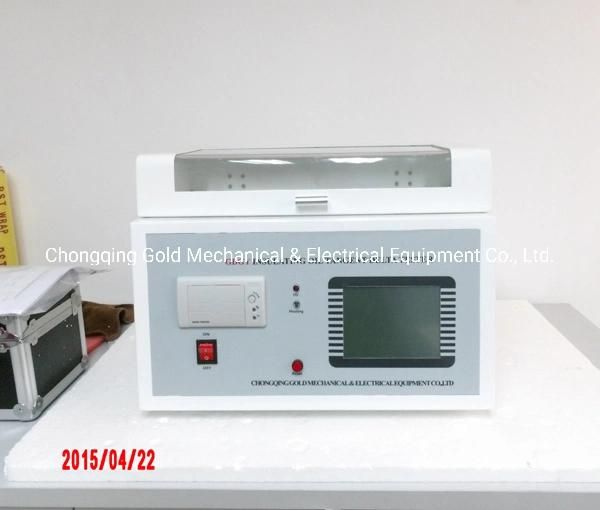

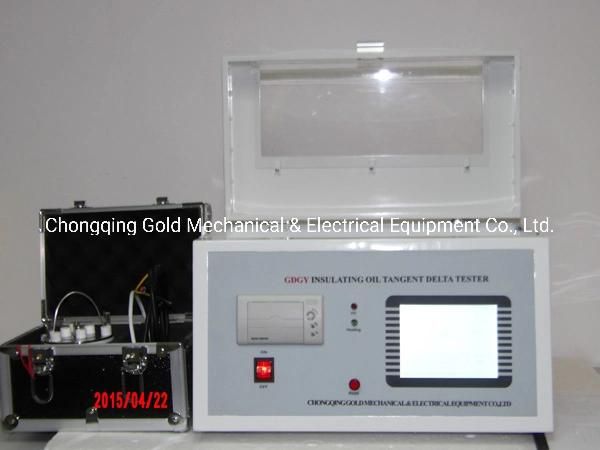

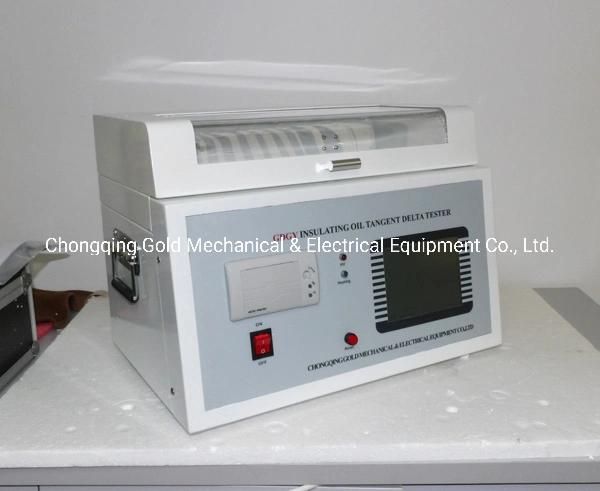

GDGY Oil Capacitance & Resistivity Tester Insulating Oil Tangent Delta Tester


Introduction:

GDGY Insulating Oil Dielectric Loss Tangent Delta Tester is a high-precision instrument, which can be applied to measure dielectric loss angle and Volume Resistivity of insulating oil etc.

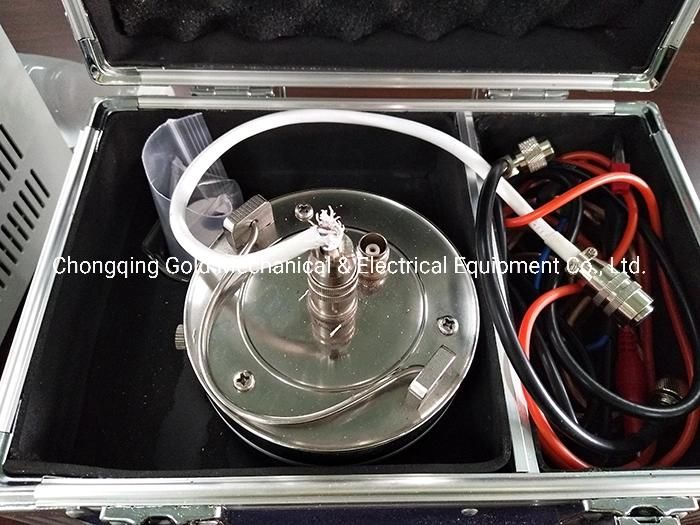

GDGY Insulating Oil Dielectric Loss Tangent Delta Tester is integrated by oil cup for dielectric loss, temperature-control equipment, temperature sensor, test-bridge for dielectric loss, AC trial electrical source, standard capacitor, high resistance meter and DC high-voltage power etc.

The most advanced heating mode of high frequency induction is applied to the heating part of this instrument, which has the advantage of non-contact of oil cup and heating unit, homogeneous heating, quick velocity and convenient control etc. AC-DC-AC conversion mode is applied to AC trial electrical source so that the problem how to measure correctly under the fluctuation of voltage and frequency can be avoided. Even when the electric generator is working, the instrument can operate correctly.

The inner standard capacitor is SF6 three-pole inflate capacitor, whose dielectric loss and capacitance is not influenced by environmental temperature and dampness etc. In this way, the accuracy of the instrument is guaranteed conformably after a long-time application.

Advantage:

Convenience and maneuverability are the most remarkable advantages of this instrument.

First of all, digital technology and intelligent automation measurement are applied inside the instrument.
Secondly, big-screen (240mm×128mm) menu interface in Chinese is equipped, with which user can be prompted each step during the operating process.
Thirdly, the result can be output by printer. The user can grasp operating processes masterly without technical training

Specifications:.



Condition of Use	-5ºC-40ºC RH<80%
Power Source	AC 220V±10% Without Frequency Limit
AC High Voltage Output	400V-2200V ±2% Every 100V 50VA
DC High Voltage Output	00V-2200V ±2%
Temperature Control Induction Stove	Maximal Power 500W
Temperature Control Range	<100ºC
Temperature Measuring Error	±0.5ºC
Control Temperature Error	0.1ºC
Control Temperature Time	Room Temperature 90ºC <20min
Measuring Range	tgδ Without Limit Cx 15PF-300PF Rx 10M-10T
Resolution	tgδ 0.001% Cx 0.01pF Rx 0.01
Precision	delta tgδ:±(Reading*0.5%+0.020%) delta Cx :±(Reading*0.5%+0.5PF) delta Rx :±Reading * 10%
Relative Dielectric Loss Constant	Εr Calculated Automatically
Volume Resistivity	ρ Calculated Automatically
Dimension	450(L)×310(W)×360(H)
Net Weight	21KG
