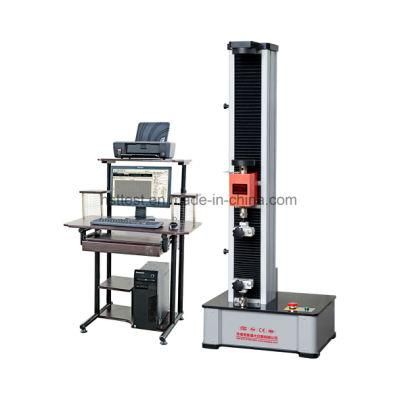

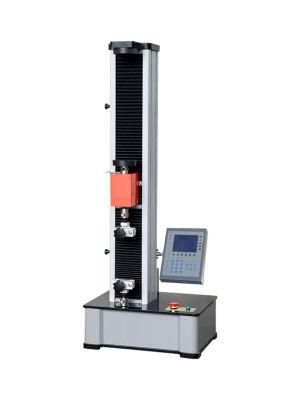

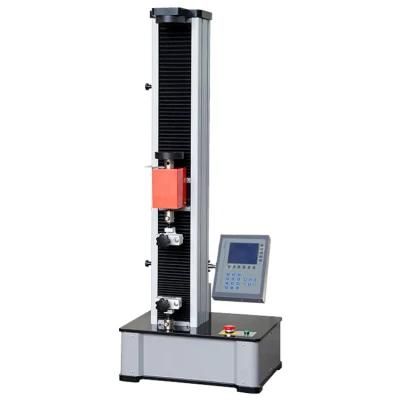

Digital Display Electronic Spring Universal Tension and Compression Testing Machine (50N -5KN)
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service：24 Hours Technical Supply
- Warranty：12 Months
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Tensile Testing Machine
- Maxcapacity：<1000KN
Base Info
- Model NO.：TLS 50N to 5KN
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Static Load
- Display：Digital
- Control：Computer Control
- Weight：100-500Kg
- Power Source：AC220V
- Delivery Time：2 Days After Get Payment
- Transport Package：Standard Export Packing
- Specification：550× 400× 1600mm
- Trademark：HST
- Origin：China
- HS Code：9031809090
- Production Capacity：8000 Sets Per Year
Description
Single column, double spaces(lower tensile,upper compression)Control method Single chip control Test accuracy 1 class Test force test arrange
(F·S) 2%~100%F·S Test force value relative error ≤±1% Displacement value relative error ≤±1% Displacement resolution 0.01mm Deformation value relative error ≤±(50+0.15L)um Speed adjust range 0.05-500mm/min(stepless speed regulating) Speed relative error ≤±1% Effective tensile space Standard: 600mm Heighten: 850mm Effective compression space Standard: 600mm Heighten:850mm Pressure plate size 110mm Upper and lower platen parallelism ≤0.05mm Power supply AC220V±10%,50Hz Dimension 550×400×1600mm Weight About 100kg
Main Features:
1. Automatic calibration: system can automatically realize the accuracy of the calibration value
2. Automatic stop: After the sample broken, the moving beam automatic stop.
3. Automatic display: Real-time display two kinds curves: spring testing force and height, test force and deformation
4. One point or multi-point test: can preset standard values, upper and lower deviation, automatically determine whether spring qualified, lower or higher than the standard value of the standard value;
5. Measurements can be segmented, and can be calculated each segment stiffness (elastic coefficient) K, and the average stiffness;
6. Automatic return: beam automatic return to initial position when testing finished.
7. Breakage judgment: sample after fracture,beam automatic stop moving
8. Limiting protection: Program control and Mechanical limiting protection.
9. Overload protection: When more than 3 ~ 5% of the rated load device automatically stop working

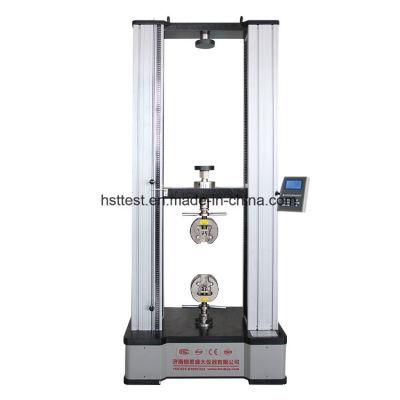

We also have many types of spring testing machines for choice, welcome to your inquiry:

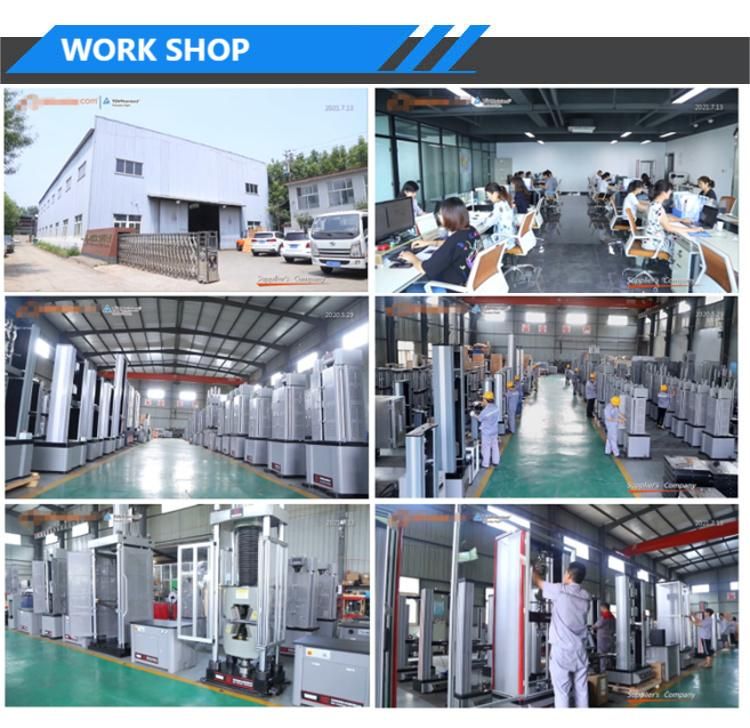

Company Information CE ISO certificates:
