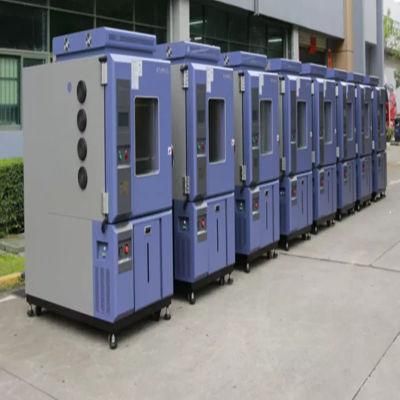

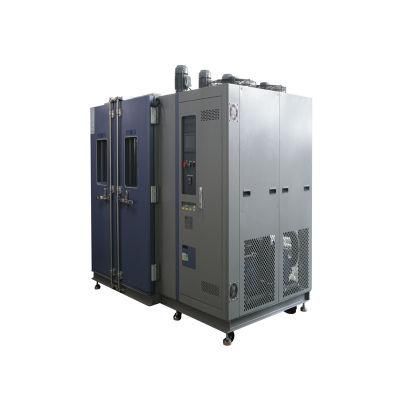

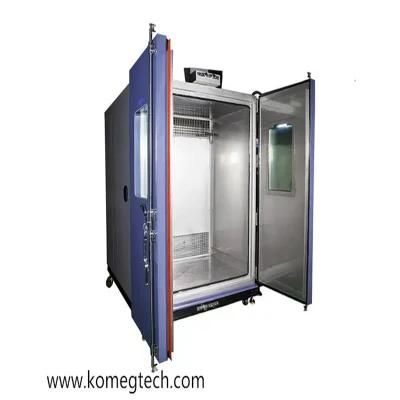

Constant Low High Environmental Temperature Humidity Test Chamber

Guangdong Komeg Industrial Co., Ltd.
  • Power Supply：380V
  • Certification：CE, TUV, ISO
  • Warranty：1 Year
  • Interior Dimensions (D*W*H)：1500W*1280h*550d(Mm)
  • Dimensions(D*W*H)：1720W*1980h*750d(Mm)
  • Heater Power：5kw

Base Info

  • Model NO.：KBR
  • Max. Temp：200oc or 300oc
  • Rack Rotation Speed：5-10r.p.m
  • Temp. Range：Room Temp. +20~+100oc
  • Adaia Memsion：100W*100hj*50d(Mm)
  • Voltage Range：3~50V
  • Current Range：+,-5.0%
  • The Detection Speed：7-12sec,Cycle
  • Transport Package：Strong Plywood Case, Meet International Standards
  • Specification：Standard and Customized
  • Trademark：KOMEG
  • Origin：Dongguan, China
  • HS Code：90321000
  • Production Capacity：1000 Sets Per Yesr

Description

1.1.1 Temperature range

-20ºC ~ +150ºC


1.2 Temp Deviation

<= ± 2.0ºC


1.3 Temp Fluctuation

±0.5ºC


1.4 Temp Uniformity

±2.0ºC


1.5 Ramping and soaking rate

Heating up rate: -20ºC↑ +100ºC about 35min (no-load, ambient

temperature +25ºC)
Cooling rate: 20 ºCto -20ºC about 45min (no-load, ambient temperature +25ºC)

2.2.1 Humidity range

20%R.H~98%R.H


3.2 Control range 3.3 Humidity deviation

±3.0%RH(>75%RH)
±5.0%RH(≤75%RH)

3.4 Humidity uniformity

3.0%RH (no-load)


3.5 Humidity fluctuation

±2.0%RH


Temperature and humidity performance test is in accordance with the relevant provisions of the

IEC60068 -3 standard measurement; sensor placed in the unit outlet.
