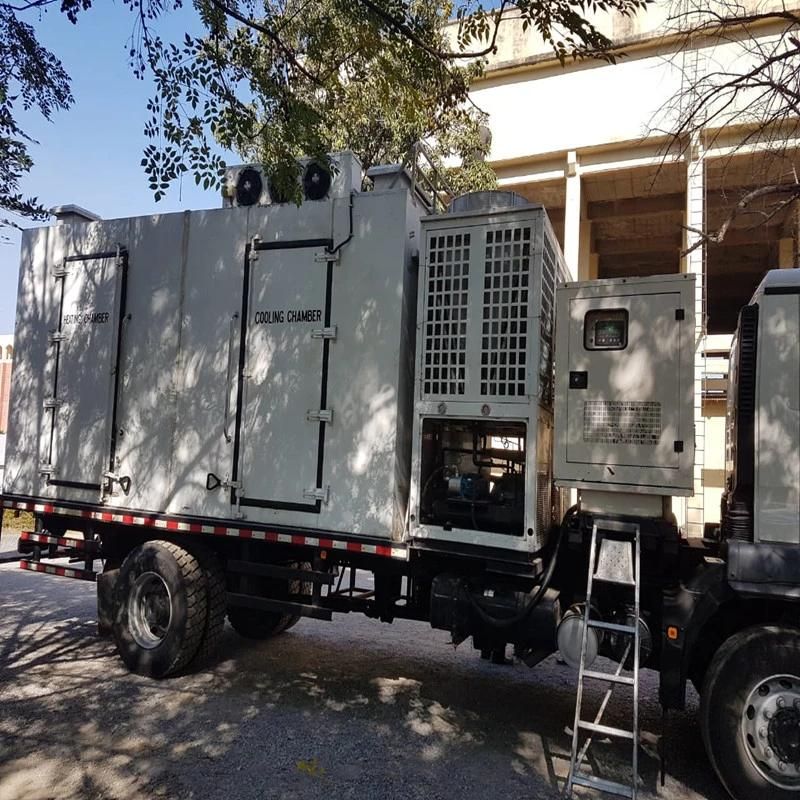

Vehicle-Mounted High Low Temperature Stability Test Chamber

Guangdong Komeg Industrial Co., Ltd.
  • Power Supply：380V
  • Certification：CE, TUV, ISO
  • Warranty：1 Year
  • Interrior Dimension(W*H*D)：4800*2100*4300mm
  • Exterior Dimensions(W*H*D)：5950*2350*4500mm
  • Volume(M3)：43.3cbm

Base Info

  • Model NO.：KMHW-21
  • System：Balanced & Humidity Control System
  • Temp. Constancy：+,-0.5oc
  • Humidity Constancy：+,-2.5%R.H.
  • Temp. Uniformity：+,-2.0oc
  • Humidity Uniformity：+,-5.0%R.H.
  • Heat up Time：+20oc~+80oc Within 60mins
  • Pull Down Time：+20 Oc~-55 Oc Within 60mins
  • Transport Package：Strong Plywood Case, Meet International Standards
  • Specification：Standard and Customized
  • Trademark：KOMEG
  • Origin：Dongguan, China
  • HS Code：90321000
  • Production Capacity：1000 Sets Per Yesr

Description

Basic Info.

Model NO. KMHW-21 System Balanced & Humidity Control System Temp. Constancy +/-0.5oc Humidity Constancy +/-2.5%R.H. Temp. Uniformity +/-2.0oc Humidity Uniformity +/-5.0%R.H. Heat up Time +20oc~+80oc Within 60mins Pull Down Time +20 Oc~-55 Oc Within 60mins Transport Package Strong Plywood Case, Meet International Standards Specification Standard and Customized Trademark KOMEG Origin Dongguan, China HS Code 90321000 Production Capacity 1000 Sets Per Yesr

Product Description

Vehicle-Mounted High Low Temperature Stability Test ChamberVehicle-Mounted High Low Temperature Stability Test ChamberVehicle-Mounted High Low Temperature Stability Test ChamberTechnical specification
1. Temp. range: -50ºC to +70ºC
2. Temp. fluctuation: ±0.5ºC
3. Temp. deviation: <=±2.0ºC(no-load)
4. Heating up time: -50ºC to +70ºC within 65min( no-load)
5. Cooling down time: +70ºC to -50ºC within 130min (no-load)
B. Structure: refer to the scheme
ModelInternal dimensionExternal dimension
KMT-30001500 x 1000 x 2000 (WxHxD)mm1700 x 1590 x 3570 (WxHxD)mm
1. Inner material: stainless steel plate
2. Outer material: painted steel plate
3. Insulation material: rigid polyurethane foam
4. Heater: Fin radiator tubular stainless steel heater
5. Air supply circulation system:
a. Special stainless steel longer axis water-proof cooling type motor
b. Multi-wing type, high temperature resistance aluminum fan (SIROCCO FAN)
c. Adjustable shutter vents
6. Door: bouble doors, Heating wire was installed at the door frames to prevent condensation at low temperatures.
7. Cooling system:
a. Compressor: Bock semi-hermetic compressor.
b. Refrigerant: Environment-friendly refrigerant R404A, R23, Accord with environmental protection laws and regulations, safe non-toxic

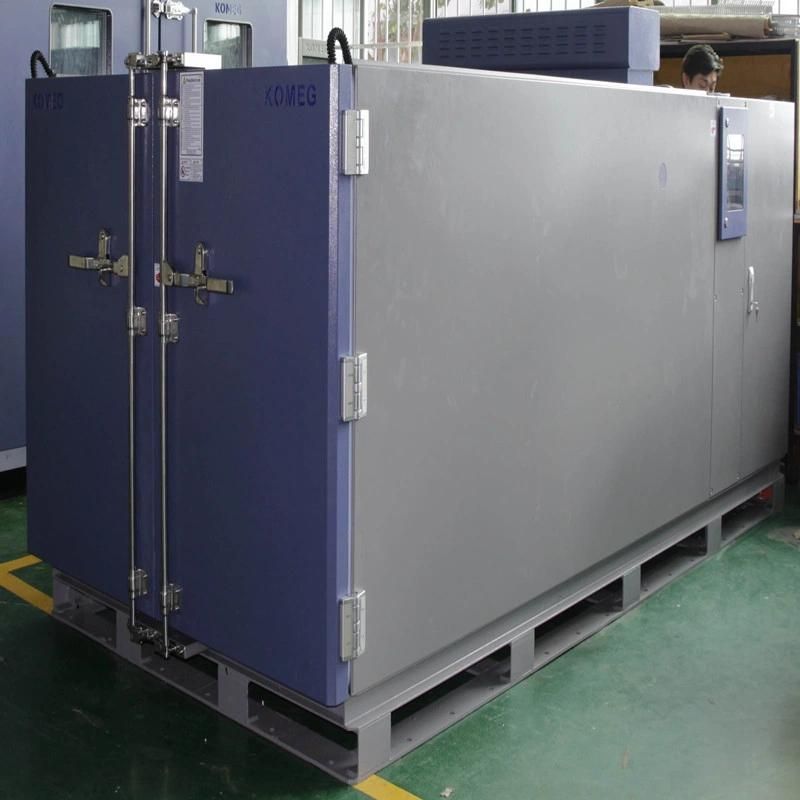

Detailed photos  (use )
Vehicle-Mounted High Low Temperature Stability Test Chamber

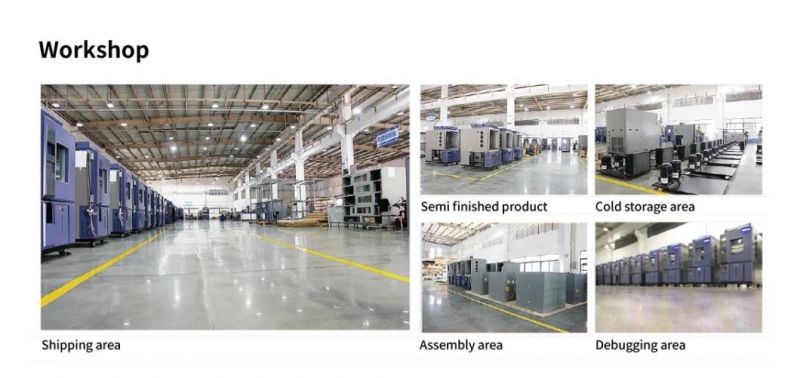

Factory on site photos
Vehicle-Mounted High Low Temperature Stability Test ChamberVehicle-Mounted High Low Temperature Stability Test ChamberVehicle-Mounted High Low Temperature Stability Test ChamberVehicle-Mounted High Low Temperature Stability Test Chamber
