Double Layer Lab Drying Oven Electric Vacuum Heat Chamber Vacuum Drying Oven
Guangdong Komeg Industrial Co., Ltd.- After-sales Service:380V
- Power Supply:380V
- Certification:CE, TUV, ISO
- Warranty:1 Year
- Volume:About 232 Liter
- Interior Size:W 650 mm*H 650 mm*D 550 mm (Single Compartment)
Base Info
- Model NO.:KOV-232
- Exterior Size:W1190 mm*H1895 mm*D1120 mm
- Cool Method:Fresh Air
- Temperature Range:Rt+20~250c
- Temp. Fluctuation:±0.5c
- Heating Rate:3c,Min
- Interior Material:201 Stainless Steel
- Insulation:High Quality Glass Fiber Cotton
- Product Name:Precision Oven
- Transport Package:Strong Plywood Case for Long Journey Delivery
- Specification:Standard and Customized
- Trademark:KOMEG
- Origin:Dongguan, China
- HS Code:90321000
- Production Capacity:1000 Sets,Year
Description
Air supply mode
Forced air circulation
Temp Range
+50ºC ~ +200ºC
Temp fluctuation
±1.0ºC
Heat up time
+50ºC ~ +250ºC About 70min
Control mode
PID+SSR output
Door Seal
Single door with silica
Temperature controller
Sensor
High precision DIN A class,Dry ball φ4.8mm SUS #304 PT 100Ω
Controller
Display function
Temp and humidity setting (SV) The actual (PV) value is displayed directly;
Support executive program number, Paragraph, remaining time, number of cycles, running time display;
Program editing and graphical curve display;
Fixed point or program action status display;
7-inch resolution: 800 * 480, 65535 true color, LED backlight display screen.
Control resolution
Temp: + 0.01ºC;Humidity: + 0.1%;time: 0.01min
Setting range
Temp Condition:-100~200 ºC;
According to the temperature of the chamer to adjust the working range (upper limit +5 ºC, lower limit -5 ºC)
Humidity Condition:0~100 %RH
Operating mode
Programmable running, constant running
Program capacity
Running time up to 999999 h 59 m (also can be set to continue running without time limit);
Available program capacity: up to 269 groups, a total of 13450 paragraphs;
Usable memory capacity: 50 steps per group;
Repeatable commands: Up to 32000 cycles per command
Setting way
Man-machine dialogue mode, using touch input and control
Communication Interface
RS-232,RS-485 and Ethernet.
Data collection and curve display when connected with a computer
Can be used as monitoring and remote control system
Multi machines synchronization control available
U Disk Memory Card
1G-8G available for downloading historical curve and data, pluggable

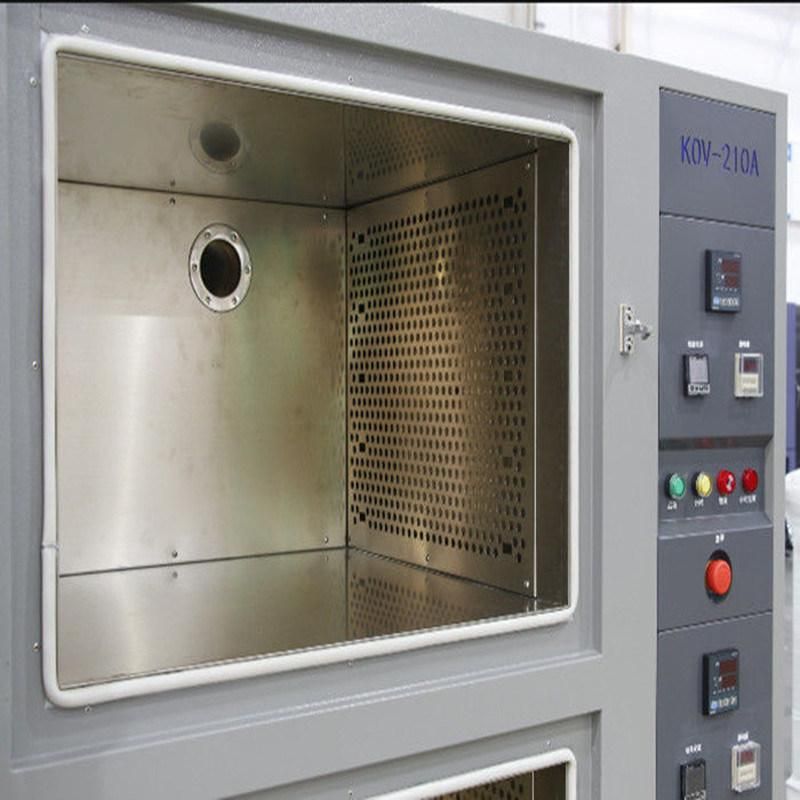

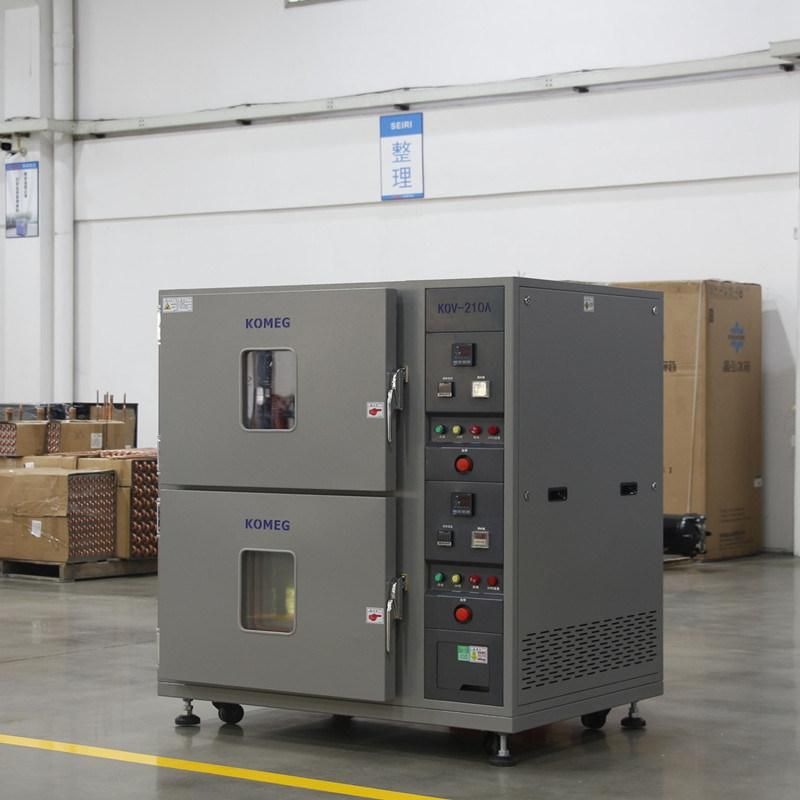

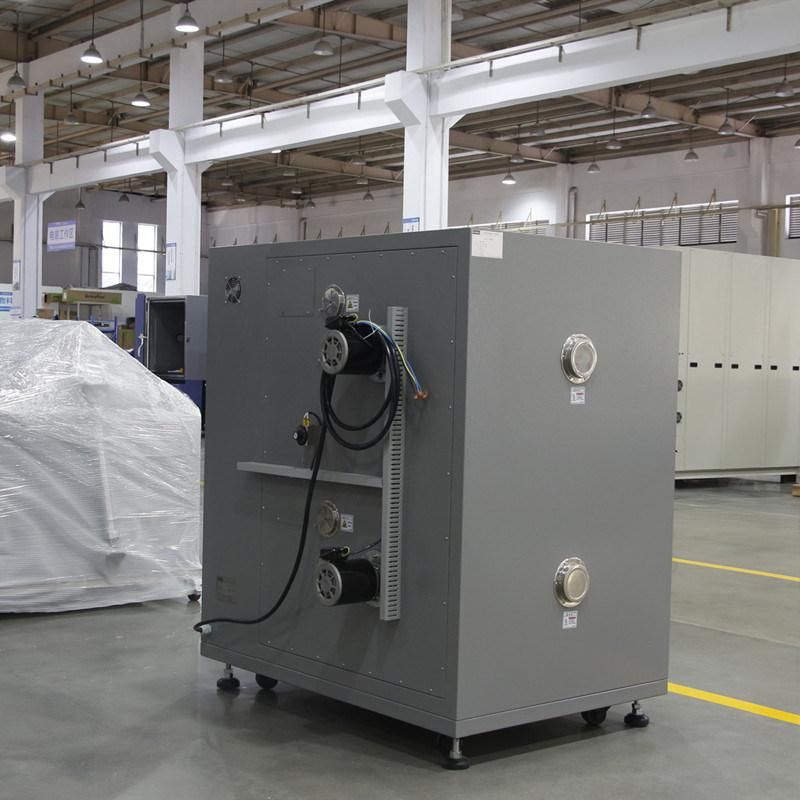

Photos show
Main Features:
1. Microcomputer electronic digital control, precision & reliability.
2. High temperature endurance & non-aging.
3. Observation view window, easy operation.
4. Forced circulation air, the temperature rise fast, even distribution.
5. PID control, double overheating protection, safety and reliability.
6. Two groups of moving plates can be adjusted height. 9 Best after sales service: One year free parts warranty service.
7. Meet international test standards.
8. Customization is available & welcomed.
