• Model NO.：YG(B)502J
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Motor Drive
• Weight：0-100Kg
• Power Source：AC220V
• No. of Stations：8
• Diameter of Movement：40mm
• Range：1-99999
• Pressure：490cn,590cn,780cn
• Sample Size：112.8mm
• Height of Brush：2-12mm
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：2000sets,Month

Basic Info.

Model NO. YG(B)502J Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Motor Drive Weight 0-100Kg Power Source AC220V No. of Stations 8 Diameter of Movement 40mm Range 1-99999 Pressure 490cn/590cn/780cn Sample Size 112.8mm Height of Brush 2-12mm Trademark DARONG Origin China HS Code 9024800000 Production Capacity 2000sets/Month

Product Description

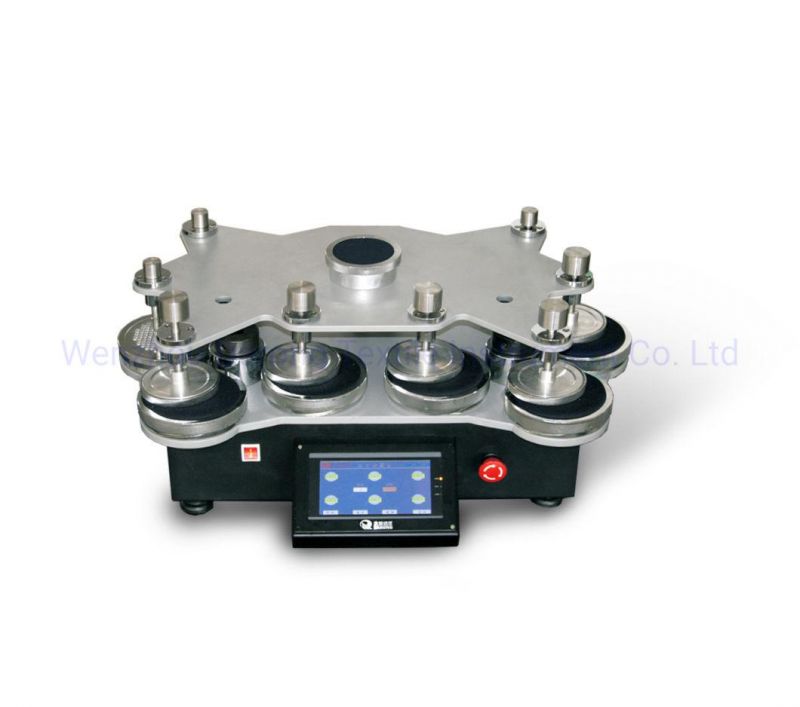

YG(B)502J  Fabric circular locus pilling and abrasion testing equipment
National patent ZL201420723778.0
[Scope of application]
Used for testing the pilling performance of all kinds of woven fabrics and woven fabrics (circular track method).

[Related standards] GB/T4802.1
[ Instrument characteristics ]
1, patented technology, one time to complete the standard requirements of 5 pilling tests;
2, smooth rotation, no noise, suitable for long time continuous operation;
3, ergonomic design, operating surface and bottom, the test operator comfortable test operation.
[ Technical parameters ]
1. Number of work stations: 8 (including 5 work stations for pilling and 3 work stations for fuzz)
2, movement trajectory: φ 40mm circular trajectory movement
3. Adjustable height of brush :(2-12)mm
4, sample pressure: chemical fiber fabric pressure is 590cN;
The pressure of worsted fabric is 780cN;
The pressure of carded fabric is 490cN.
5, sample size: φ 112.8mm, area of 100 cm2
6. Frequency selection: 1 ~ 99999
7, the relative movement speed of gripper and grinding platform: 60r/min (or 20-70r/min can be set)
8, power supply: AC220V±10% 50Hz 60W
9, layman size :(765×563×367)mm
10, weight: about 71kg




Technical parameters]

Diameter of movement	Counting range	Height of brush
40mm	1-99999	2-12mm
