• Model NO.：YG(B)518D
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Motor Drive
• Weight：0-100Kg
• Power Source：AC220V
• Number of Station：4
• Diameter：82mm
• Speed：60rpm
• Nail：160g
• Number of Nail：11
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：2000sets,Month

Basic Info.

Model NO. YG(B)518D Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Motor Drive Weight 0-100Kg Power Source AC220V Number of Station 4 Diameter 82mm Speed 60rpm Nail 160g Number of Nail 11 Trademark DARONG Origin China HS Code 9024800000 Production Capacity 2000sets/Month

Product Description

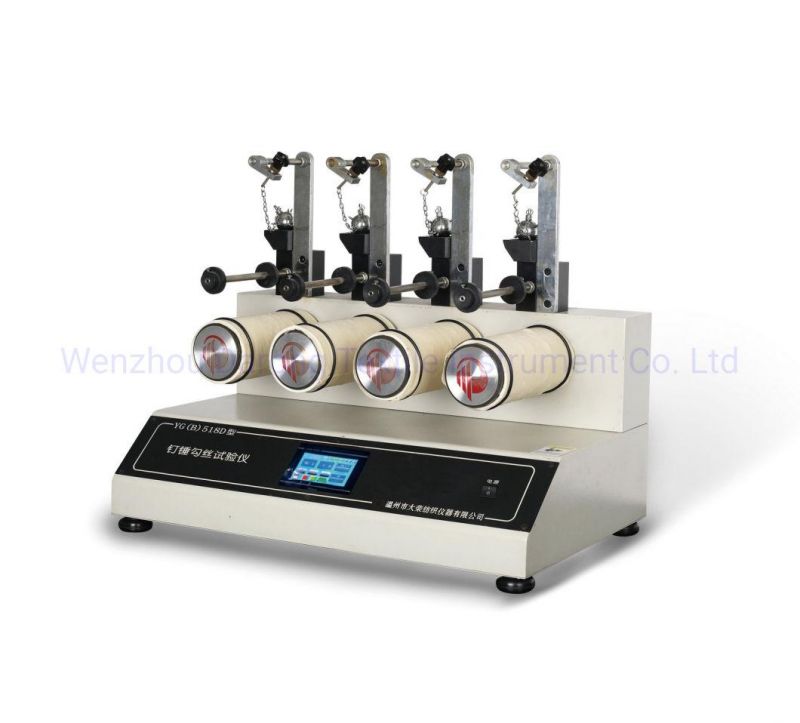

YG(B)518D   Fabric Apparel ICI Mace Snag Snagging Resistance Lab Testing Equipment
[Scope of application] Used for testing hook resistance of knitted fabric and other easy hook fabric.

[Related standards] GB/T11047 ASTM D3939 JISL1058
[ Technical parameters ]
1. Number of stations: 4 stations
2, drum speed :(60±2)r/min
3, counting range: 0 ~ 99999
4. Diameter of drum: φ 82mm; 210 mm wide
5, nail mass :(160±10)g
6. Number of nails with hammer: 11
7, the length of the exposed needle: 10mm; Tip radius r0.13mm
8, felt thickness :(3 ~ 3.2)mm; Width of 165 mm
9, guide rod working width: 125mm; Φ 10 mm in diameter
10. Distance between hammer and guide rod: 45mm
11, power source: AC220V±10% 50Hz 200W
12, overall size :(660×400×600)mm
13, weight: 60kg

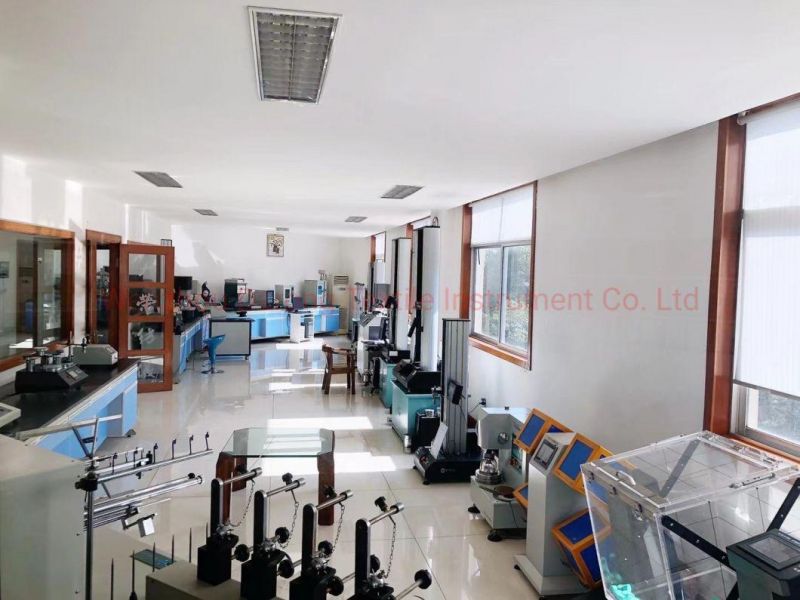

It's my great honor to have the opportunity to introduce us as one of the leading manufacturers of textile(including face masks and footwear) testing machines in China which is established in 1988. Thanks to our high-quality products as well as in-time service,we obtain satisfaction from more than 100,000 customers including about 370 notify testing laboratories such as INTERTEK and SGS and BV and Eurofins etc. and the leading textile enterprises. I am looking forward to the chance serving you in near future.
Best regards.
Marv

Technical parameters]

Number of station	Counting range	Speed of drum
4	0-99999	60rpm
