• Model NO.：QT-10A
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：180kg
• Power Source：AC380V
• Oil Cylinder Position：Electronic
• Temperature Control Accuracy：0.5 Degree
• Pressure Display Resolution：0.001MPa
• Transport Package：Wooden Case
• Specification：840*500*1550mm
• Trademark：Suzhou Qiantong
• Origin：Jiangsu, China
• HS Code：9024800000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. QT-10A Accuracy Grade 0.5 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 180kg Power Source AC380V Oil Cylinder Position Electronic Temperature Control Accuracy 0.5 Degree Pressure Display Resolution 0.001MPa Transport Package Wooden Case Specification 840*500*1550mm Trademark Suzhou Qiantong Origin Jiangsu, China HS Code 9024800000 Production Capacity 1000 Set/Year

Product Description

1. Qiantong main scope of testing machineElectronic universal material testing machine, Horizontal tension testing machine, Hydraulic universal testing machine, MFI, Charpy Impact, Izod Impact, HDT-Vicat tester, Hardness tester, Torsion tester, Metallographic series, Oven and so on. (We accept customization.)
2. Product Brief: The machine is used to test the maximum pressure value of endurance failure time or instantaneous blasting under constant internal pressure and constant temperature for a long time of thermoplastic pipe, composite pipe(such as PP-R,PP-B,PP-A,PE,PE-X,PVC,PVC-U,PVC -C , PAP and other pipes)3. Features of control and data processing system
QT-10A Series hydrostatic testing machine
 Multi-purpose · two-level computer · three-level monitoring · eight

functions:

Multi-purpose--It can not only test the long term

hydrostatic pressure of pipe, but also do the blasting test of pipe also can be used to measure the thermal stability of thermoplastic pipe

Two-level computer--PC + microcomputer control, each

unit has a microcomputer, timely and accurate measurement and control.

Three-level monitoring--Level 1: 1 hour subtle

monitoring;Level 2: 48 hour holiday monitoring;Level 3:of comprehensive monitoring of the whole process. External constant temperature media temperature monitoring.

Eight functions--With leakage early warning, rupture identification, real-time

monitoring, power failure voltage protection, power drop protection, call automatic recovery. Print, store test results and other functions.

Quality--The whole machine USES CE certified electronic components, imported

solenoid valve, brand sensor; high reliability and stability in long-term operation, high efficiency in multi-port test, low cost and good economic benefit.

Appearance --Chinese red border

The source of pressureIndependent control - - A pressure source can be connected to multiple hosts.
Inlet pump body -- high pressure, large flow.Dual accumulator -- stable energy storage, wide pressure range, adjustable energy storage pressure.
Automatic water storage -- automatic water replenishment to ensure that the pump body will not be damaged due to water interruption.
Elastic connection - low noise.

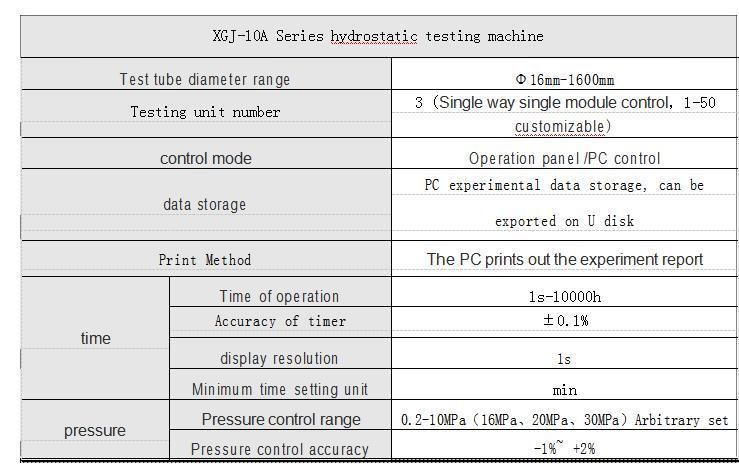

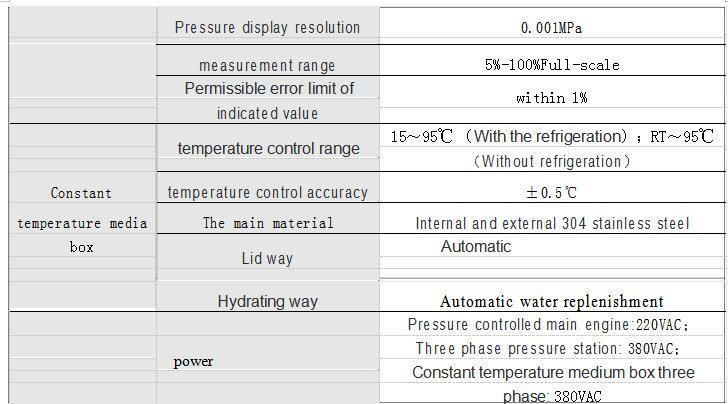

4. technical parameters














FAQ
Q:Are you a trade company or factory?
A:Our company is a factory and directly sales.
Q:Can your company accept customization?
A: Yes. Our machines can be customized by client.
Q:How to guarantee your after-sales service?
A:Our philosophy is one year warranty and lifetime service. After the warranty period is exceeded, if there is any problem, we will provide support for you in time. (only charge travel expense and parts cost at most.)
Q:What is the language about software?
A:It can switch between Chinese and English.
