• Model NO.：HD-E808-90
• Certificate：ISO9001: 2008, CE
• Control Interface：LCD Touch Screen in English
• Warranty Period：One year
• Delivery time：15 days after receive the deposit
• Transport Package：Strong Wooden Case
• Specification：ISO9001: 2008
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9031809090
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-E808-90 Certificate ISO9001: 2008, CE Control Interface LCD Touch Screen in English Warranty Period One year Delivery time 15 days after receive the deposit Transport Package Strong Wooden Case Specification ISO9001: 2008 Trademark Haida Origin Dongguan, China HS Code 9031809090 Production Capacity 150 Sets/Month

Product Description

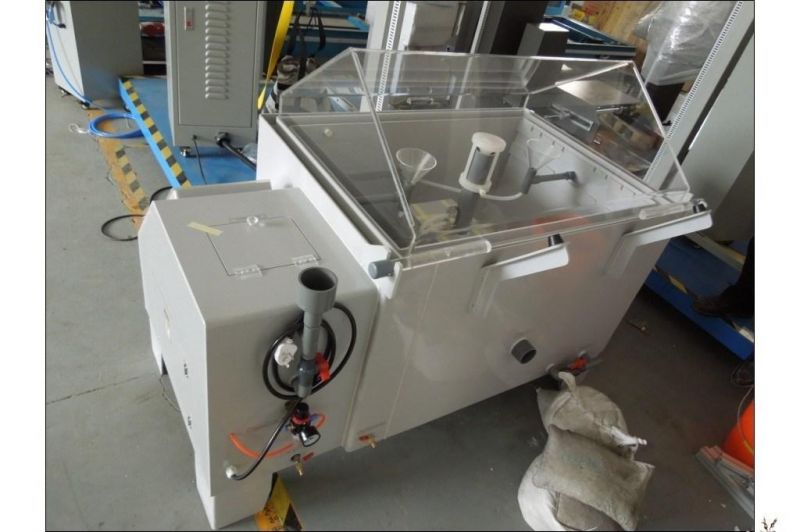

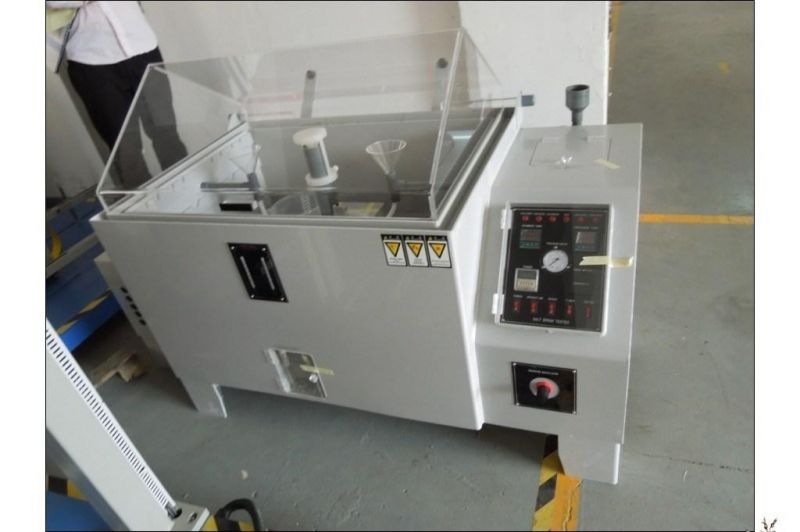

                  Used Programmable Salt Spray Corrosion Tester with PLC Controller


Description:
Salt Spray Tester adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.

Operation and Control:
A digital temperature controller enables the operator to independently set the chamber temperature and the temperature of the bubble tower. The chamber isHeated by a wrap-around heater jacket which is bonded to the exterior surface of the internal workspace to protect it from damage from the corrosive climate reated inside the test chamber. The bubble tower humidifies the compressed air on the way to the salt fog atomizer and is heated by an immersion heater. Both the cabinet and bubble tower are equipped with over-temperature protection safety thermostats.


The water level in the bubble tower can be filled with de ionized water in one of two ways - either automatically, if the chamber is connected to a pressurized water supply, or by hand, using the manual filler port.

A separate external salt solution reservoir, where the salt later to be atomized into a fog is mixed and held. The utilization of a separate external salt solution reservoir facilitates quick change-overs when going from an ASTM standard to a DIN standard Salt fog fall-out is controlled by an adjustable flow control meter located on the control panel. This, coupled with the integrated air pressure regulator and gauge, is used to ensure a uniform and continuous fall-out of salt fog onto the samples under test.

Standard Parameters

Model	HD-E808-90
Inner Box Size (L× W× H)	90× 60× 50 cm
Outside Box Size(L× W× H)	141× 88× 128 cm
Equipment Material	Both inside & outside shell of salt spray chamber adopt imported P. V. C rigid plastic board, and tank cover uses imported transparent  P. V. C. rigid plastic board
Temperature Range	35  centigrade degrees to 55 centigrade degrees
Temperature Fluctuations	≤ ± 0.5 centigrade degrees
Temperature Uniformity	≤ ± 2 centigrade degrees
Temperature Precision	± 1 centigrade degrees
Test Chamber Temperature	Salt Spray Method (NSS ACSS)35± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 50± 1 centigrade degrees
Saturated air Barrel Temperature	Salt Spray Method (NSS ACSS)47± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 63± 1 centigrade degrees
Brine Temperature	35 centigrade degrees± 1 centigrade degrees
Spray Quantity	1.0~2.0 ml / 80cm2 / hr
PH	Salt Spray Method (NSS ACSS6.5~7.2)   Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume	270L
Brine Tank Capacity	25L
Power	AC220V, 10A
Multiple Safety Protection Devices	Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories	Testing Salt/ Measuring tank/ Equipment  each 1 set
Standard	CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502, H8610, K5400, Z2371; ISO: 3768, 3769, 3770; ASTM:   B117, B268

Product Features
1, Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.
2, Reservoirs with mixing system on stand.
3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4, Exposure zone lined with corrosion-resistant PVC sheets.
5, Clear cover allows viewing of test conditions.
6, Peaked cover prevents dripping of condensation onto samples.
7, Water seal and water level protection system.
8, Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9, Automatic DI water fills to humidifying tower.
10, Digital temperature control.
11, Integral over-protection on heaters.
12, Low water cut-off protection on humidifying tower.





The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.



Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



Thanks Letter from one of our Customers:


FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
