• Model NO.：PHCW-2000
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Lendth)：3800 Mm
• Width：800 Mm
• Height：1500 Mm
• Gross Weight：1600 Kg
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO9001: 2008 CE SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHCW-2000 Loading Method Dynamic Load Display Digital Control Computer Control Weight 1000-2000Kg Power Source AC380V Lendth) 3800 Mm Width 800 Mm Height 1500 Mm Gross Weight 1600 Kg Transport Package Packed in Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/Month

Product Description

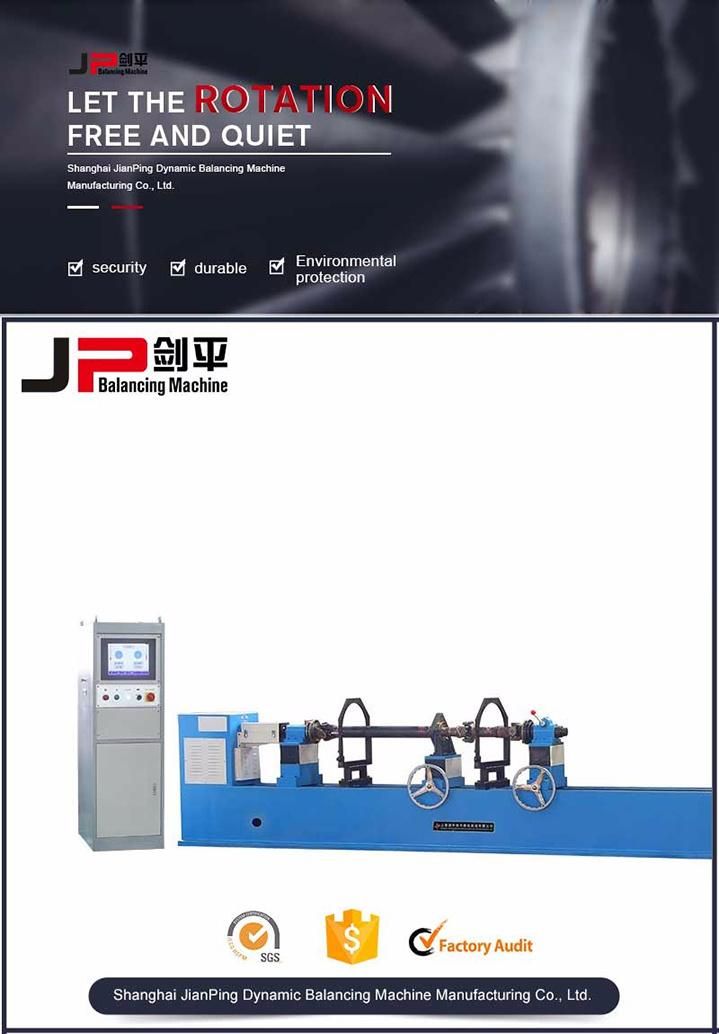

Balancing Machine for Transmission Shaft (PHCW-2000)



Production Description

Specially designed brackets transmit mechanical force with high rigidity
Durable and reliable sensor possesses high sensitivity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Advanced electrical measuring system and friendly man-machine interface

Package and transport


Range of Application

This balancing machine is equiped with hard bearing structure. Electromechanical transducer adopts piezoelectric sensor Large output, small size, stable performance. Mainly used in the production and repair of all kinds drive shaft factories. With the advantages of high measuring speed, high precision, easy to load and unload, Investment at low cost. It is an ideal device for shaft manufacturers and maintenance factories.

Delivery inspection


Special Features

The measuring unit employs JP-380 Micro- computer Electric Measuring Instrumentation newly developed by ourselves with piezoelectric transducer as electromechanical sensor. The measuring unit can show rotating speed, measured value, and phase position intuitively with options of six support modes available while the piezoelectrical sensor possesses a large capacity of output, small volume and high stability.

Factory Outlook



Certificates


Production Parameters

Technical data at a glance	PHCW-1000/2000
Max Mass of Workpiece (kg)	1000/2000
Effective length of workpiece(mm)	3000
Max Diameter of Workpiece(mm)	Φ400
Shaft tube diameter of workpiece(mm)	Φ300
Balancing speed(mm)	600-1200/450-1200
Spindle Speed(r/min)	410,750 stepless speed regulation
Motor Power(KW)	3 frequency conversion
Universal joint torque(N.M)	300
Min Achievable Residual Unbalance Amount(e mar )	≤5g.mm/kg
A reduced rate (%)	≥85
