• Model NO.：PHQ-16A
• Mass Scope of Workpiece：<900kg
• Type：Balancing Machine
• Maxcapacity：<1000KN
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Length：900 Mm
• Width：700 Mm
• Height：1150 Mm
• Gross Weight：260 Kg
• Place of Origin：Shanghai, China
• Brand Name：Jp
• Transport Package：Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：903110009
• Production Capacity：1000 Sets,Month
• Package size per unit product：95.00cm * 95.00cm * 163.00cm
• Gross weight per unit product：259.000kg

Basic Info.

Model NO. PHQ-16A Mass Scope of Workpiece <900kg Type Balancing Machine Maxcapacity <1000KN Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC380V Length 900 Mm Width 700 Mm Height 1150 Mm Gross Weight 260 Kg Place of Origin Shanghai, China Brand Name Jp Transport Package Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 903110009 Production Capacity 1000 Sets/Month

Packaging & Delivery

Package size per unit product 95.00cm * 95.00cm * 163.00cm Gross weight per unit product 259.000kg

Product Description

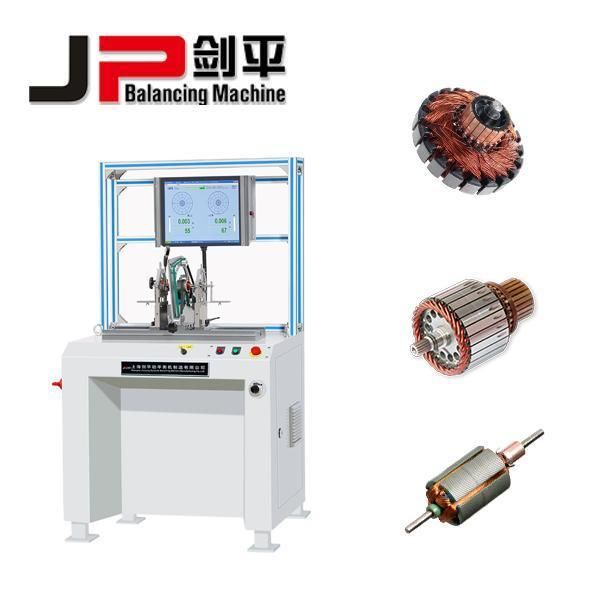

Permanent Magnet Motor Balancing Machine (PHQ-16A)



Production Description

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

Delivery inspection



Range of Application

Belt Drive Balancing Machine with JP380 Measuring Unit (PHQ-16A ) is also widely used in balancing rotatable bodies, such as kinds of small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by Nylon belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency.

Factory Outlook



Special Features

The measuring unit employs JP-580B Electrical Measuring unit is a system of top function and precisionIt can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equiped with 15-inch LCD screen and 1G Memory, Electric board 4G, Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Package and transport



Production Parameters

Technical data at a glance	PHQ-16A
Max Mass of Workpiece (kg)	5/16
Max Diameter of Workpiece (mm)	300
Distance between Two Support Bearings (mm)	60-400
Journal Diameter Scope of Workpiece (mm)	5~40
Diameter Scope of Driving Belt (mm)	15~150
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min)	~1470
Motor Power (kw)	0.23DC Stepless speed regulation
Min Achievable Residual Unbalance Amount (emar)	≤ 0.3g. mm/kg

Workshop debugging
