Cardan Shaft Drive Shaft Balancing Machine of Testing Equipment (PHCW-100/200)

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.
  • Type：Vibration Testing Machine
  • Weight：1000-2000Kg
  • Power Source：AC380V
  • Length：3600 Mm
  • Width：600 Mm
  • Height：1300 Mm

Base Info

  • Model NO.：PHCW-100,200
  • Gross Weight：380 Kg
  • Transport Package：Fumigated Wood Box
  • Specification：ISO. CE. SGS
  • Trademark：JP
  • Origin：Shanghai China
  • HS Code：903110009
  • Production Capacity：1000 Sets,Month

Description

Basic Info.

Model NO. PHCW-100/200 Gross Weight 380 Kg Transport Package Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 903110009 Production Capacity 1000 Sets/Month

Product Description

Drive Shaft Balancing Machine for 100/200kg

Production Description:

Specially designed brackets transmit mechanical force with high rigidity
Durable and reliable sensor possesses high sensitivity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Advanced electrical measuring system and friendly man-machine interface

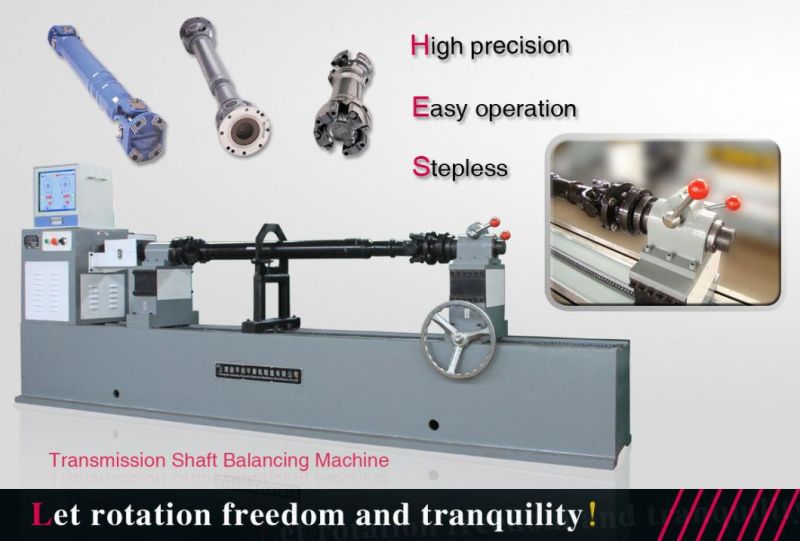

Drive Shaft Balancer (PHCW-100/200) is equiped with hard bearing structure. Electromechanical transducer adopts piezoelectric sensor Large output,small size, stable performance .Mainly used in the production and repair of all kinds drive shaft factories.With the advantages of high measuring speed, high precision,  easy to load and unload, Investment  at  low cost .it is an ideal device for shaft manufacturers and maintenance factories.

Special Features:
Cardan Shaft Drive Shaft Balancing Machine of Testing Equipment (PHCW-100/200)

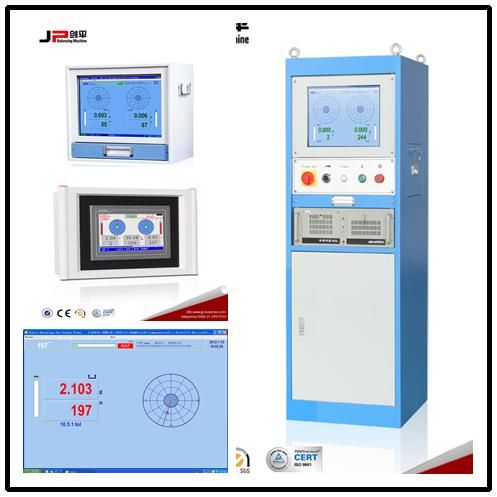

The measuring unit employs JP-580B Electrical Measuring unit is a system of top function and precisionIt can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equiped with 15-inch LCD screen and 1G Memory, Electric board 4G, Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.


Cardan Shaft Drive Shaft Balancing Machine of Testing Equipment (PHCW-100/200)

Certifiates:


Cardan Shaft Drive Shaft Balancing Machine of Testing Equipment (PHCW-100/200)

Product Parameters:

Technical data at a glancePHCW-100/200
Mass Scope of Workpiece(kg)100/200
Max Diameter of Workpiece (mm)Ø130
Effective Length of Workpiece (mm)2000
Rotation Speed of the Main Axis (r/min)-3200
Motor Power (KW)1.5 (Variable-frequency)
Min  Achievable  Residue Unbalance Amounte mar5g. mm/kg
