Dynamic Balancing Machine for Axial Fan Blade or Impeller
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.- Type:Vibration Testing Machine
- Weight:1000-2000Kg
- Power Source:AC380V
- Length:2800 Mm
- Width:810 Mm
- Height:1320 Mm
Base Info
- Model NO.:PHW-300H
- Gross Wieght:1250 Kg
- Colour:Jp Standard or Custom
- Delivery:Within 30 Days When Confirm The Order
- Transport Package:Packed in Fumigated Wood Box
- Specification:ISO9001: 2008 CE SGS
- Trademark:JP
- Origin:Shanghai China
- HS Code:90311000
- Production Capacity:1000 Sets,Month
Description
Basic Info.
Model NO. PHW-300H Gross Wieght 1250 Kg Colour Jp Standard or Custom Delivery Within 30 Days When Confirm The Order Transport Package Packed in Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/MonthProduct Description
Fan Blade Balancing Machine (PHW-300)
Horizontal Balancing Machine
Universally applicable through modular design
Safe handling through economic design concept
Full range of safety equipment for all protection classes
Easy change-over to different rotors
Production Description:
Special designed brackets can effectively transmit mechanical forceThe durable and reliable sensor possesses high sensitivity
The permanent calibration brings high accuracy
Driven by universal coupling,transmit the power steadily
Applicable to rotors which can't be driven by belt or need large power

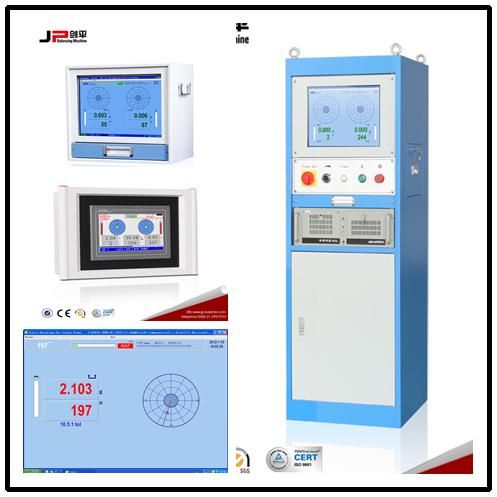

Advanced electrical measuring system and friendly man-machine interface
Special Features:The measuring unit employs JP-380 Micro- computer Electric Measuring Instrumentation newly developed by ourselves with piezoelectric transducer as electromechanical sensor. The measuring unit can show rotating speed, measured value, and phase position intuitively with options of six support modes available while the piezoelectrical sensor possesses a large capacity of output, small volume and high stability.
Range of Application:Fan Blade Balancing Machine(PHW-300) is also mainly used in checking the balance of rotatable bodies such as motors, spindles of machine tools,animal fan blade,blower,clinopodiums,centrifuges,pump impeller.drying cylinder.ceramic machinery,rollers,rubber sticks,etc.. Driven by universal joints, and it can offer us a variety of rotation speed,with features of high precision,easy to be operated and high efficiency,etc..
Production Parameters:
Technical data at a glance | PHW-300 |
Mass Scope of Workpiece (kg) | 300 |
Max Diameter of Workpiece (mm) | 1200 |
Distance Between Two Support Bearings (mm) | Min:60 |
Journal Diameter Scope of Workpiece (mm) | 20~180 |
Max Distance between Driving Flange and Right Bearing Support (mm) | 1500 |
Rotation Speed of the Main Axis (r/min) | 600/1095 Stepless speed regulation |
Motor Power (kw) | 3 Frequency conversion |
Torque of Universal Joint Shaft (N.m) | 60 |
Min Achievable Residual Unbalance Amount (emar) | ≤ 1g. mm/kg |
