• Model NO.：PHW-10000
• Gross Weight：5000 Kg
• Brand Name：Jp
• Place of Origin：Shanghai, China
• Delivery：25days
• Transport Package：Fumigated Wood Box
• Specification：ISO9001: 2008 CE SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHW-10000 Gross Weight 5000 Kg Brand Name Jp Place of Origin Shanghai, China Delivery 25days Transport Package Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/Month

Product Description

Horizontal Balancing Machine for Fan Industry (PHW-10000)

Production Description:

Special designed brackets can effectively transmit mechanical force
The durable and reliable sensor possesses high sensitivity
The permanent calibration brings high accuracy
Driven by universal coupling,transmit the power steadily
Applicable to rotors which can't be driven by belt or need large power
Advanced electrical measuring system and friendly man-machine interfaceSpecial Features:

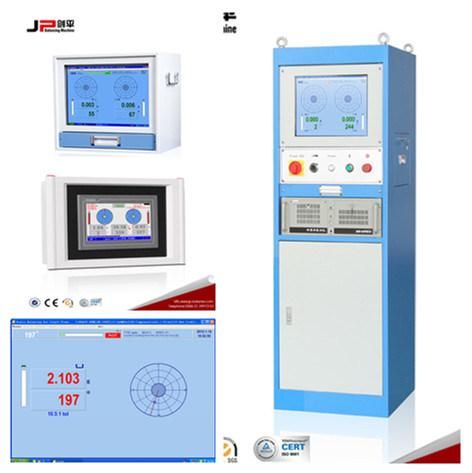

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Range of Application:

This balancing machine is mainly used in checking the balance of rotatable bodies such as good-sized and medium-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by gear box universal coupling , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc

Production Parameters:

Technical data at a glance	PHW-3000	PHW-5000	PHW-7500
Mass Scope of Workpiece (kg)	3000	5000	7500
Max Diameter of Workpiece (mm)	2400	2400	2800
Distance Between Two Support Bearings (mm)	Min:320	Min:320	Min:320
Journal Diameter Scope of Workpiece (mm)	40~380	40~380	40~380
Max Distance between Driving Flange and Right Bearing Support (mm)	1800	2500	2500
Rotation Speed of the Main Axis (r/min)	133,225,396,634, 970 +Stepless speed regulation	192,325,571,915, 1400 +Stepless speed regulation	192,325,571,915, 1400 +Stepless speed regulation
Motor Power (kw)	7.5 Frequency conversion	15 Frequency conversion	22 Frequency conversion
Torque of Universal Joint Shaft (N.m)	700	1250	1250
Min Achievable Residual Unbalance Amount (emar)	≤ 1g. mm/kg	≤ 1g.mm/kg	≤ 1g. mm/kg

After Sale Service:
Professional engineer and application specialists respond to your requests efficiently
Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer
Follow up the case, record the entire process. Solution will be provide with 24 hours
Meanwhile, the problem complaint will be reported to QC department
QC will find defect from which department, who is in charge to identify responsibility
Collecting and record customer respond, suggestion, requirement

Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.

About Us:
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. Is a professional manufacturer of dynamic balancing machine, which is high-tech technology enterprises of Optical-electro-mechanical Integration,

There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
Warmly welcome to visit our Factory!
Our website:shjpbalancer.en.made-in-china.com
