Optimal Design Brake Drum Balancing Machine (PHLD-100)
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.- Maxcapacity:<1000KN
- Accuracy Grade:0.5
Base Info
- Model NO.:PHLD-100
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
- Control:Computer Control
- Weight:500-1000Kg
- Power Source:AC380V
- Length:1400 Mm
- Width:1250 Mm
- Height:1600 Mm
- Gross Weight:1050 Kg
- Transport Package:Packed in Fumigated Wood Box
- Specification:ISO. CE. SGS
- Trademark:JP
- Origin:Shanghai China
- HS Code:903110009
- Production Capacity:1000 Sets,Month
Description
Basic Info.
Model NO. PHLD-100 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 500-1000Kg Power Source AC380V Length 1400 Mm Width 1250 Mm Height 1600 Mm Gross Weight 1050 Kg Transport Package Packed in Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 903110009 Production Capacity 1000 Sets/MonthProduct Description
Optimal design Brake Drum Balancing Machine (PHLD-100)Production Description

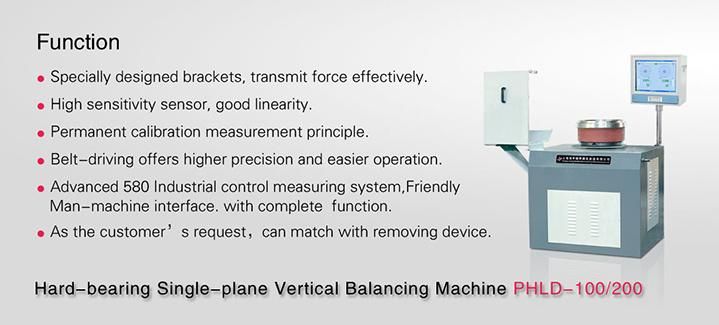

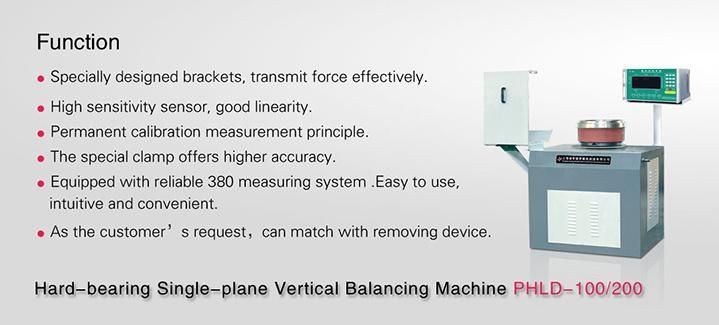

Specially designed, solid brackets can effectively transmit mechanical force
Durable and reliable sensor possesses high sensitivity and good linearity
Permanent calibration brings high accuracy
Special clamp offers higher accuracy and easier operation
. Advanced electrical measuring system and friendly man-machine interface
As the customer's request, the de-weighting system can be equiped
Delivery inspection
Range of Application

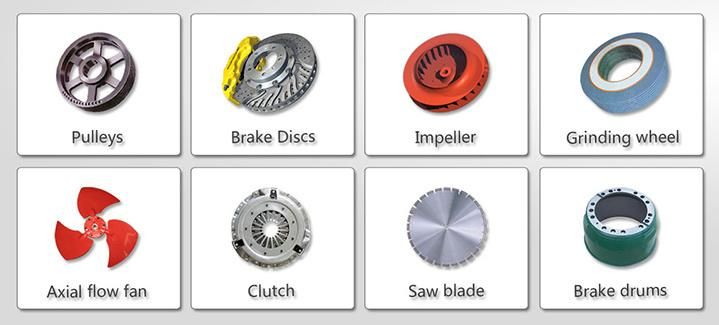

The balancing machine is a new and widely-used device which has been available and developed in recent years. It is mainly applied to balance all kinds of discoid parts, such as fan blade, brake disk, brake drum. Saw blade. Clutch, belt pulley, chuck, pump impeller, flywheel, grinding wheel, range hood fan, brake, torque converter, tool etc. High speed and precision are advanages of this balancing machine.
According to user's requirement, The machine can install de-weight device
Factory Outlook
Special Features
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.
Certificates
Production Parameters
Technical data at a glance | PHLD-100 | PHLD-200 |
Max Mass of Workpiece ( with clump) (kg) | 100 | 200 |
Max Diameter of Workpiece (mm) | 600 With hood 1000 Without hood | 600 With hood 1000 Without hood |
Height of Workpiecemm | 200 | 200 |
Rotation Speed of Main Axis(r/min) | ~1080 | ~1080 |
Motor Power(kw) | 3variable-frequency | 4variable-frequency |
Min Achievable Residue Unbalace Amount (emar ) | 5g. mm/kg | 5g. mm/kg |
