• Model NO.：PHQ-50
• Length：1100 Mm
• Width：950 Mm
• Height：1350 Mm
• Gross Weight：450 Kg
• Place of Origin：Shanghai, China
• Brand Name：Jp
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：903110009
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHQ-50 Length 1100 Mm Width 950 Mm Height 1350 Mm Gross Weight 450 Kg Place of Origin Shanghai, China Brand Name Jp Transport Package Packed in Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 903110009 Production Capacity 1000 Sets/Month

Product Description

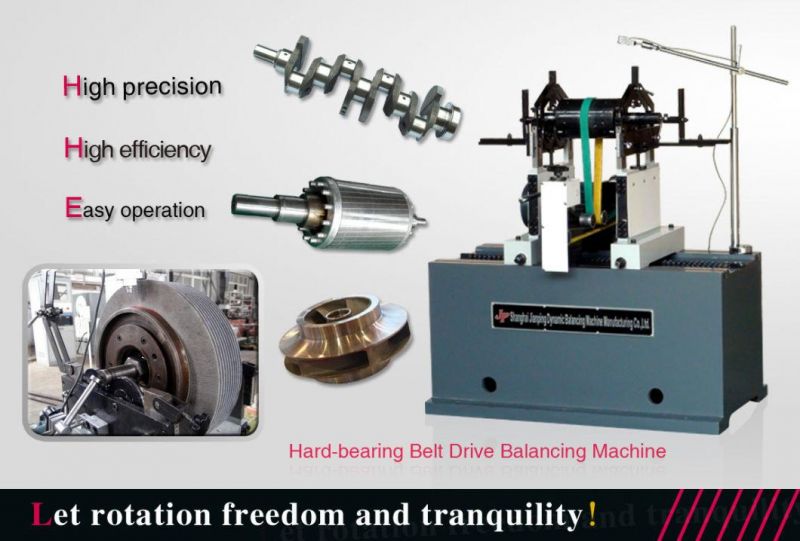

Dynamic Balancing Machine for Crankshaft(PHQ-50)

Production Description:

1) Specially designed brackets transmit mechanical force with low vibration damping
2) Durable and reliable sensor possesses good linearity
3) Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4) Belt-driving offers higher precision and easier operation
5) Advanced electrical measuring system and friendly man-machine interface
6) Modular design offers a wide range of application

Special Features:

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Range of Application:

This balancing machine is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency

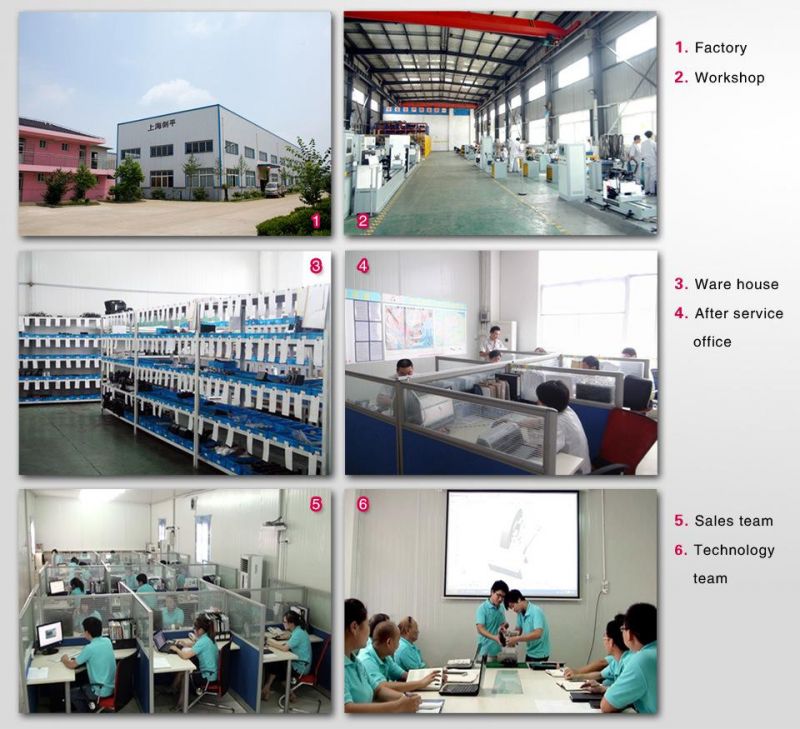

Factory Outlook:




Certificates:




Production Parameters:

Technical data at a glance	PHQ-50
Max Mass of Workpiece (kg)	50
Max Diameter of Workpiece (mm)	700
Distance between Two Support Bearings (mm)	80--700
Journal Diameter Scope of Workpiece (mm)	8~80
Diameter Scope of Driving Belt (mm)	18~200
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min)	700/1050 Stepless speed regulation
Motor Power (kw)	0.75 Frequency conversion
Min Achievable Residual Unbalance Amount (emar)	0.5g. mm/kg
