• Model NO.：HD-E808
• Warranty Period：12 Months
• Certificate：ISO9001: 2008
• Design Criteria：ASTM, JIS, Cns, ISO
• Delivery：15 Days After Order Confirmation
• Model：HD-E808-60
• Inner Box Size (L*W* H)：60* 40* 45 Cm
• Outside Box Size(L* W*H)：107* 60* 118 Cm
• Temperature Range：35 Centigrade Degrees to 55 Centigrade Degrees
• Brine Temperature：35 Centigrade Degrees+-1 Centigrade Degrees
• Lab Volume：108L
• Transport Package：Strong Wooden Case
• Specification：Cns: 3627, 3385, 4159; JIS: D0201, ASTM B117
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9031809090
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-E808 Warranty Period 12 Months Certificate ISO9001: 2008 Design Criteria ASTM, JIS, Cns, ISO Delivery 15 Days After Order Confirmation Model HD-E808-60 Inner Box Size (L*W* H) 60* 40* 45 Cm Outside Box Size(L* W*H) 107* 60* 118 Cm Temperature Range 35 Centigrade Degrees to 55 Centigrade Degrees Brine Temperature 35 Centigrade Degrees+-1 Centigrade Degrees Lab Volume 108L Transport Package Strong Wooden Case Specification Cns: 3627, 3385, 4159; JIS: D0201, ASTM B117 Trademark Haida Origin Dongguan, China HS Code 9031809090 Production Capacity 150 Sets/Month

Product Description

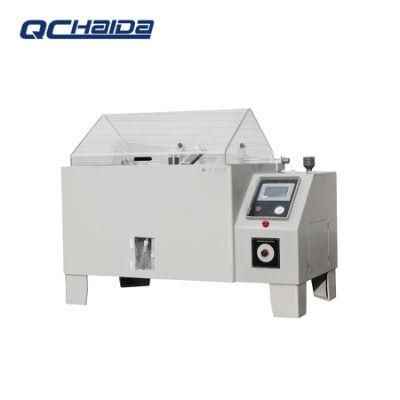

                   Universal Corrosion Resistance Testing Machine Salt Spray Corrosion Chamber

Product introduction:
The salt spray fog testing machine is a standardized test method used to check corrosion resistance of coated samples. Coatings provide corrosion resistance to metallic parts made of steel, zamak or brass. Since coatings can provide a high corrosion resistance through the intended life of the part in use, it is necessary to check corrosion resistance by other means.

Salt spray fog testing machine is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time.

Test duration depends on the corrosion resistance of the coating; The more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion.

Salt spray testing is popular because it is cheap, quick, well standardized and reasonably repeatable. There is, however, only a weak correlation between the duration in salt spray test and the expected life of a coating, since corrosion is a very complicated process and can be influenced by many external factors. Nevertheless, salt spray test is widely used in the industrial sector for the evaluation of corrosion resistance of finished surfaces or parts.

STANDARD FEATURES

Model	HD-E808-60
Inner Box Size (L× W× H)	60× 40× 45 cm
Outside Box Size(L× W×H)	107× 60× 118 cm
Equipment Material	Both inside & outside shell of corrosion tester adopt imported P. V. C rigid plastic board, and tank cover uses imported transparent  P. V. C. rigid plastic board
Temperature Range	35  centigrade degrees to 55 centigrade degrees
Temperature Fluctuations	≤ ± 0.5 centigrade degrees
Temperature Uniformity	≤ ± 2 centigrade degrees
Temperature Precision	± 1 centigrade degrees
Test Chamber Temperature	Salt Spray Method (NSS ACSS)35± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 50± 1 centigrade degrees
Saturated air Barrel Temperature	Salt Spray Method (NSS ACSS)47± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 63± 1 centigrade degrees
Brine Temperature	35 centigrade degrees± 1 centigrade degrees
Spray Quantity	1.0~2.0 ml / 80cm2 / hr
PH	Salt Spray Method (NSS ACSS6.5~7.2)   Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume	108L
Brine Tank Capacity	15L
Power	AC220V, 10A
Multiple Safety Protection Devices	Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories	Testing Salt/ Measuring tank/ Equipment  each 1 set

Product images:
