• Model NO.：YES-1000
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：500-1000Kg
• Power Source：AC 380V ,22V
• Oil Cylinder Position：Under
• Color：Gray, White , Blue,Green or Customized
• Safe：Protection Net
• Sample：Concrete or Cement or Stone
• Resolution：0.01kn
• Distance Between Pressure Plate：350mm
• Distance Between Columns：280mm
• Pressure Plate：250*250mm
• Testing Space  Regulating Way：Manual Ball Screw Adjust
• Control Way：Manual Control Load Way
• Test Range：4% ~100%Fs
• Transport Package：Standard Sea Shipping Case
• Specification：535X1110X1420mm
• Trademark：HST or OEM
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Sets,Month

YES-1000YES-2000YES-3000Max. load1000kN2000kN3000kNClass1 class1 class1 classTesting space
regulating wayManual ball screw adjustControl wayManual control load wayOil source control cabinet structure formOne-piece bench oil source control cabinetRange of test force4% ~100%FSIndicating value accuracy±1%Piston route50mm50mm50mmMax piston speed//50mm/minRange between the working tables320mm320mm320mmPressure plates size250*250mm (Can be customized)DisplayLCDPower supply2.1KW   AC 380V

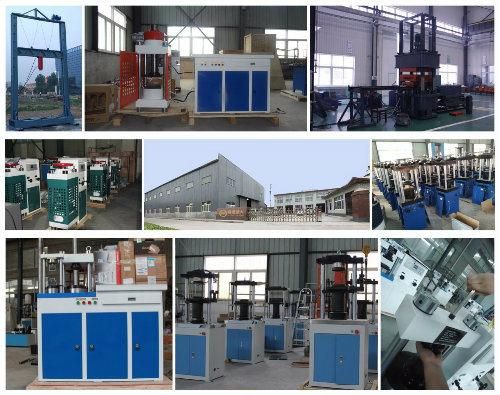

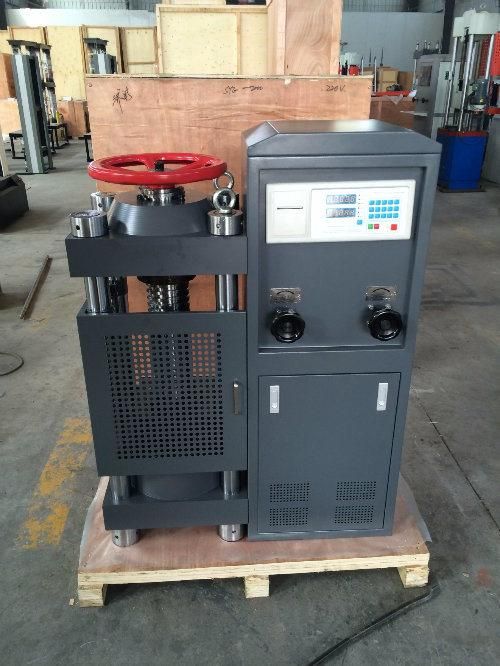

Real pictures

Other computer control model:

Company information:


5. Our Business Scope
A: Universal Testing Machine: Electronic/hydraulic    Single column/door tye WDS/WDW/WE/WEW/WAW
B: Impact Testing Machine: JB-300B/500B JBS-300B/500B  150J to 750J
C: Compression Testing Machine: YES-2000/3000/3000D  YAW-300
D: Hardness Testing Machine: Rockwell, Brinell, Vicker, Universal, Portable-leeb/webster/shore
E: Force Gauge/Tension Meter: NK DTF HF ATG etc.
F: Friction/Wear  Resistance Tester: MMW  MRH   MMU
G: Metallographic Equipments:cutting, mounting, polishing and grinding machine, microscopes.
