• Model NO.：WDW-600E
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Delivery Time：60 Working Days After Get Tt Payment
• Color：White,OEM
• Certifications：Ce and ISO
• Standard：ASTM, GB, ISO, DIN
• Sample Clamp：Tensile and Compression Clamp
• Test Force：600kn
• Tensile Space(mm)：1000
• Load Resolution：1,300000
• Structure：Four-Column Floor or Desk Model
• Cover：All Aluminum Alloy
• Transport Package：Standard Export Packing
• Specification：1880*1220*(2970,3400)
• Trademark：HST OR OEM
• Origin：China
• HS Code：9024101000
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. WDW-600E Accuracy Grade 0.5 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 500-1000Kg Power Source AC220V Oil Cylinder Position No Delivery Time 60 Working Days After Get Tt Payment Color White/OEM Certifications Ce and ISO Standard ASTM, GB, ISO, DIN Sample Clamp Tensile and Compression Clamp Test Force 600kn Tensile Space(mm) 1000 Load Resolution 1/300000 Structure Four-Column Floor or Desk Model Cover All Aluminum Alloy Transport Package Standard Export Packing Specification 1880*1220*(2970/3400) Trademark HST OR OEM Origin China HS Code 9024101000 Production Capacity 10 Sets Per Month

Product Description

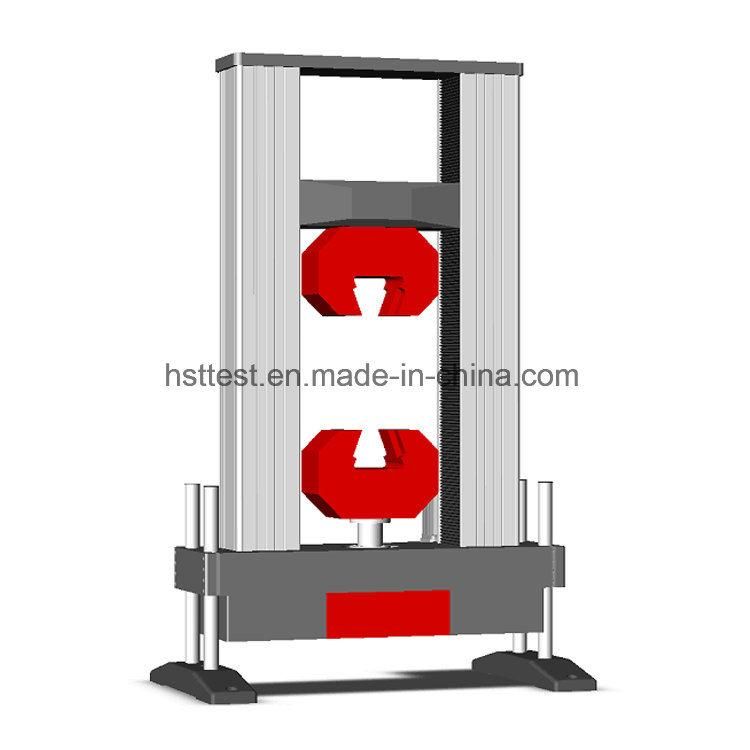

600KN Steel Strand Electronic universal tensile strength testing equipment
1.Application:It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.2.Standards:ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,etc.3.Specifications:

Model	WDW-600E
Max. Load(kN)	600
Load accuracy	Class 0.5 Class 0.5
Load range	0.2%~100%F·S
Load resolution	1/300000
Resolution of deformation	0.04um
Accuracy of displacement	Within±0.5%of indicating load
Resolution of displacement	0.01mm
Test speed(mm/min)	0.05-200 stepless arbitrary setting
Speed accuracy	Within ±0.5% of set speed
E-Tensile space(mm)	1000 (can be customized)
E-Compression space(mm)	850 (can be customized)
D-Test width(mm)	800 (can be customized)

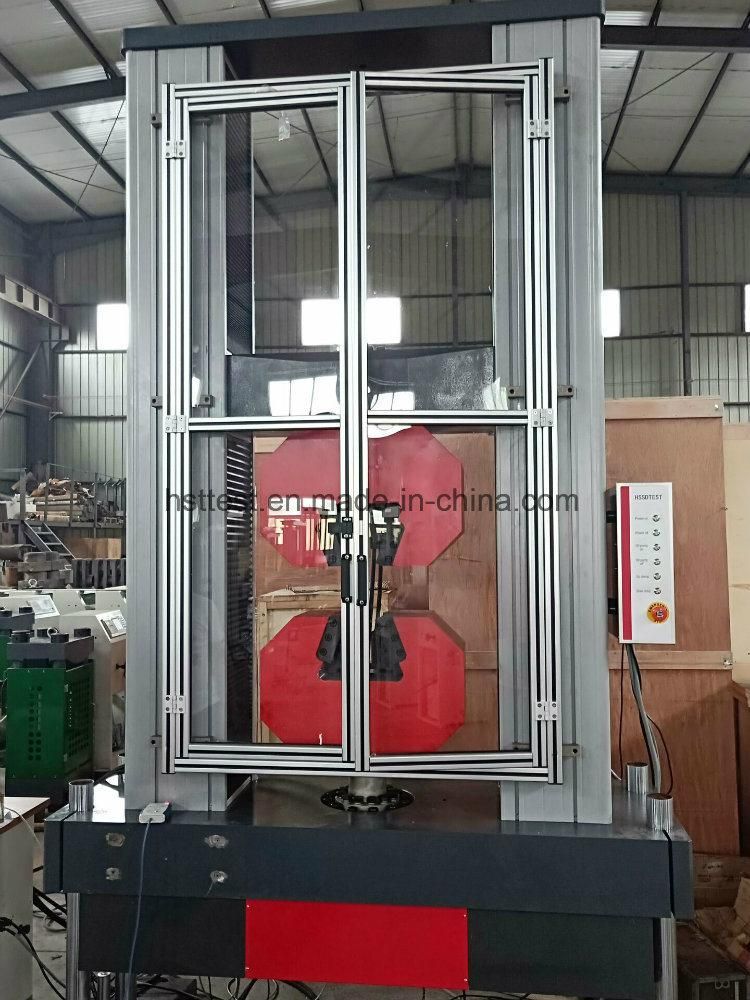

Machines details show:

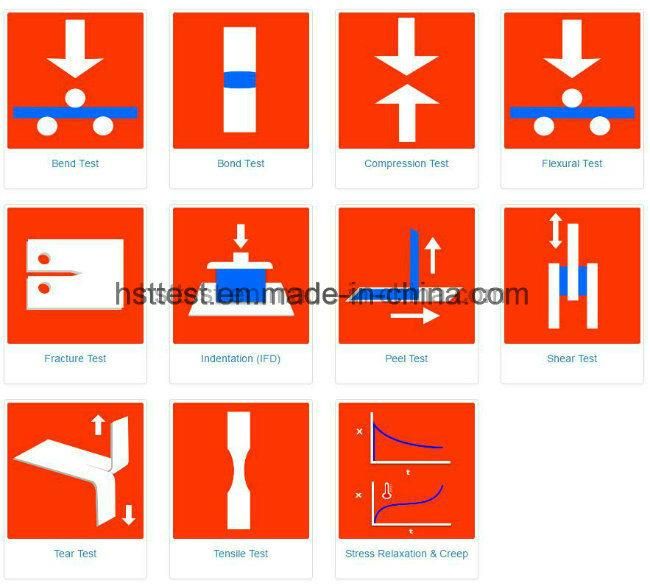

With different fixtures, this machine could attache different tests:


Customers and partners all over the world:



HST GROUP machines scope:
A: Universal Testing Machine :Electronic/hydraulicSingle column/door tye WDS/WDW/WE/WEW/WAW series
B: Impact Testing Machine: JB-300B/500B JBS-300B/500B  150J to 750J
C: Compression Testing Machine: YES-2000/3000/3000D  YAW-300
D: Hardness Testing Machine: Rockwell, Brinell, Vicker, Universal, Portable-leeb/webster/shore
E: Force Gauge/Tension Meter: NK DTF HF ATG etc.
F: Friction/Wear  Resistance Tester: MMW  MRH   MMU
G: Metallographic Equipments:cutting machine, polishing and grinding machine, mounting machine, microscopes.
