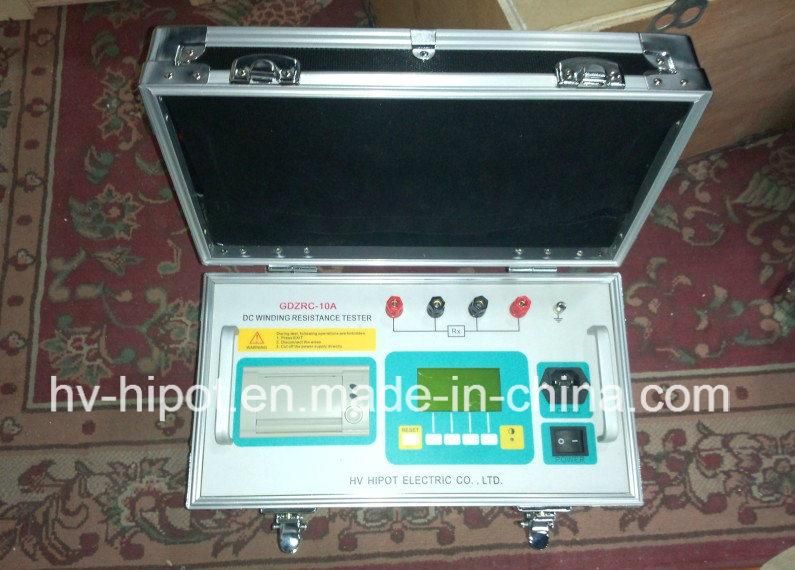

GDZRC series DC Winding Resistance Tester (Single-phase)
HV Hipot Electric Co., Ltd.- Function：Storage
- Display：Digital
- Usage：DC Resistance Tester
- Type：Resistance Tester
- Environment：Room Temperature
- Warranty：With Warranty
Base Info
- Model NO.：GDZRC series
- Power Source：AC 85V-265V
- Weight：0-10Kg
- Installation：Direct Connected
- Customized：Customized
- Power input：AC 220V±22V, 50Hz±2 Hz
- Testing current：1mA 10mA 1A 5A
- Measuring range：1ohm-20K ohm(1mA), 1ohm-2K ohm
- Accuracy：±0.2% of full range ±2digit
- Data storage：255PCS
- Display mode：4 1,2 digit
- Max.resolution：0.1μΩ
- Transport Package：Wooden Case
- Specification：SGS
- Trademark：HV Hipot
- Origin：Wuhan, China
- HS Code：9030332000
- Production Capacity：1000PCS,Year
Description
GDZRC-50AMax. test current: 50A Max.resolution: 0.1μΩ;
Measuring range: 10mΩ - 8Ω(2.5A), 1mΩ - 4Ω(5A), 1mΩ -2 Ω(10A), 1mΩ - 1Ω(20A),1mΩ - 400mΩ(50A) Accuracy: ±0.2%(±2digits)
Measuring range: 10mΩ - 8Ω(2.5A), 1mΩ - 4Ω(5A), 1mΩ -2 Ω(10A), 1mΩ - 1Ω(20A),1mΩ - 400mΩ(50A)
