• Model NO.：STZJY-6
• Weight：100-500Kg
• Power Source：AC220V
• Specimen：Soil
• Area of Soil Sample：30cm2
• Lever Ratio：1:12
• Vertical Loading：50,100,200,300,400(Kpa)
• Max. Horizontal Loading：1.2kn
• Product Name：LCD Display Electric Strain Direct Shear Apparatus
• Accepts Specimens：61.8X20mm
• Variable Speed：0.01 -2.99mm,Minute
• Delivery Date：10days
• Minimum：1 Piece
• Transport Package：Standard Wooden Packing
• Specification：1000x680x1300mm
• Trademark：YuFeng
• Origin：China
• HS Code：9031809090
• Production Capacity：5000pieces,Year

Basic Info.

Model NO. STZJY-6 Weight 100-500Kg Power Source AC220V Specimen Soil Area of Soil Sample 30cm2 Lever Ratio 1:12 Vertical Loading 50,100,200,300,400(Kpa) Max. Horizontal Loading 1.2kn Product Name LCD Display Electric Strain Direct Shear Apparatus Accepts Specimens 61.8X20mm Variable Speed 0.01 -2.99mm/Minute Delivery Date 10days Minimum 1 Piece Transport Package Standard Wooden Packing Specification 1000x680x1300mm Trademark YuFeng Origin China HS Code 9031809090 Production Capacity 5000pieces/Year

Product Description

Production Description:

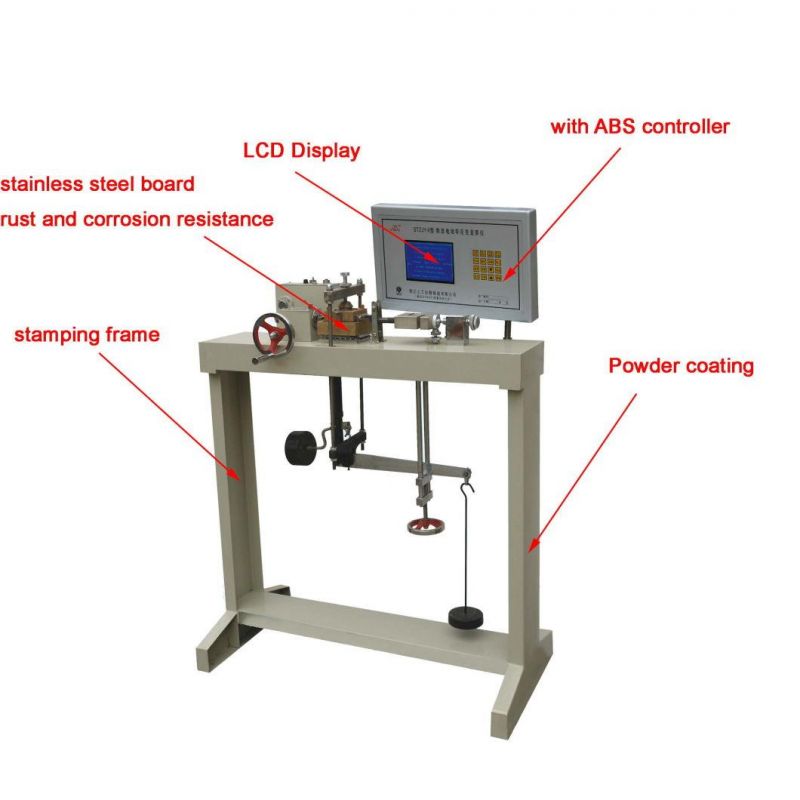

STZJY-6 LCD Display Electric Strain Direct Shear Apparatus

Application:
This apparatus is used to test resisting shear strength of soil specimen. The direct shear
apparatus is driven by a stepper motor and controlledby a microprocessor system, with load cell and linear electronic transducers to operate independently to perform standard or cyclic tests, programmable by keyboard input and obtaining all data concerning load, horizontal displacements from the display.

Specification:

1. LCD display
2. Accepts specimens 61.8x20mm
3. Area of soil sample: 30cm2
4. Lever ratio:1:12
5. Vertical Loading:50, 100, 200, 300, 400(KPa)
6. Max. horizontal loading:1.2kN
7. Variable speed, 0.01 to 2.99mm/minute
8. AC220V±10%
9. Packing measurement: 1000x680x1300mm,
weight: 215kg


Display	LCD dispaly
Accepts specimens	61.8x20mm
Area of soil sample	30cm square
Lever ratio	1:12
Vertical loading	50,100,200,300,400(kpa)
Max.horizontal loading	1.2kn
Variable speed	0.01 to 2.99mm/minute
Voltage	AC220V+-10%
Packing measurement	1000X680X1300MM
Weight	215kg

Why choose us:

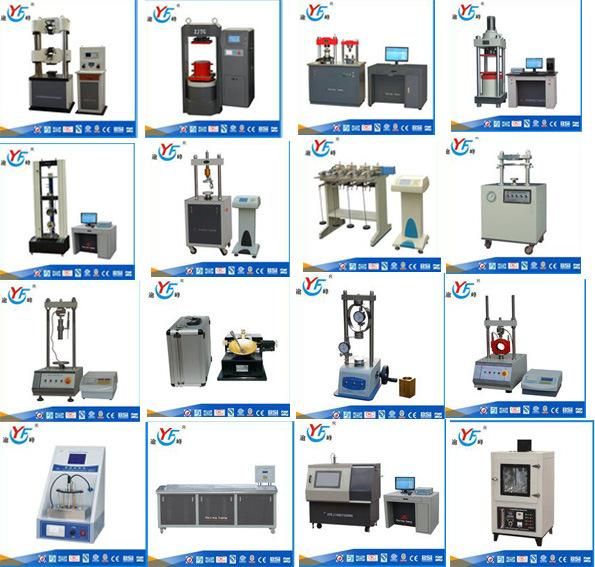

a.Full range products, offer you one-stop purchase, save your time, save your delivery cost.


b. Good quality control



c.Competitive price, save your money.

d. We are factory

FAQ:
1.Are you factory?

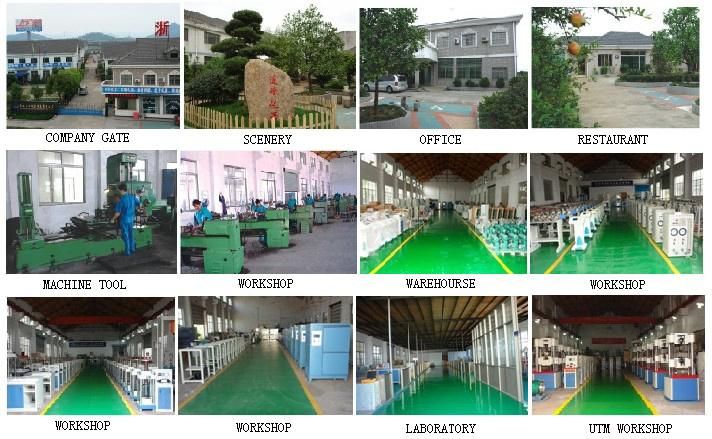

    Yes,we are factory ,35years focusing on test instruments field.
2.Delivery Time?
    10-15working days after receiving full payment.
3.What 's your payment terms?
     We accejpt T/T,L/C or Western Union.
4.What's your terms of trade?
     We accept EXW, FOB, CNF, CIF, AND SO ON.
5.Warranty?
     12months.
6.Do you have any exhibitions?
    Yes. We have many exhibitions in domestic and abroad. If you come to china, pls contact           with us, we will inform you the newest  booth No.
7.Our products need to be tested by a special testing machine, do you accept customized?
    Sure. We accept all chanllges.

Send us an inquiry and we will contact you soon!
If you want to know more,pls view our official website:cnzjtg.en.made-in-china.com
