• Model NO.：YPOD-072
• Loading Method：Dynamic Load
• Display：Digital
• Control：Cotroller
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：N,a
• Inner Size：400*450*400mm
• External Size：750*1100*550mm
• Volume：72 Liters
• Temp. Range：Rt+10 Degrees~200 Degrees
• Interior Chamber Material：SUS#304 Stainless Steel Plate
• Color：Ivory,Blue,Other
• Indication Resolution：0.1degree , 1 Degree
• Heat up Time：30 Mins
• Exterior Chamber Material：Cold Rolled Plate + Powder Coated
• Transport Package：Strong Wood Carton
• Specification：CE, ISO, TUV, SGS certification
• Trademark：Yuanyao
• Origin：China
• HS Code：9032100000
• Production Capacity：100 Sets,Month

ModelYPOD-072YPOD-270YPOD-480YPOD-600YPOD-720YPOD-1000Inner chamber size
W×H×D(cm)40×45×4060×90×5080×100×60100×100×60120×100×60120×100×85Exterior chamber size W×H×D(cm)70×105×5590×160×65110×170×75130×170×75150×170×75150×100×100Temperature rangeRT +10ºC~200ºC (300ºC)Temp.humi.fluctuation±0.3ºCTemp.humi.uniformity±1ºCTemp.humi.reslution 0.1ºCHeating-up time30minExterior chamber materialCold rolled plate + Powder coatingInterior chamber materialSUS#304 Stainless steel (Use SUS#201 when max.temp.is below 200ºC)Insulation materialPU & fibergalss Wind circulationCooling fanHeating systemSUS#Stainless steel high-speed heaterControlling systemCAHO H961KV02 controller (Taiwan)Other componentsCable port(dia.50mm),control status indicator,loading shelf (2 pcs,position-adjustable)Safety protection deviceOver-heat protection circuit breaker, overload protection,overload indicator lampPower supplyAC 3 phase 380V 60/50HZCustomization serviceNon-standard or special requirements are all welcome

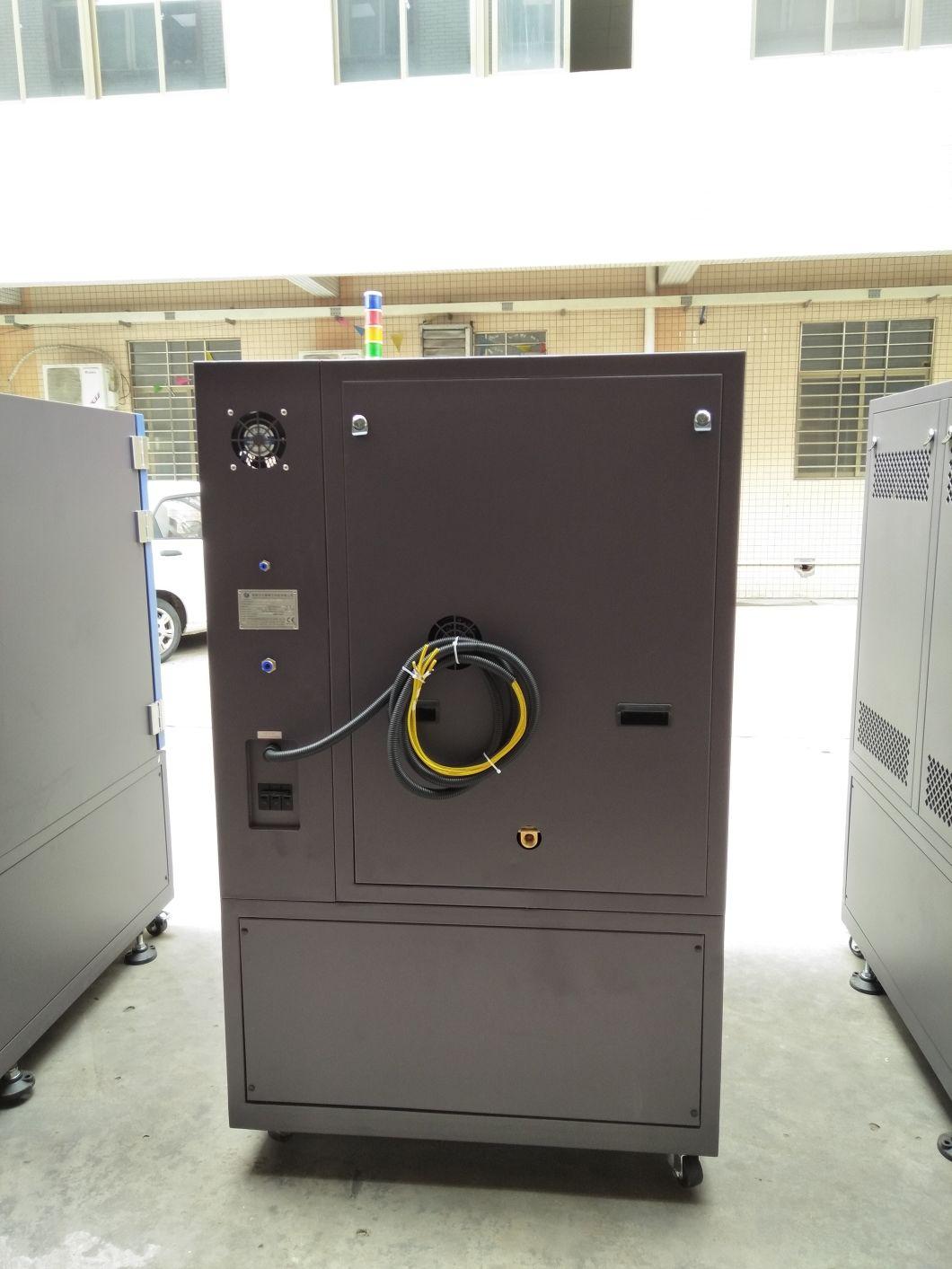

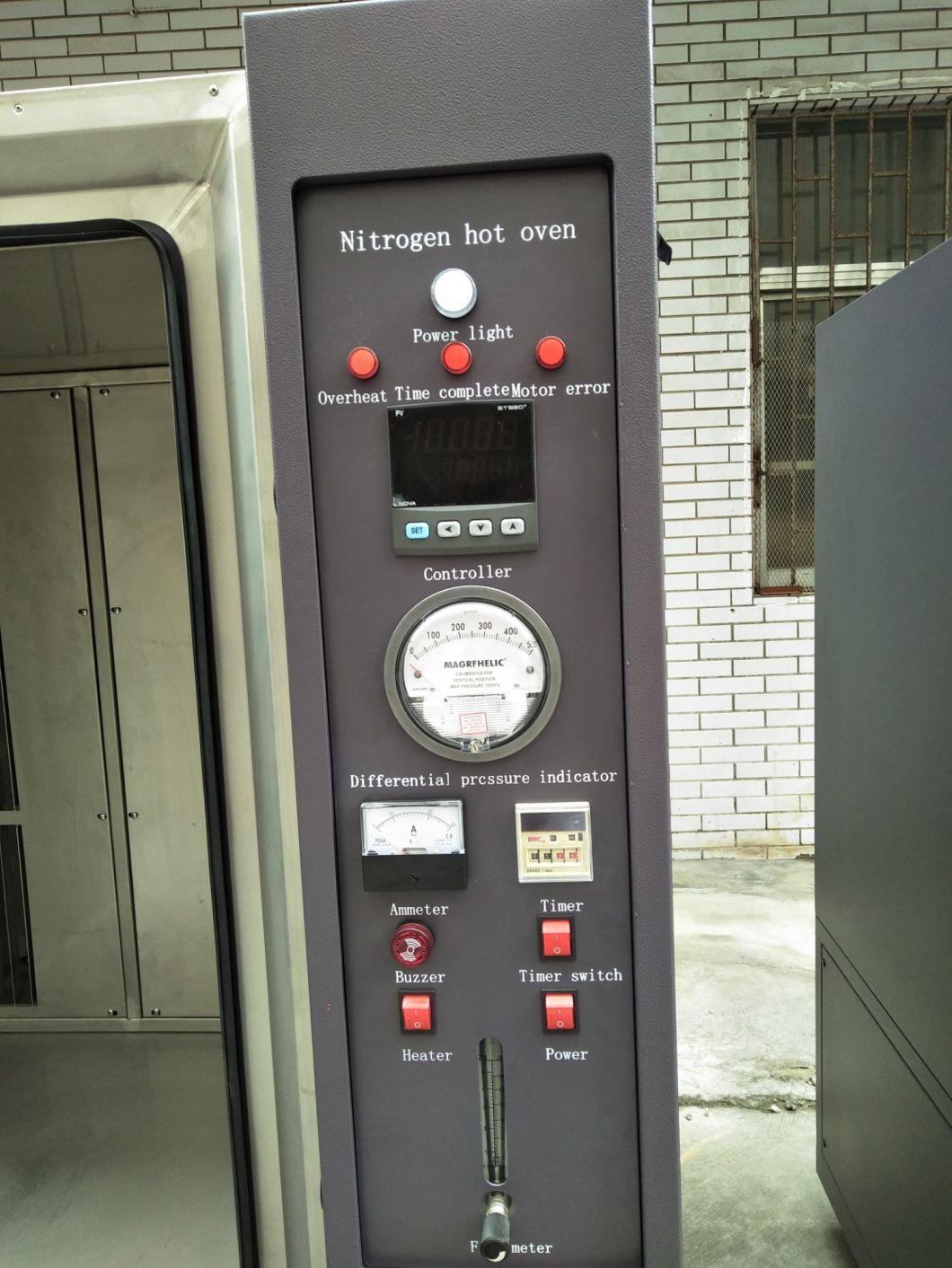

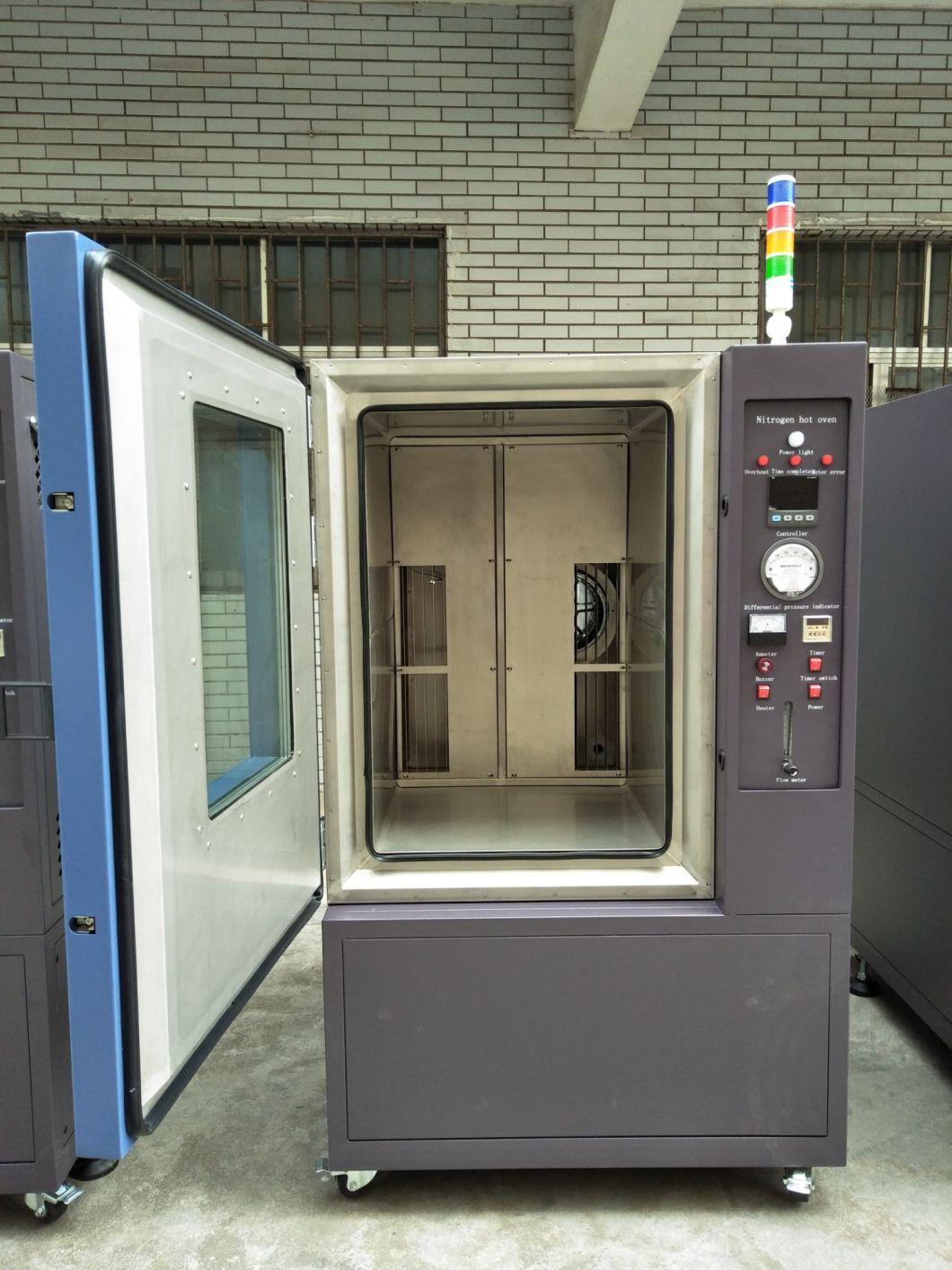

Product detail














Company profile






If you want to know more about nitrogen oven,please feel free to contact us.

Thank you for your reading !
